Integrated Wheel End (IWE): Installation

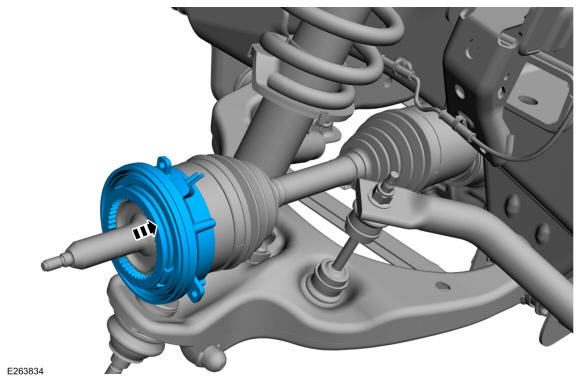

  1. NOTE: Do not dislodge the IWE seal spring when installing the IWE on halfshaft outboard end or component damage may occur.

    Install the IWE onto the halfshaft outboard end making sure the IWE splines line up to the outboard halfshaft splines.

    GFD544214Courtesy of FORD MOTOR COMPANY

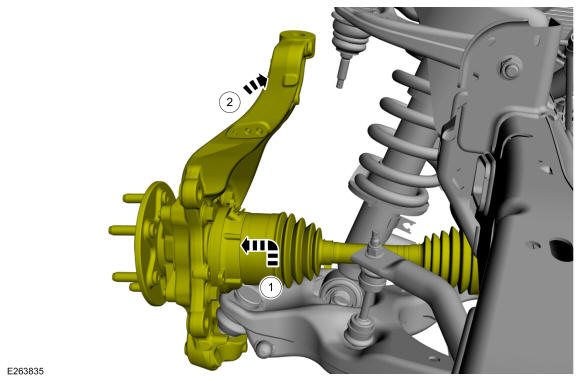

  2. NOTE: Allow the wheel knuckle to swing outward while keeping the halfshaft pushed inward.

    Once clearance is available, install the halfshaft outboard end into the wheel knuckle hub bearing.

    GFD544215Courtesy of FORD MOTOR COMPANY

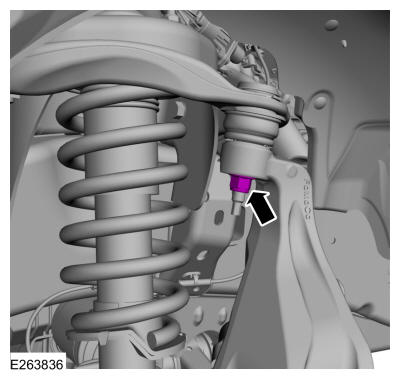

  3. Connect the upper ball joint and install a new nut.

    Torque:

    46 lb.ft (63 Nm)

    GFD544216Courtesy of FORD MOTOR COMPANY

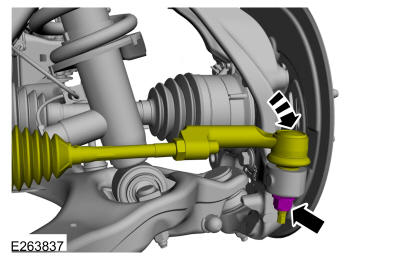

  4. Connect the tie rod and install a new nut.

    Torque:

    85 lb.ft (115 Nm)

    GFD544217Courtesy of FORD MOTOR COMPANY

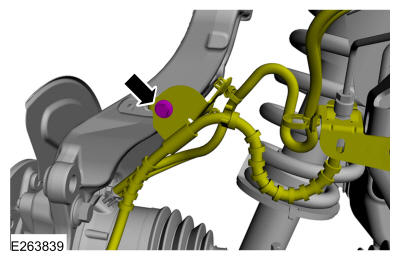

  5. Position the front brake flexible hose bracket and install the bolt.

    Torque:

    22 lb.ft (30 Nm)

    GFD544208Courtesy of FORD MOTOR COMPANY

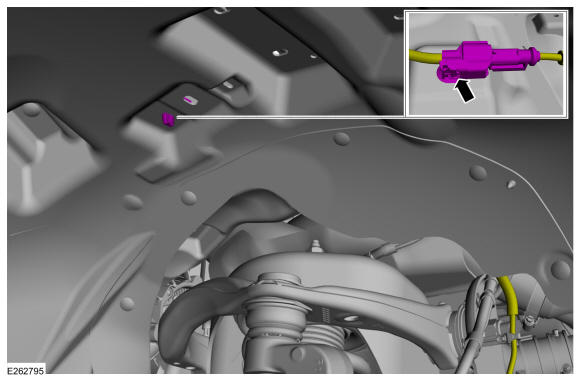

  6. Position the harness and connect the wheel speed sensor harness.
    GFD544207Courtesy of FORD MOTOR COMPANY

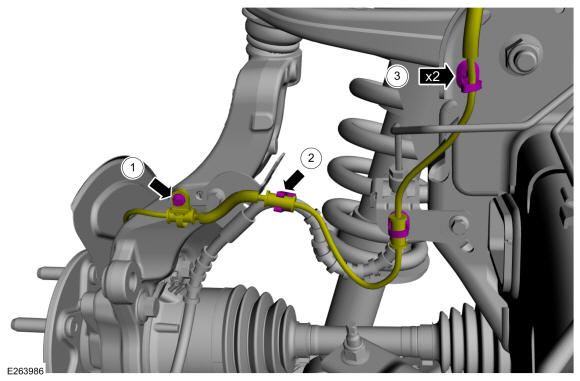

    1. Position the wheel speed sensor wire and clip the 2 wheel speed sensor wire retainers.
    2. Clip the wheel speed sensor wire to the brake hose.
    3. Install the wheel speed sensor wire bracket bolt.

      Torque:

      106 lb.in (12 Nm)

    GFD544206Courtesy of FORD MOTOR COMPANY

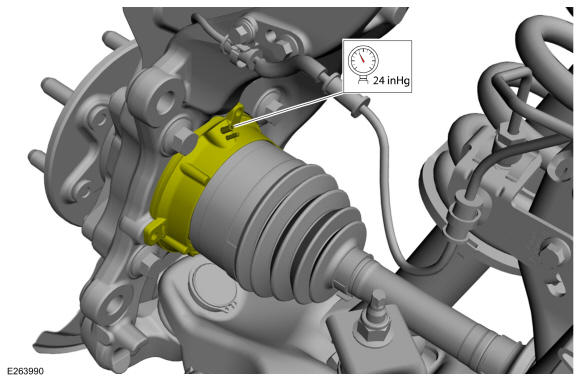

  7. Using a hand vacuum pump apply and hold 24 in Hg of vacuum to the IWE actuator through the large port on IWE to retract the actuator.
    GFD544218Courtesy of FORD MOTOR COMPANY

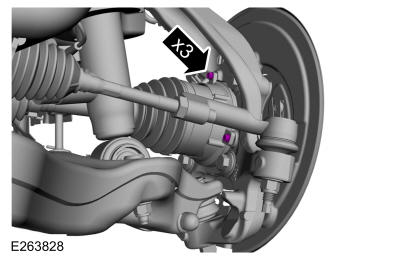

  8. Install the IWE-to-wheel knuckle retaining bolts.

    Torque:

    106 lb.in (12 Nm)

    GFD544204Courtesy of FORD MOTOR COMPANY

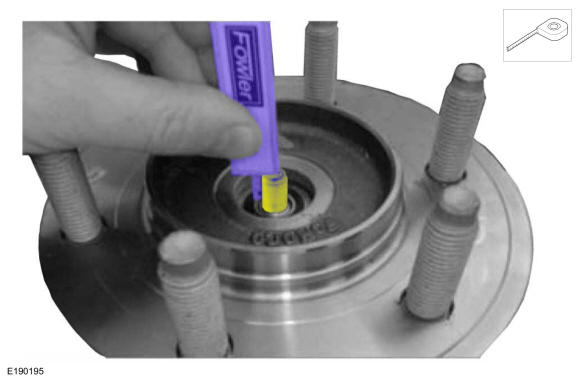

  9. NOTE: Measure the depth of the CV shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

    Measure the CV shaft threaded end to the inner bearing race.

    GFD544219Courtesy of FORD MOTOR COMPANY

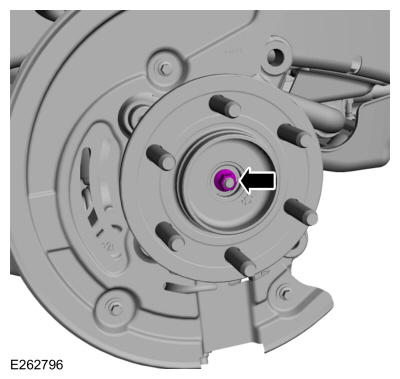

  10. NOTE: Verify the spline engagement by checking for spline lash before installing the wheel hub nut or component damage may occur.
    NOTE: With vacuum still applied to the IWE.

    • Install the new the axle nut.

      Torque:

      30 lb.ft (40 Nm)

    • Verify free rotation of the hub with no CV joint rotation. No clicking or grinding noise should be present.

    • Release vacuum and rotate bearing slightly to engage actuator (may hear single click when IWE system engages). Verify hub and CV joint rotate together.

    GFD544220Courtesy of FORD MOTOR COMPANY

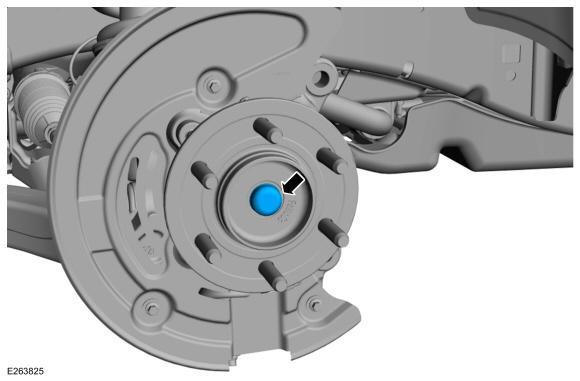

  11. NOTE: If the dust cap to bearing interface is damaged, damaged parts must be replaced.

    Install the dust cap.

    GFD544201Courtesy of FORD MOTOR COMPANY

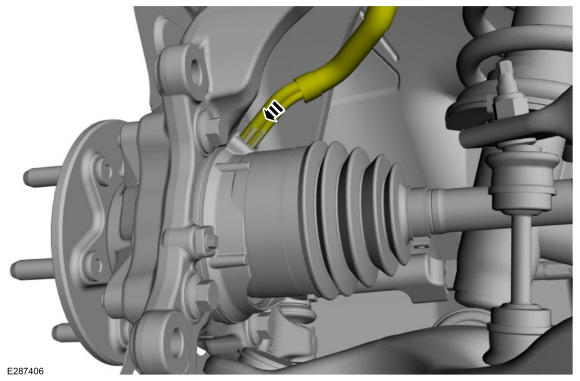

  12. Insert the vacuum tubes from the IWE.
    GFD544221Courtesy of FORD MOTOR COMPANY
  13. NOTE: If equipped with dynamic suspension.

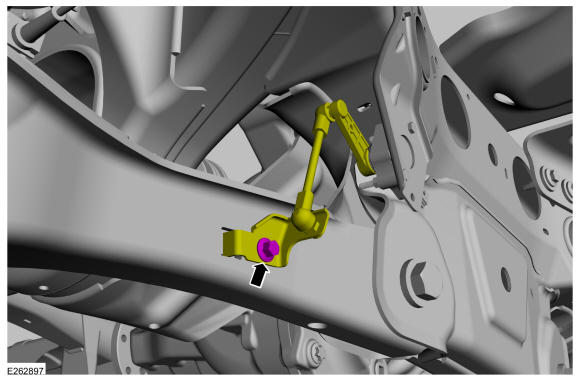

    Position the ride height sensor arm bracket and install the bolt.

    Torque:

    177 lb.in (20 Nm)

    GFD544222Courtesy of FORD MOTOR COMPANY
  14. Install the brake disc. Refer to: Brake Disc .
  15. NOTE: If equipped with continuous controlled damping (CCD) suspension.

    Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
