Head Up Display (HUD) Module Calibration
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 501-418 Calibration Target - NO STEP File Available | |
|---|---|
Adjustment
NOTE:
If it is necessary to cancel any calibration adjustment use the return button to cancel the current adjustment.
Positional calibration
- With brake pedal released, press the start button.
- Press and select HUD.
- Press and select HUD settings.
- The menu will appear in the message center and press OK.

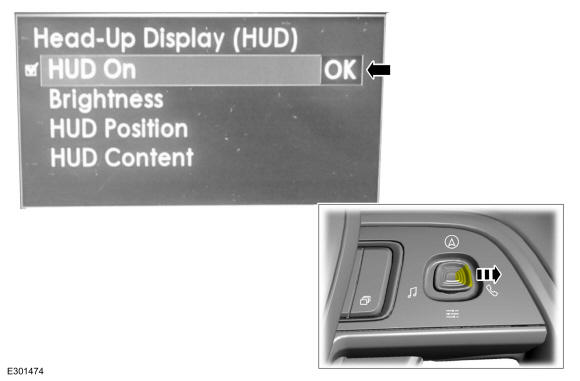

- Make sure the HUD is selected as ON.
- With the brake pedal pressed, start the vehicle.

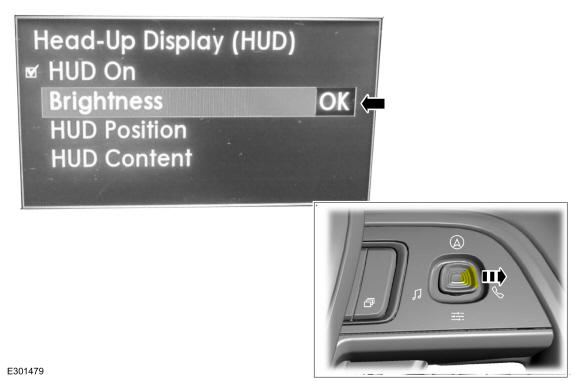

- Select the Brightness adjustment mode.

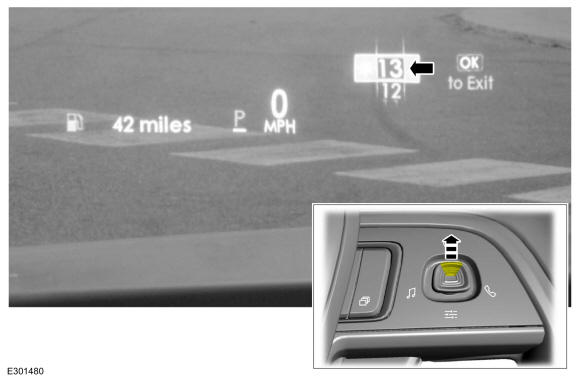

- Set the HUD brightness to 13 and press OK.

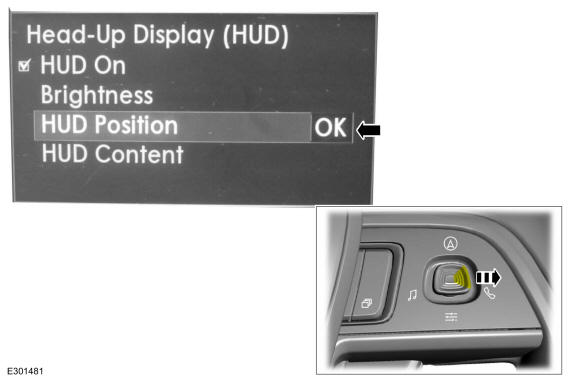

- Select the HUD position menu and press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal position adjustment feature.

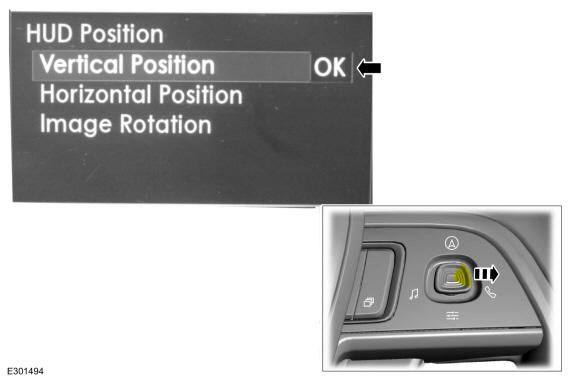

Select Vertical Position and press OK.

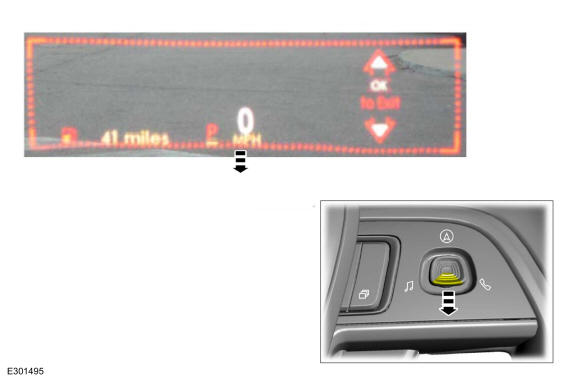

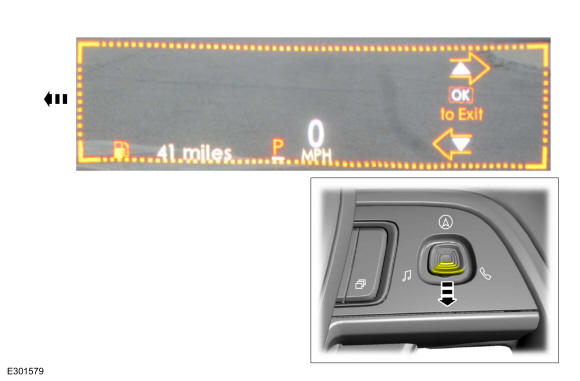

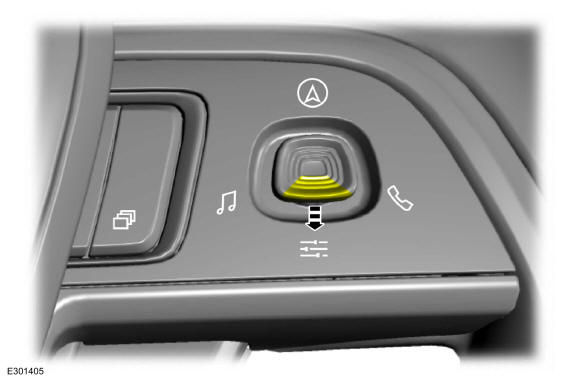

- Move the vertical setting to the lowest position by repeatedly selecting the down position on the selector switch.

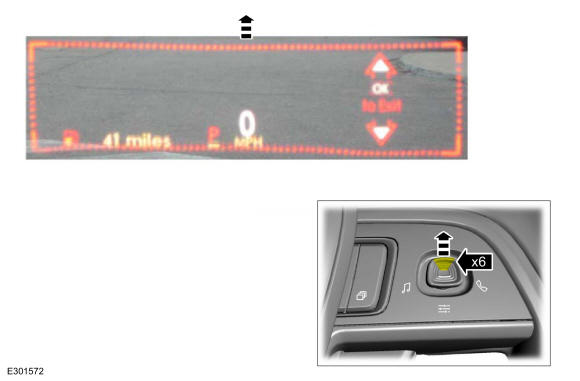

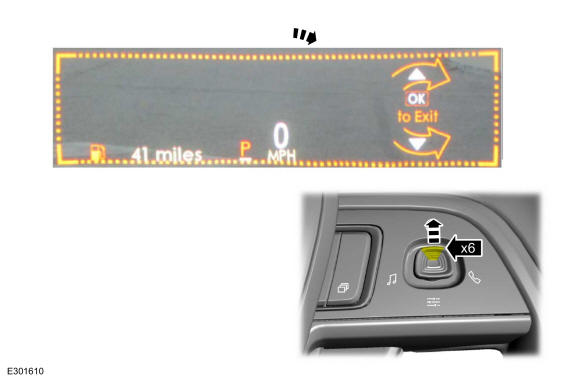

- Vertically center the HUD by selecting the up position on the selector switch 6 times.
- Press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal position adjustment feature.

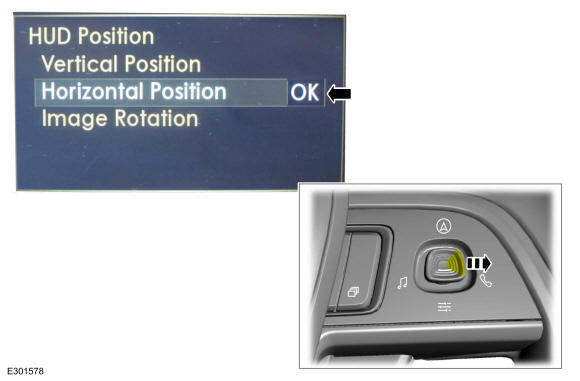

Select Horizontal Position and press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal position adjustment feature.
Move the horizontal setting to the leftmost position by repeatedly selecting the down position on the selector switch.
-
NOTE: Some vehicle lines are not equipped with the horizontal position adjustment feature.

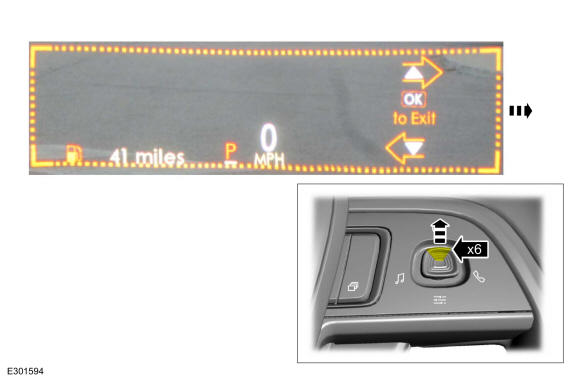

Horizontally center the HUD by selecting the up position on the selector switch 6 times.
- Press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal position adjustment feature.

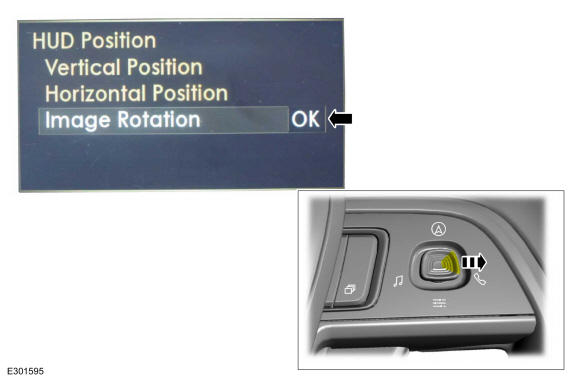

Select Image Rotation and press OK.
- Move the rotational setting to the counter clockwise most position by repeatedly selecting the down position on the selector switch.
- Rotationally center the HUD by selecting the up position on the selector switch 6 times and press OK.
- Press the OK button.
- Turn the vehicle off.
Distortional calibration

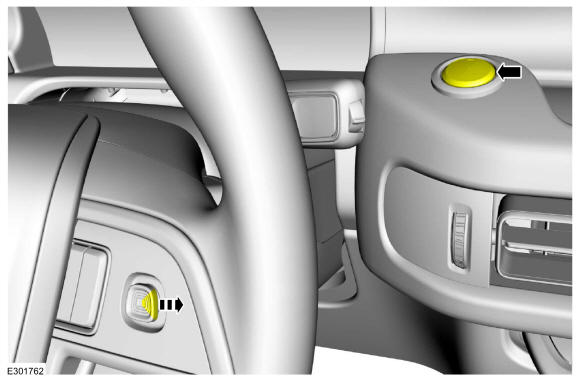

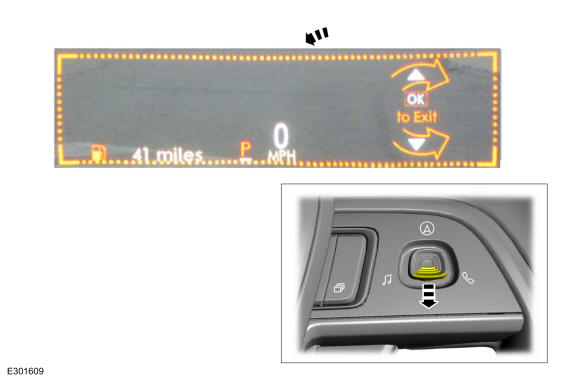

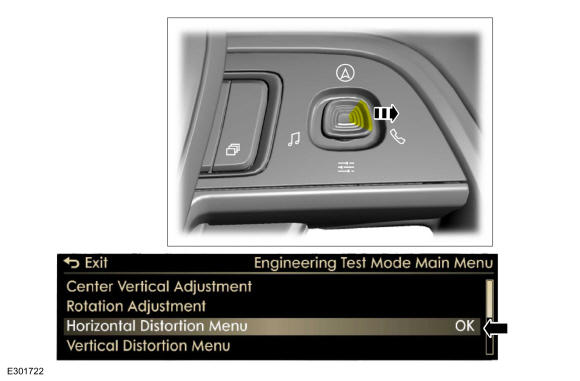

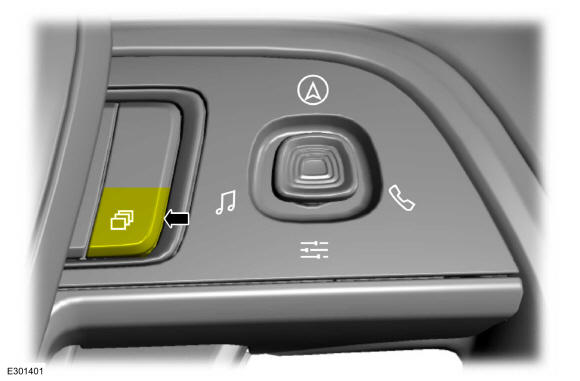

- With the brake pedal released and the ignition OFF, press and hold the RH steering wheel switch OK button as shown. Then cycle the ignition from OFF to RUN. "ETM"will then appear in the upper LH corner of the HUD to indicate that the ETM is active.

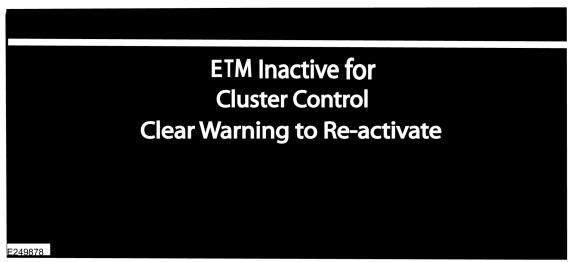

- If there are any warnings in the instrument cluster the ETM inactive screen will appear in the on windshield display.
-
NOTE: If the OK button is pressed after all warnings are cleared the HUD will exit the ETM mode.
Press the OK button to clear each warning.

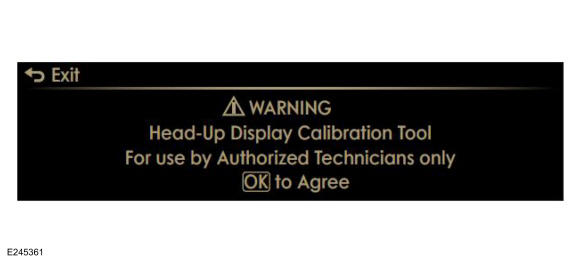

- The HUD will display entry screen to the Engineering Test Mode. Press OK to enter the test mode or return to exit the test mode.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.

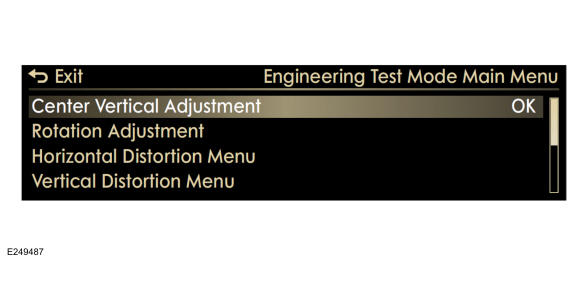

The HUD will display the Engineering Test Mode Main Menu.
-
NOTE: Typical application shown.

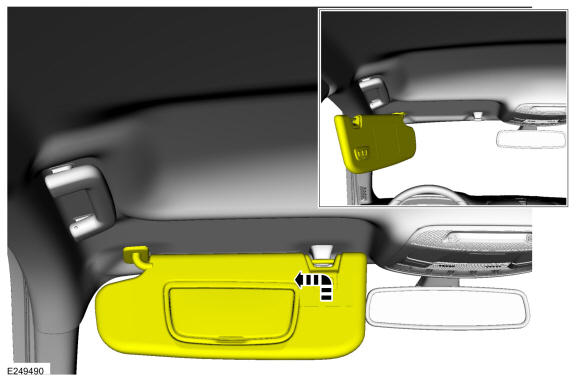

Both sides. Raise the sunvisors and position outward.
- Set up the calibration tool.
- Set up the calibration target. Position it level and centered in the drivers view at the edge of the front bumper.Use Special Service Tool: 501-418 Calibration Target - NO STEP File Available.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.

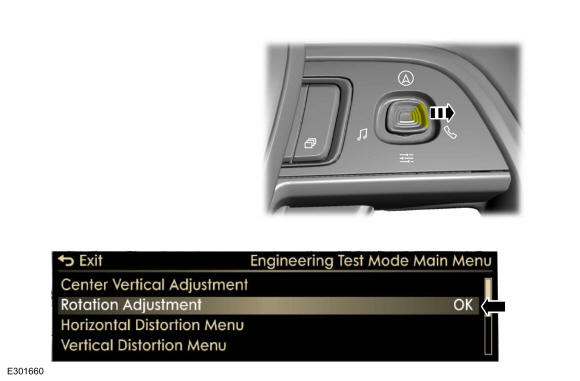

Select the Rotation Adjustment menu item and press OK.

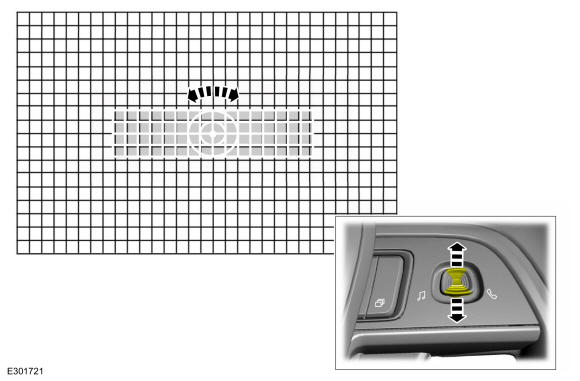

- Adjust the alignment grid while viewing the grid through the HUD eye box until the grid is level and press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.

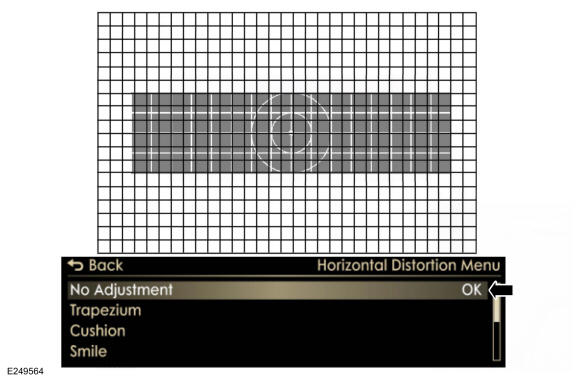

Select Horizontal Distortion adjustment menu and select OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.NOTE: Select trapezium and view grid.
Determine if horizontal distortion is present.
- If no horizontal distortion is present select OK and go to step 45.
- If horizontal distortion is present, go to step 41.
-

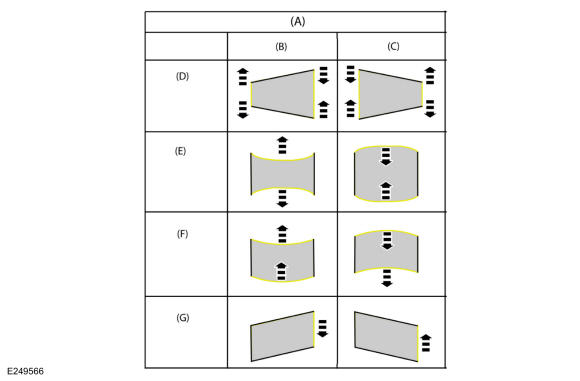

- Horizontal
- Selector lever UP
- Selector lever DOWN
- Trapezium
- Cushion
- Smile
- Shear
- Asymmetrical Shear Horizontal Right
- Asymmetrical Cushion Horizontal Right
- Asymmetrical Shear Horizontal Left
- Asymmetrical Cushion Horizontal Left

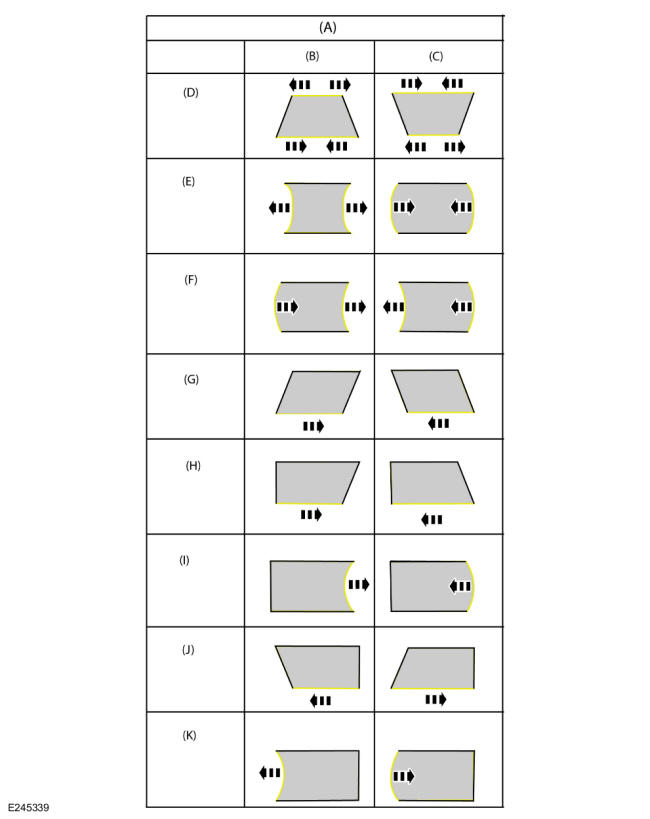

Identify the category (D through K) for the most severe distortion present in the displayed image.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.NOTE: Steps for Shear Horizontal Distortion shown, all other horizontal distortion steps are similar.

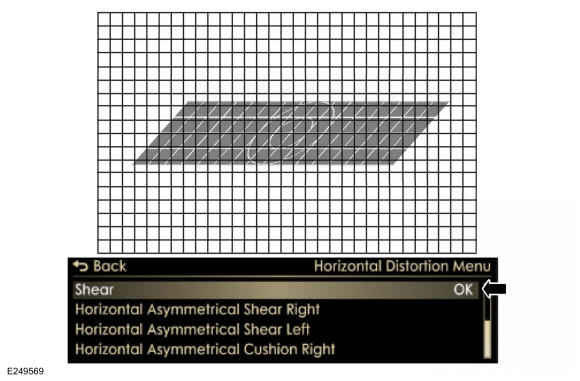

Select Shear from the menu and press OK.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.

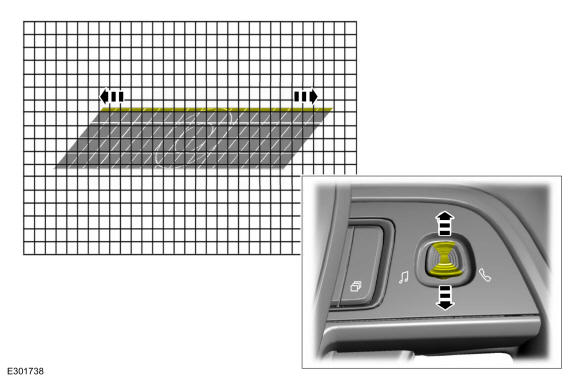

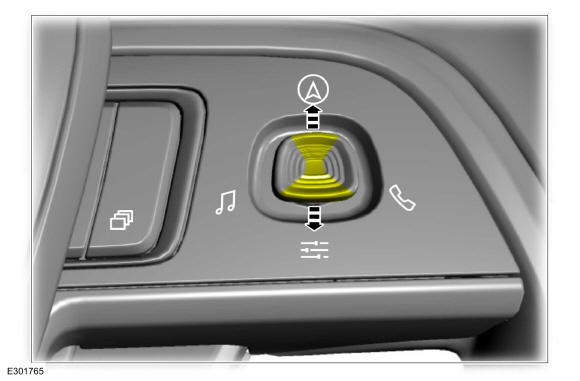

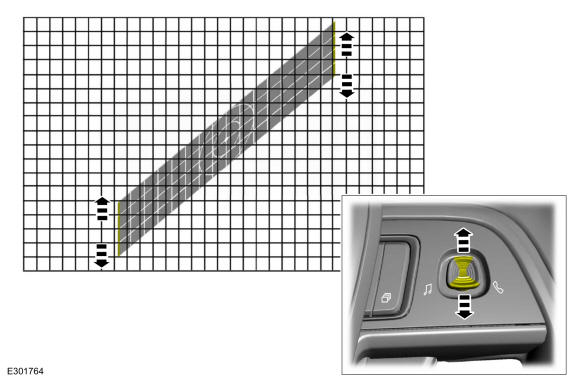

Using the up and down button remove the horizontal distortion from the image then press OK to save adjustment.
- Press return to exit to the previous menu.

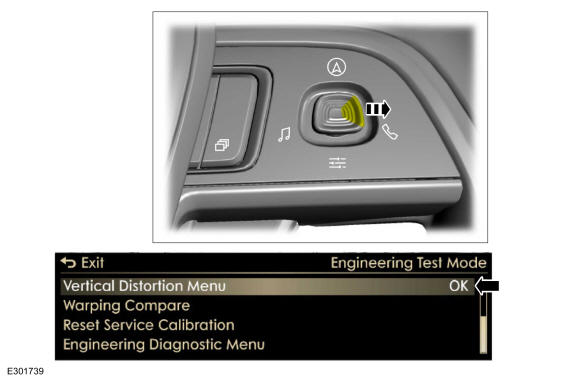

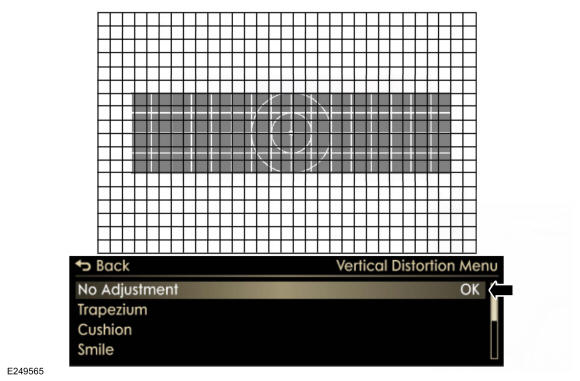

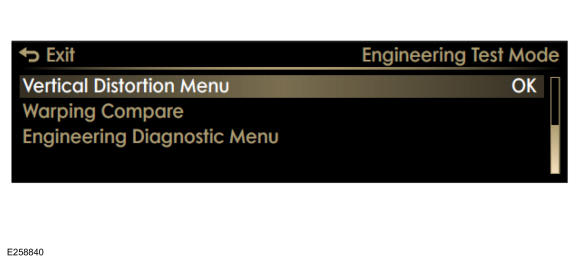

- Select Vertical Distortion Menu and press OK.
- Determine if vertical distortion is present.
- If no vertical distortion is present, go to step 51.
- If vertical distortion is present, go to step 47.
-
- Vertical
- Selector lever UP
- Selector lever DOWN
- Trapezium
- Cushion
- Smile
- Shear
Identify the category of the most severe distortion present in the displayed image.
-
NOTE: Steps for Shear Vertical Distortion shown, all other vertical distortion steps are similar.

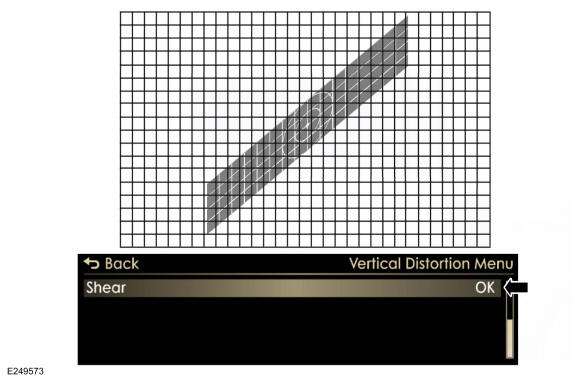

Select Shear from the menu and press OK.
- Using the up and down button, remove the vertical distortion from the image then press OK.
- Press return.
- Carry out the warping compare procedure.
Warping compare
- Select and press the back button item until the main menu is visible.

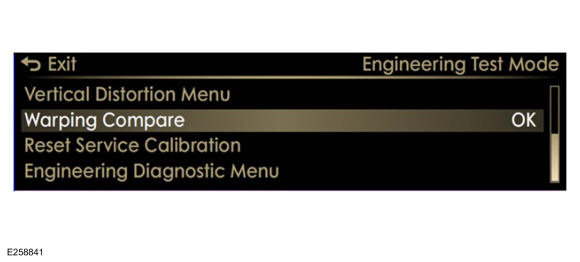

- Select warping compare and press OK.
- Using the up and down button cycle through the available displays.

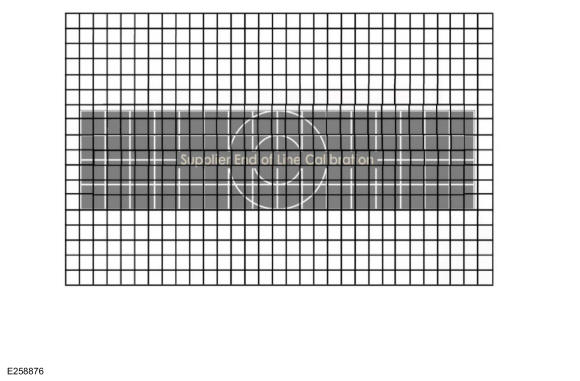

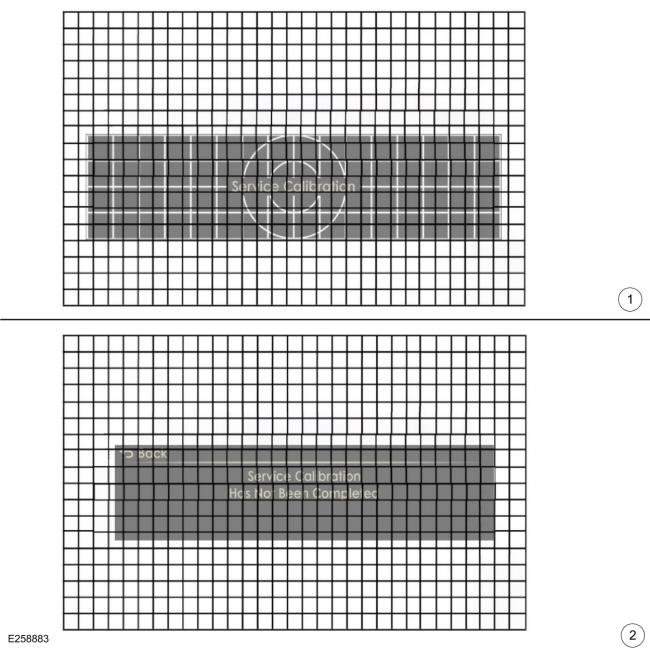

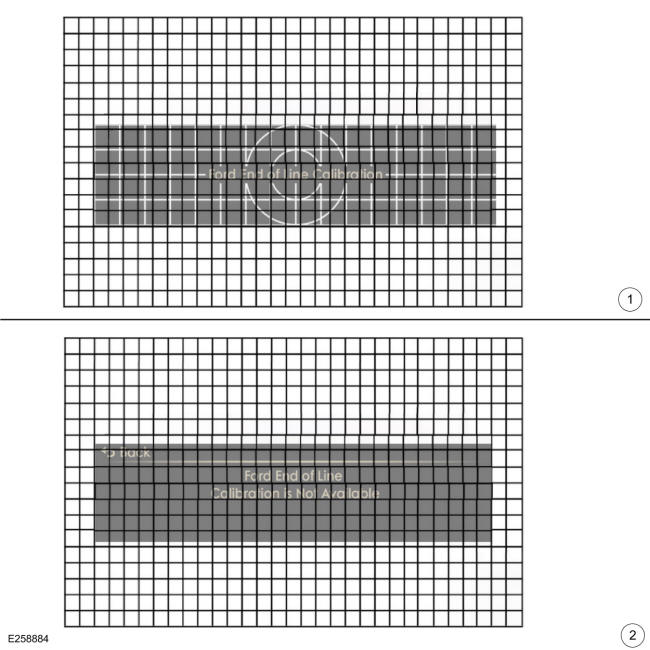

- View and evaluate the supplier End of Line Calibration for warpage.
- View and evaluate the calibration display. Carry out the actions below based on the display observed.
- View and evaluate the service calibration for warpage.
- Return to distortional calibration and complete service calibration.
- View and evaluate the calibration display. Carry out the actions below based on the display observed.
- View and evaluate the Ford End of Line calibration for warpage.
- Disregard as an option for warpage improvement.
- Review the grid in the HUD image and compare it to the grid on the calibration target, switching between the different warping corrections. Use this method to confirm the service warping distortion correction improves the image quality over the end of line warping. Did the service calibration correct the image distortion?
- Yes: Exit the ETM mode and turn off the vehicle.
- No: Carry out the service calibration reset procedure and perform the distortion correction again.
Service calibration reset
NOTE: This procedure is to be used only when the positional and distortional changes are to be erased and the HUD returned to the original factory settings. - Press and hold the OK button, start the vehicle and release the HUD button when the text "ETM" appears in the upper LH corner of the HUD.
- If there are any warnings in the instrument cluster the ETM inactive screen will appear in the on windshield display.
-
NOTE: If the OK button is pressed after all warnings are cleared the HUD will exit the ETM mode.
Press the OK button to clear each warning.
- The message center in the instrument cluster will display entry screen to the Engineering Test Mode Main Menu. Press OK to enter the test mode or return to exit the test mode.
-
NOTE: Some vehicle lines are not equipped with the horizontal distortion menu adjustment feature.
The message center will display the Engineering Test Mode Main Menu.

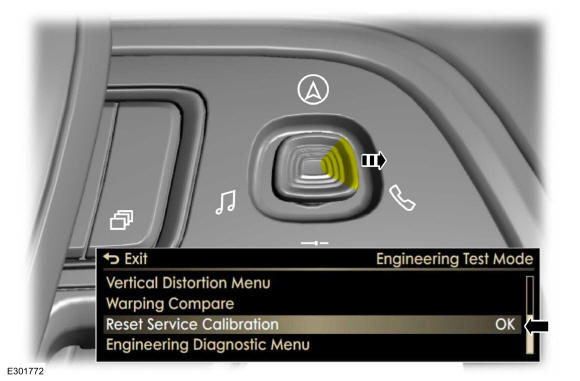

- Select the Reset Service Calibration menu item and press OK.
-

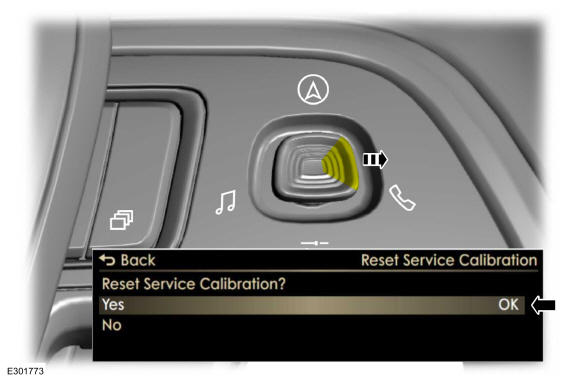

- To reset the service calibration to the factory settings select YES and press OK.
- To retain the current calibration settings select NO and press OK.
- Press return.
- Turn the vehicle off.
- Remove the ETM visor.
