Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc shield. Refer to: Brake Disc Shield .

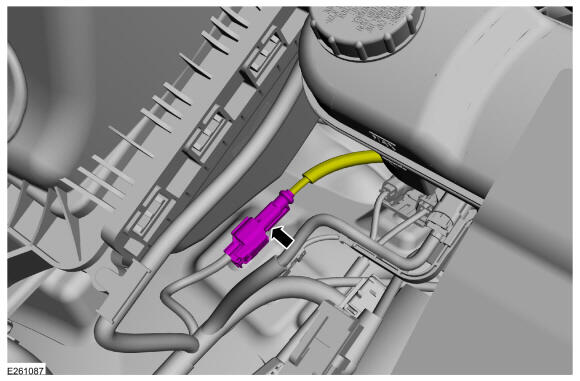

  2. Disconnect the wheel speed sensor electrical connector.
    GFD882595Courtesy of FORD MOTOR COMPANY

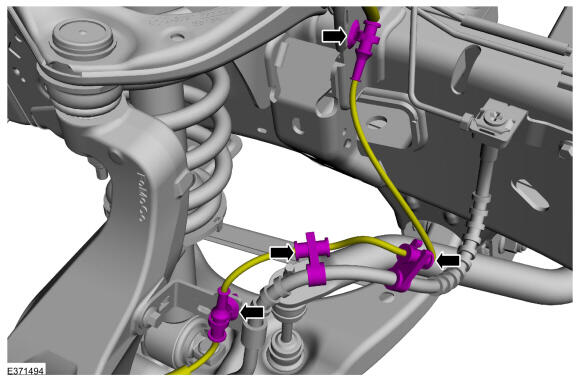

  3. Detach the wiring retainers.
    GFD882596Courtesy of FORD MOTOR COMPANY

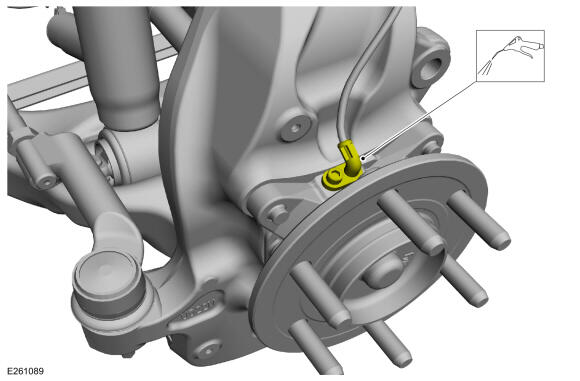

  4. Using compressed air, clean the area surrounding the front wheel speed sensor.
    GFD882597Courtesy of FORD MOTOR COMPANY

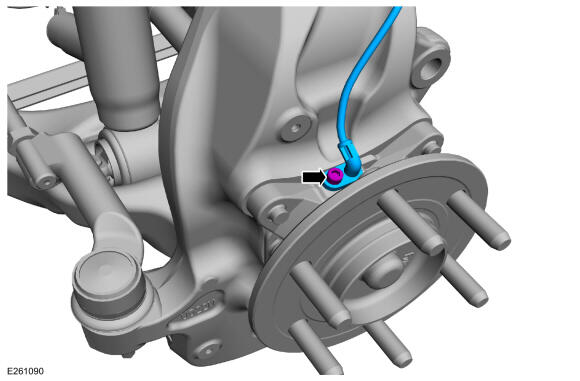

  5. Remove the bolt and the front wheel speed sensor.

    Torque: 17 Nm

GFD882598Courtesy of FORD MOTOR COMPANY
