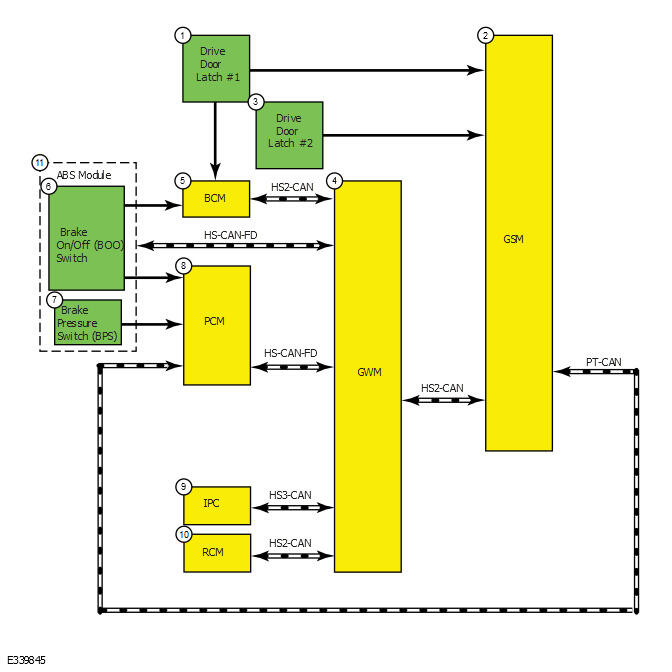

System Diagram

GFD884530Courtesy of FORD MOTOR COMPANY
Item Description
1 Drive Door Latch #1
2 GSM
3 Drive Door Latch #2
4 GWM
5 BCM
6 Brake On/Off (BOO) Switch
7 Brake Pressure Switch (BPS)
8 PCM
9 IPC
10 RCM
11 ABS Module
