Wiring Diagrams: Wiring Diagram

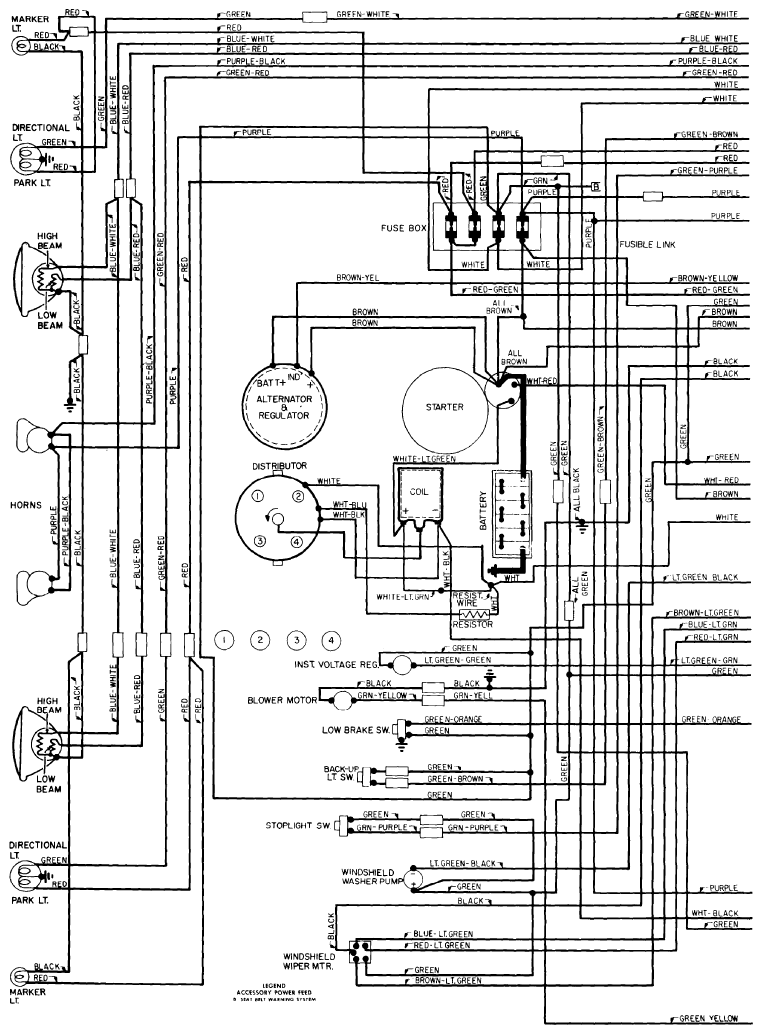

Fig 1: Wiring Diagram - Midget (1 of 2)
G09303324Courtesy of NOT AVAILABLE

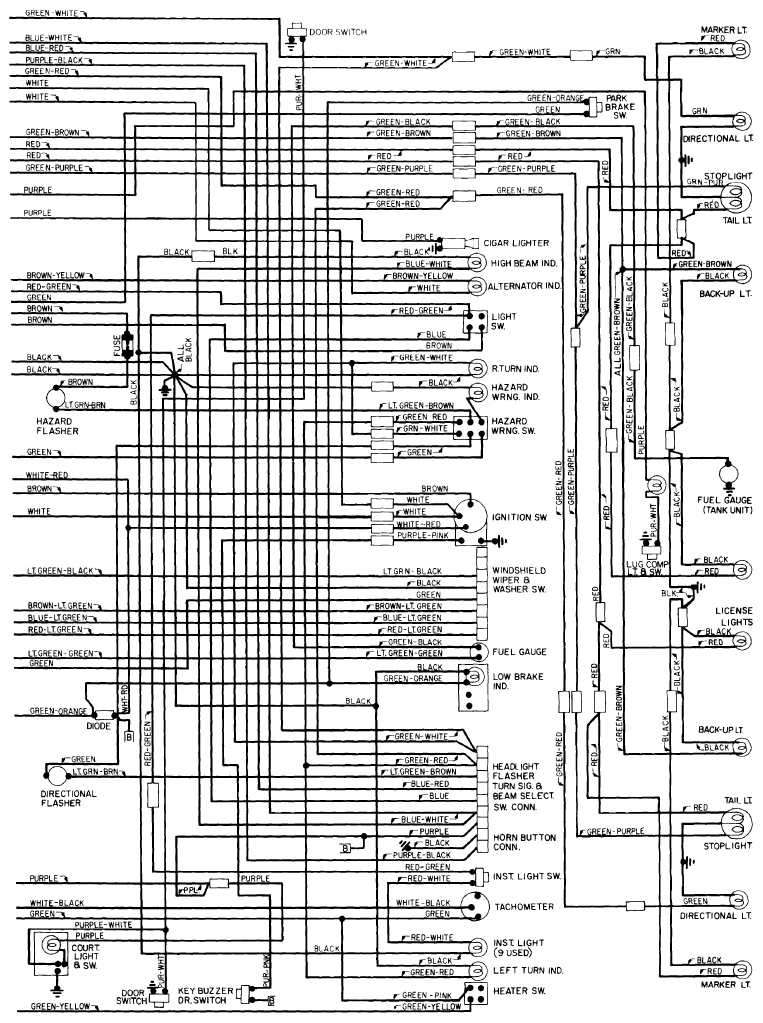

Fig 2: Wiring Diagram - Midget (2 of 2)
G09303325Courtesy of NOT AVAILABLE
