Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is a dry, single disc, diaphragm type, and cable actuated. A prelubricated clutch release bearing is used and is located in the transmission housing.

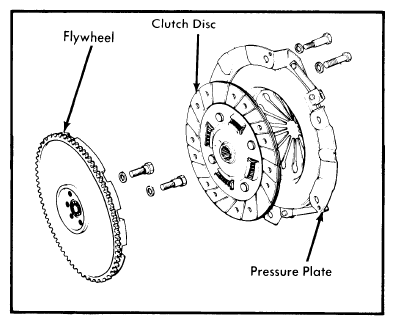

Fig 1: Exploded View of Clutch Assembly

Courtesy of MAZDA MOTORS CORP.
