Wiring Diagrams: Wiring Diagram

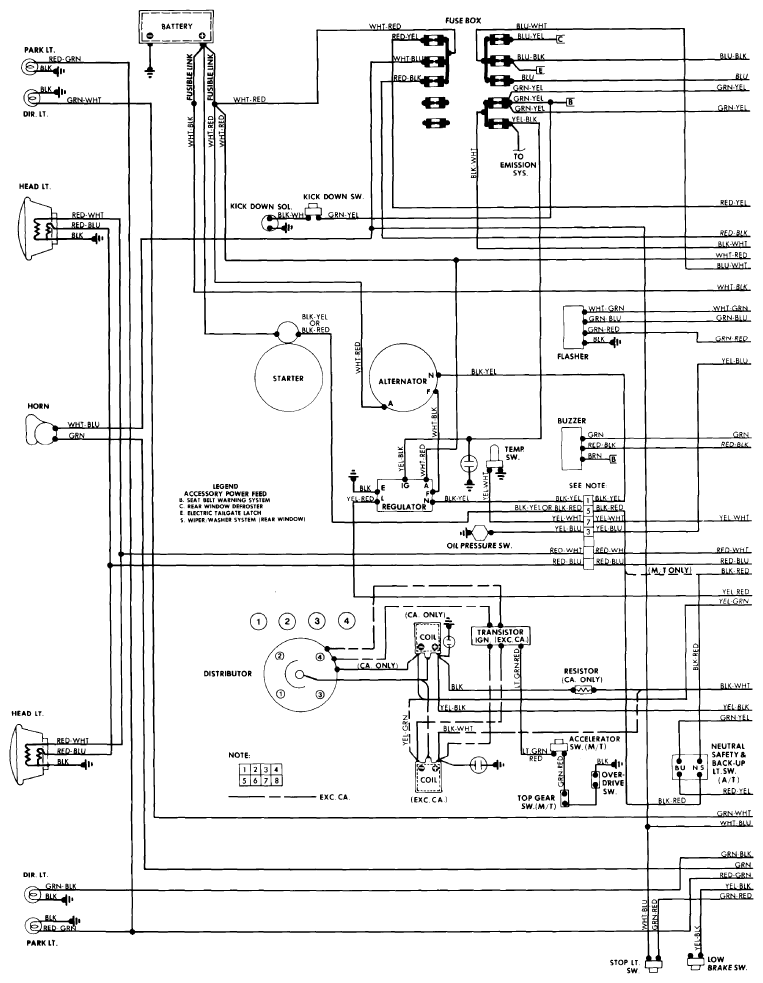

Fig 1: Wiring Diagram - GLC (1 of 2)
G09303539Courtesy of MAZDA MOTORS CORP.

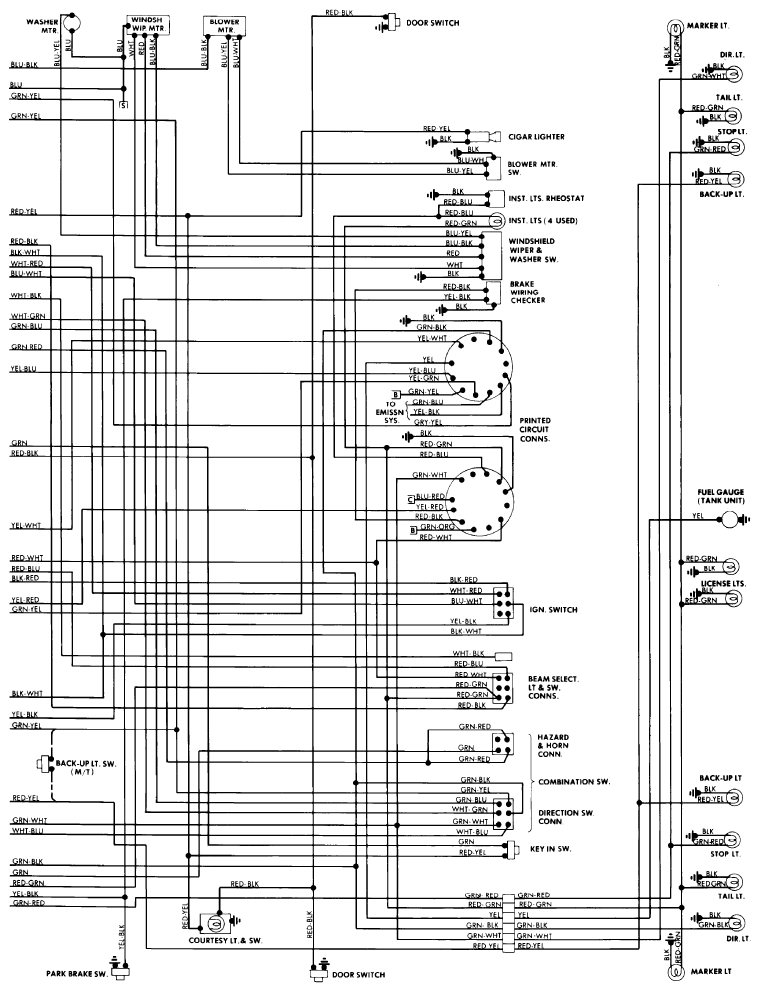

Fig 2: Wiring Diagram - GLC (2 of 2)
G09303540Courtesy of MAZDA MOTORS CORP.
