Repair and Diagnosis: Transmission: Clutch: Clutches: Description

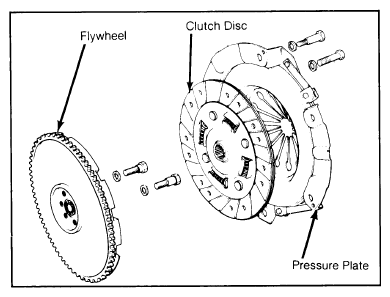

Clutch is a dry, single disc, diaphragm spring type. Release mechanism is cable actuated. A prelubricated clutch release bearing is used and is located in the transmission housing.
Courtesy of MAZDA MOTORS CORP.
