Ignition Switch: Service and Repair

1. Disconnect battery ground cable.

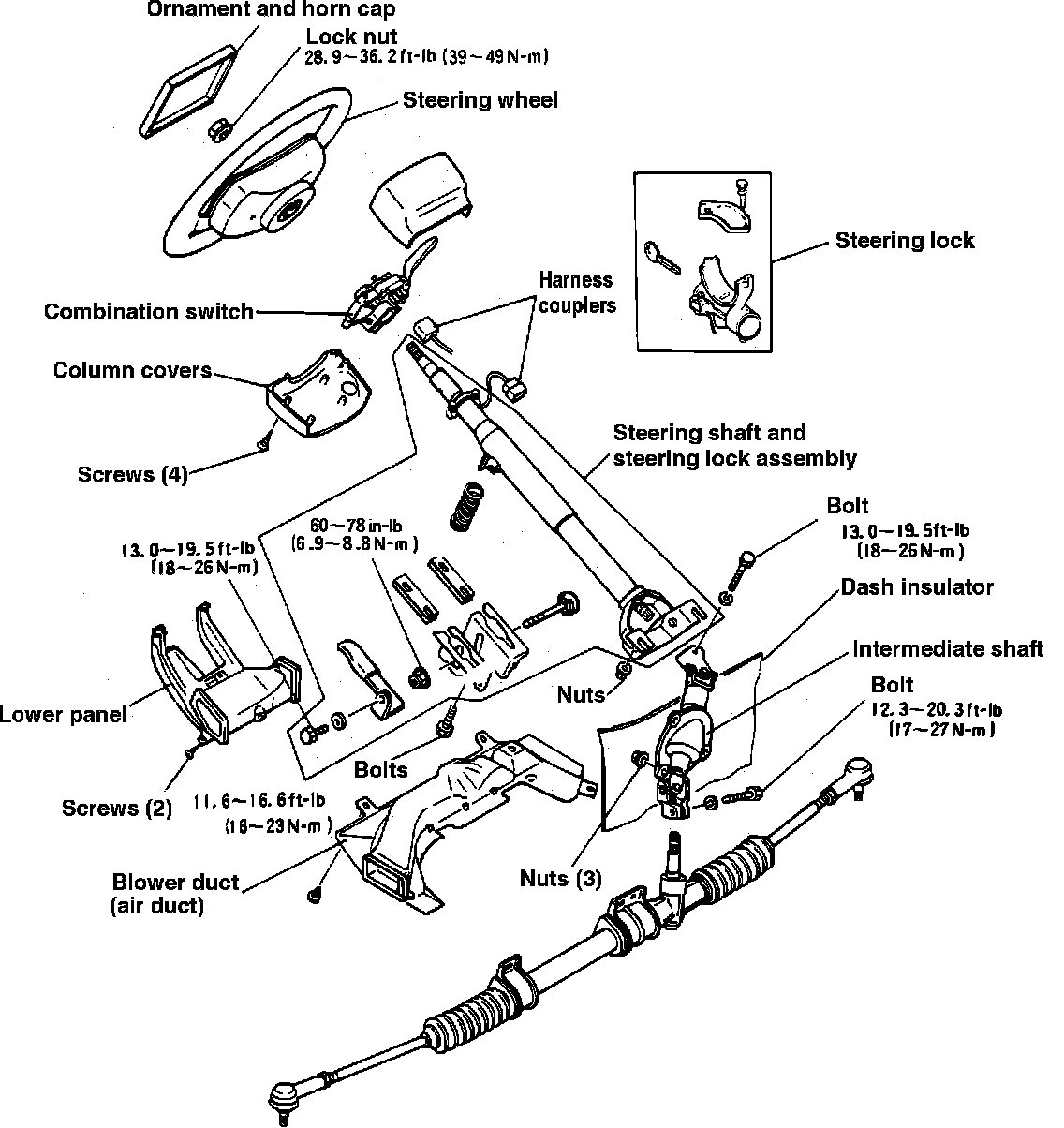

Steering Column:

2. Remove steering column covers.

3. Disconnect ignition switch connector.

4. Remove electrical switch retaining screw from back side of ignition lock body.

5. Reverse removal to install.
