Fuel Injection Pump: Installation

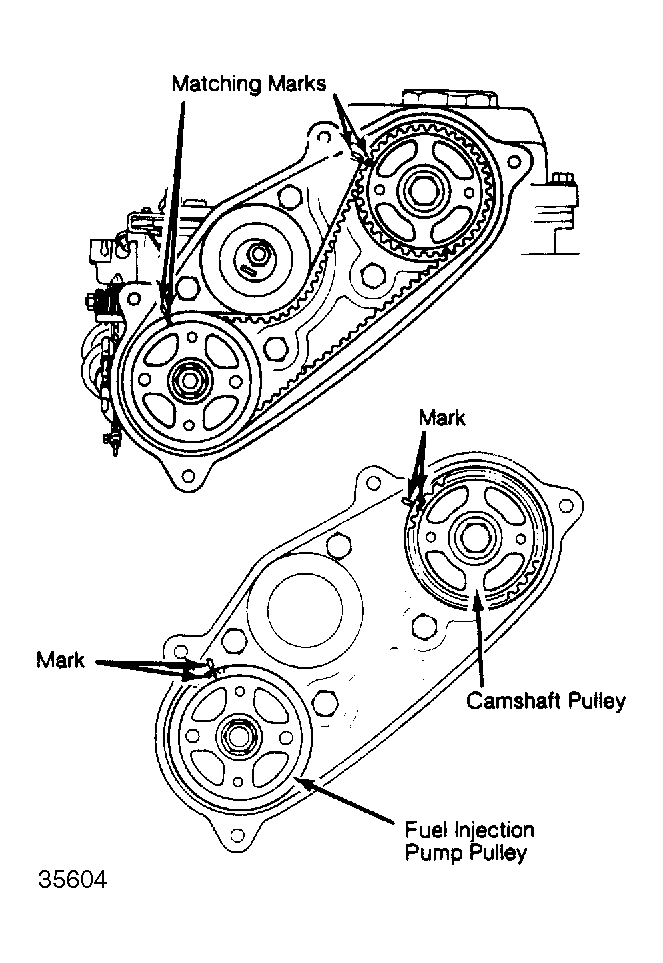

- Align the match mark on pump with mark on rear seal. See Fig 1 . Tighten the 2 nuts to 14-19 ft. lbs. (19-26 N.m). Install Woodruff key to injection pump drive shaft.
- Install pump pulley to injection pump shaft and align match marks. Hold pulley with 2 bolts and tighten lock nut to 43-51 ft. lbs. (60-70 N.m). Turn crankshaft to align match mark of camshaft pulley with mark on rear seal cover. See Figure . Loosen bolt tensioner lock nut, turn tensioner clockwise as far as possible and temporarily tighten lock nut.
- Install rear timing belt. Loosen tensioner lock nut to apply tension to belt. Remove fixing bolts. Turn crankshaft twice in direction of rotation, then tighten tensioner lock nut to 14-19 ft. lbs. (19-26 N.m).
- Repeat remainder of removal procedure to complete installation. Bleed air from injection pump.
