Coolant Temperature Sensor/Switch (For Computer): Locations

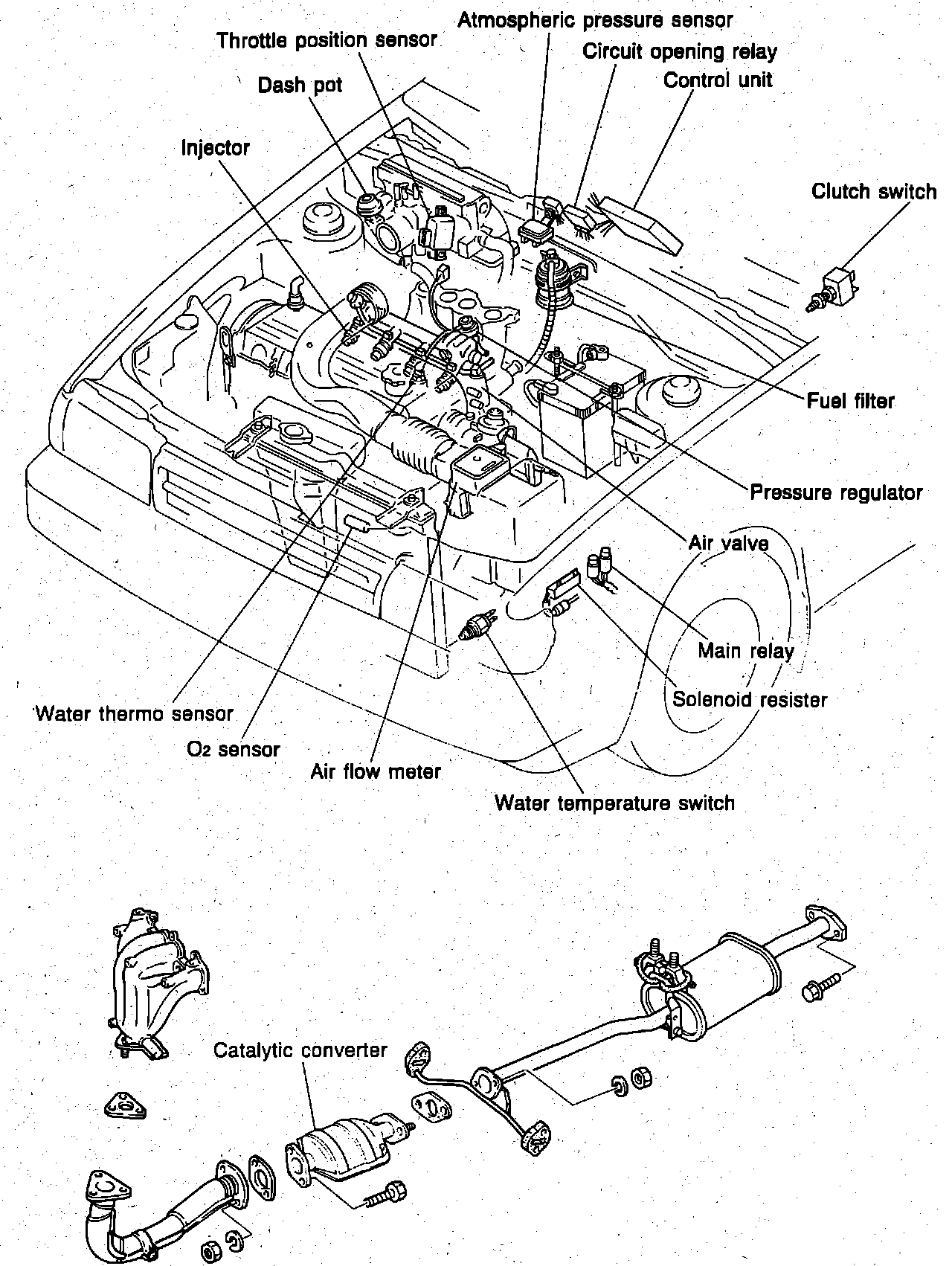

Emission System Components.:




Attached To Radiator

Applicable to: 1986 Carbureted Models

Emission System Components.:




Mounted On Radiator

Applicable to: 1986 Fuel Injected Models
