Subframe: Service and Repair

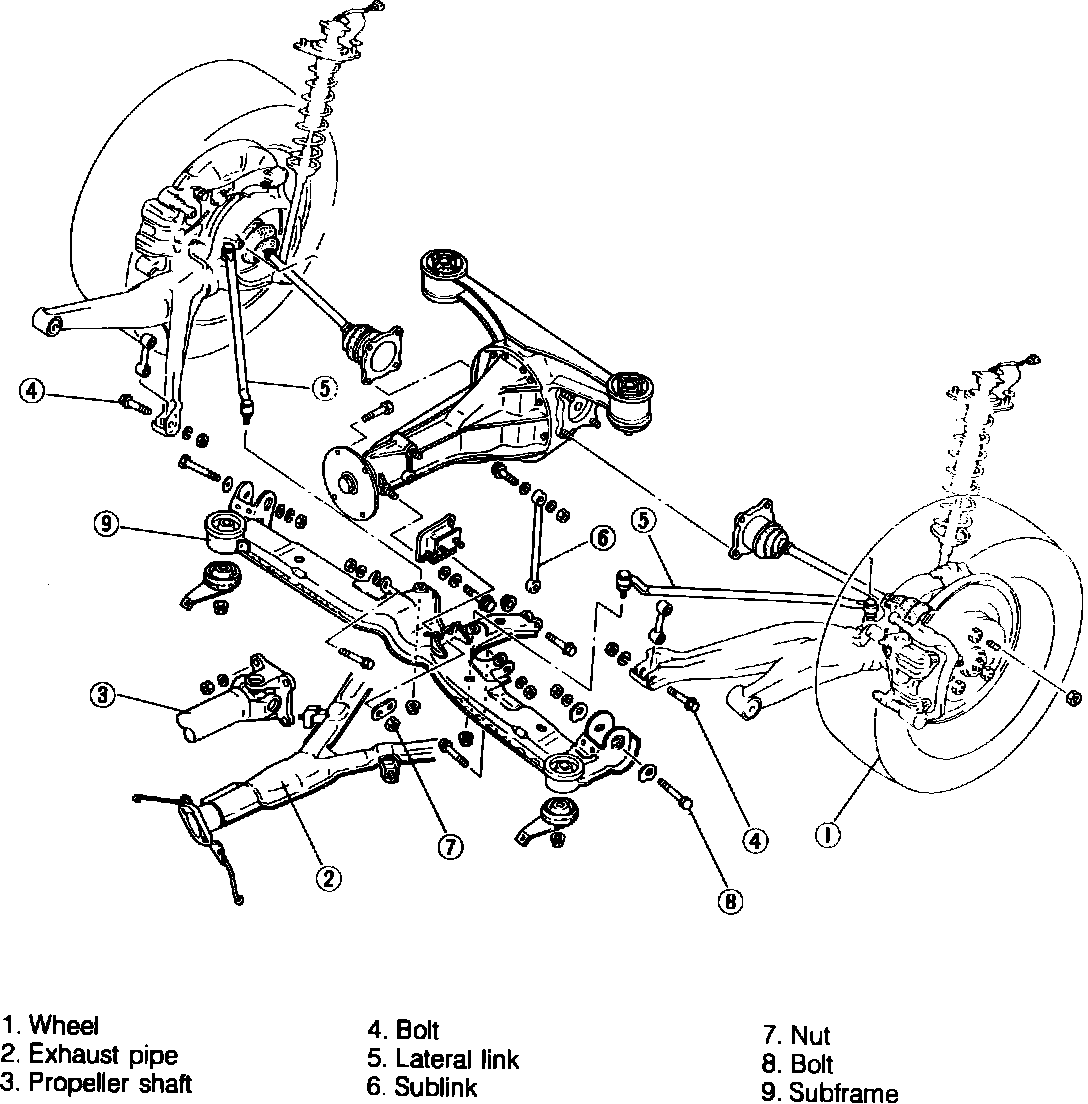

Fig. 12 Subframe assembly. 1986-88 RX-7:
When removing or installing subframe assembly, refer to Fig. 12. Reverse numerical removal sequence for installation.
