Steering Control Module

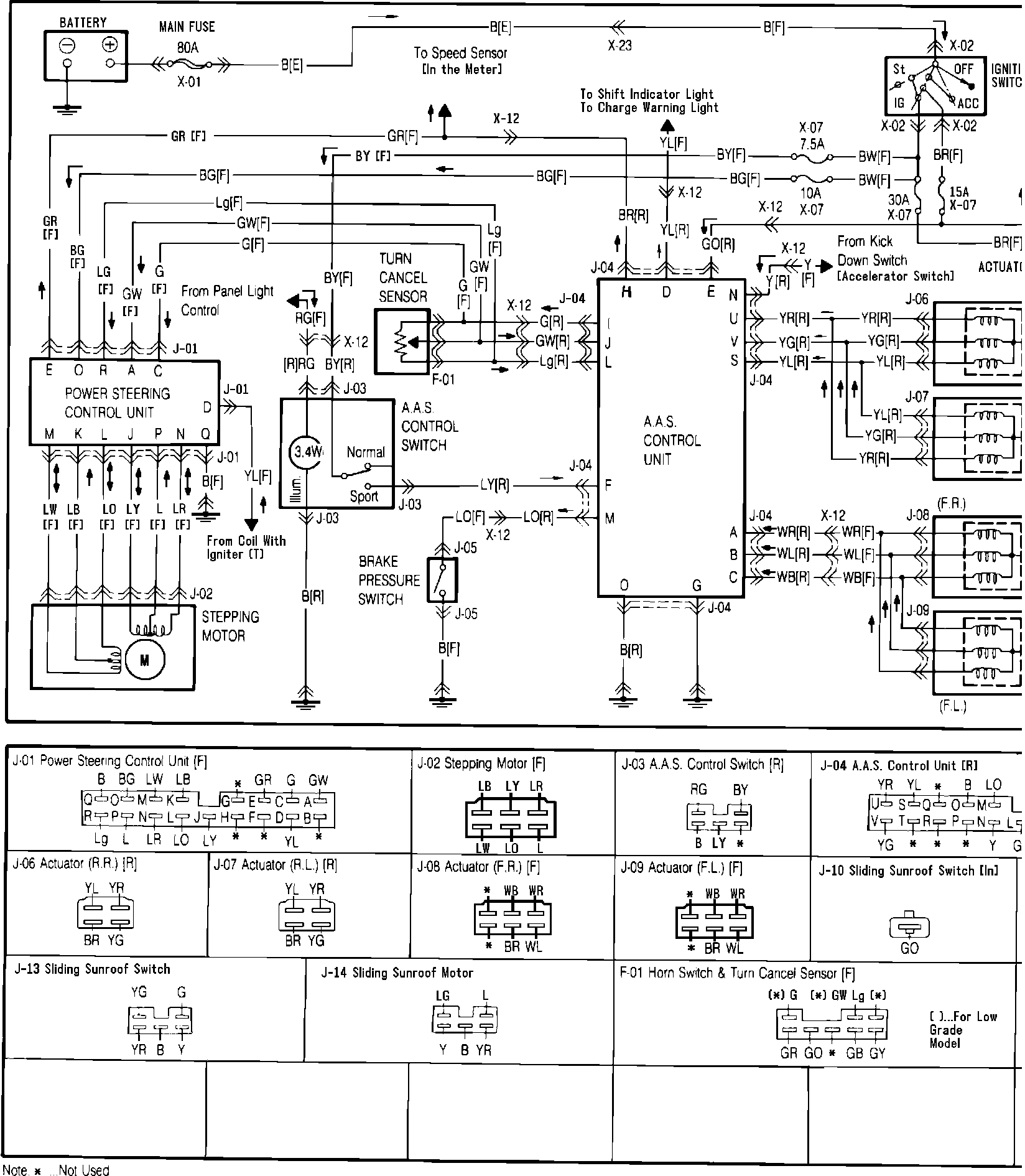

�8vFig. 28b Auto Adjusting Suspension Control System (A. A. S.), Power Steering Control System & Sliding Sunroof Wiring Circuit:
