Emission Control Systems: Locations

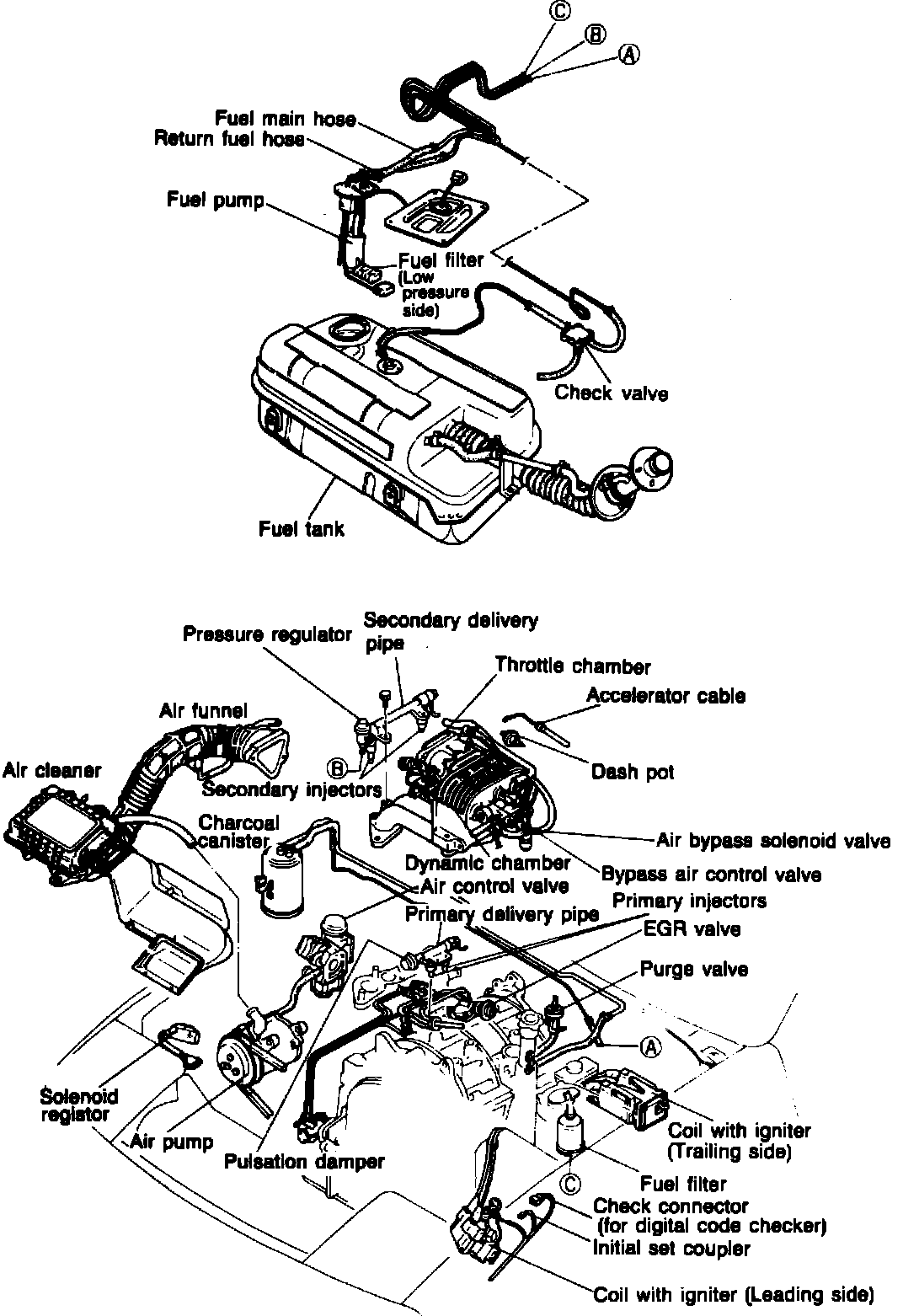

Fig. 9a Engine compartment reference diagram. Exc. Turbo (Part 1 of 2):

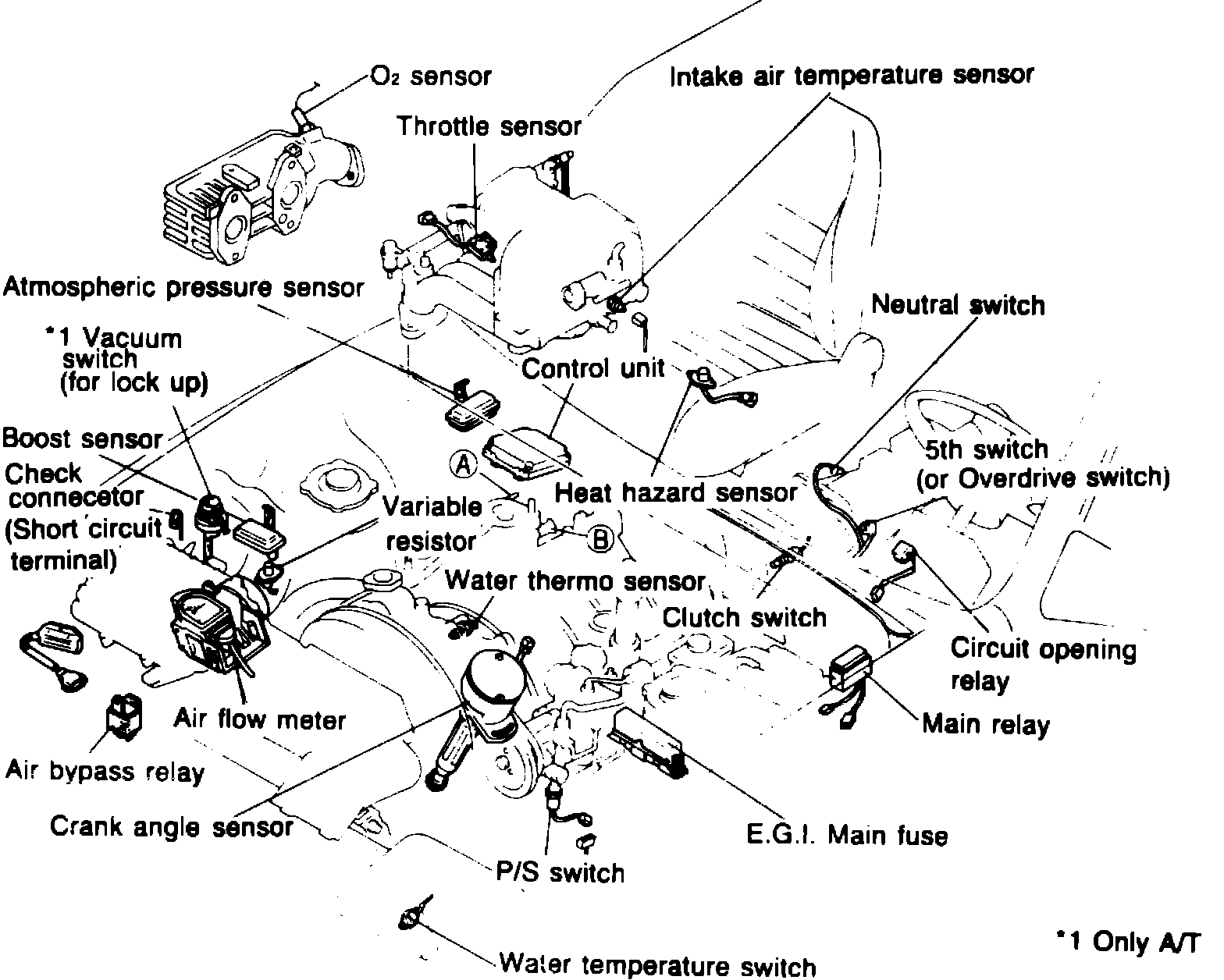

Fig. 9b Engine compartment reference diagram. Exc. Turbo (Part 2 of 2):
