Wiring Diagrams

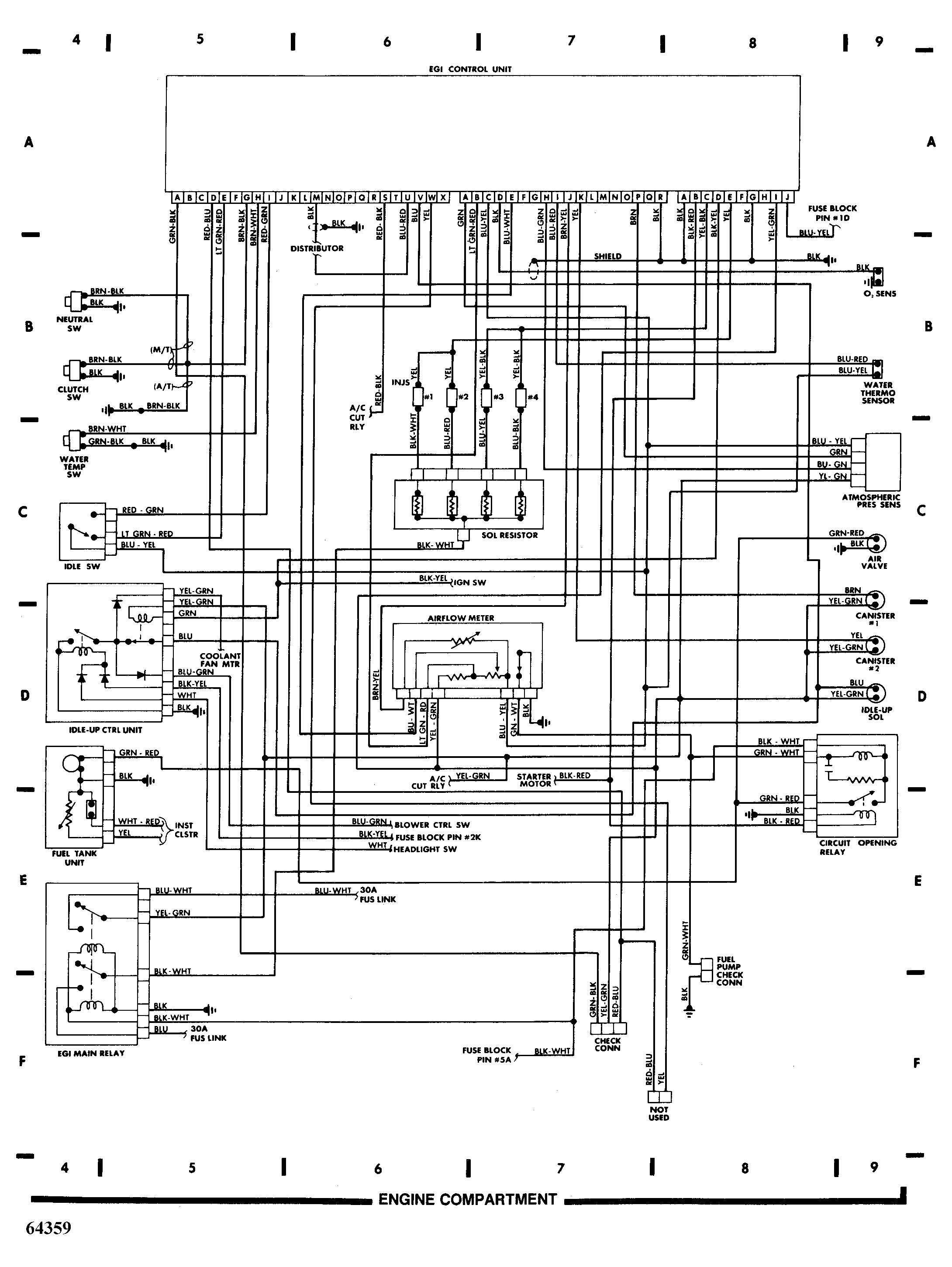

Fig 1: 323 Computer Control System Wiring Diagram
G64359

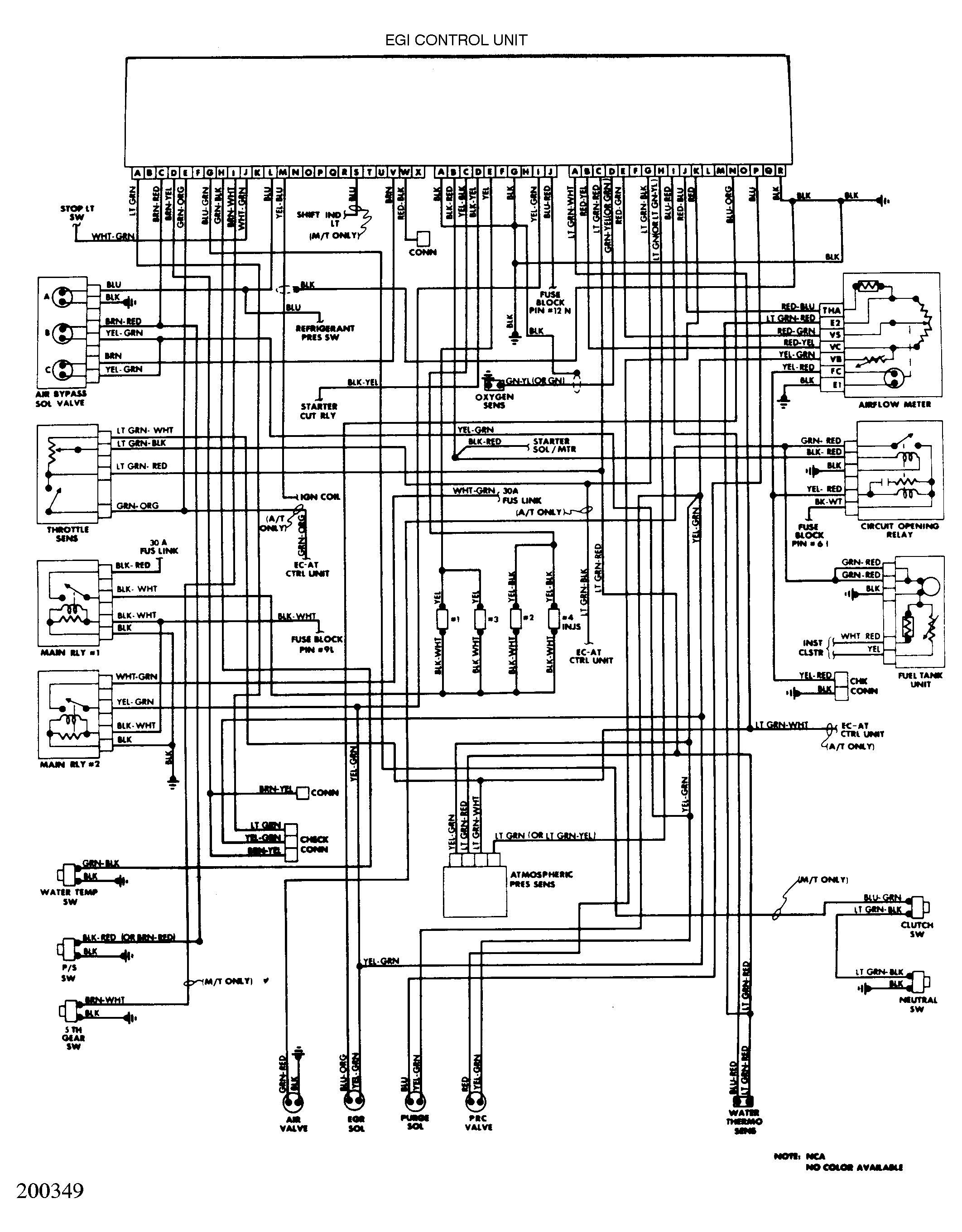

Fig 2: 626 Non-Turbo Computer Control System Wiring Diagram
G200349

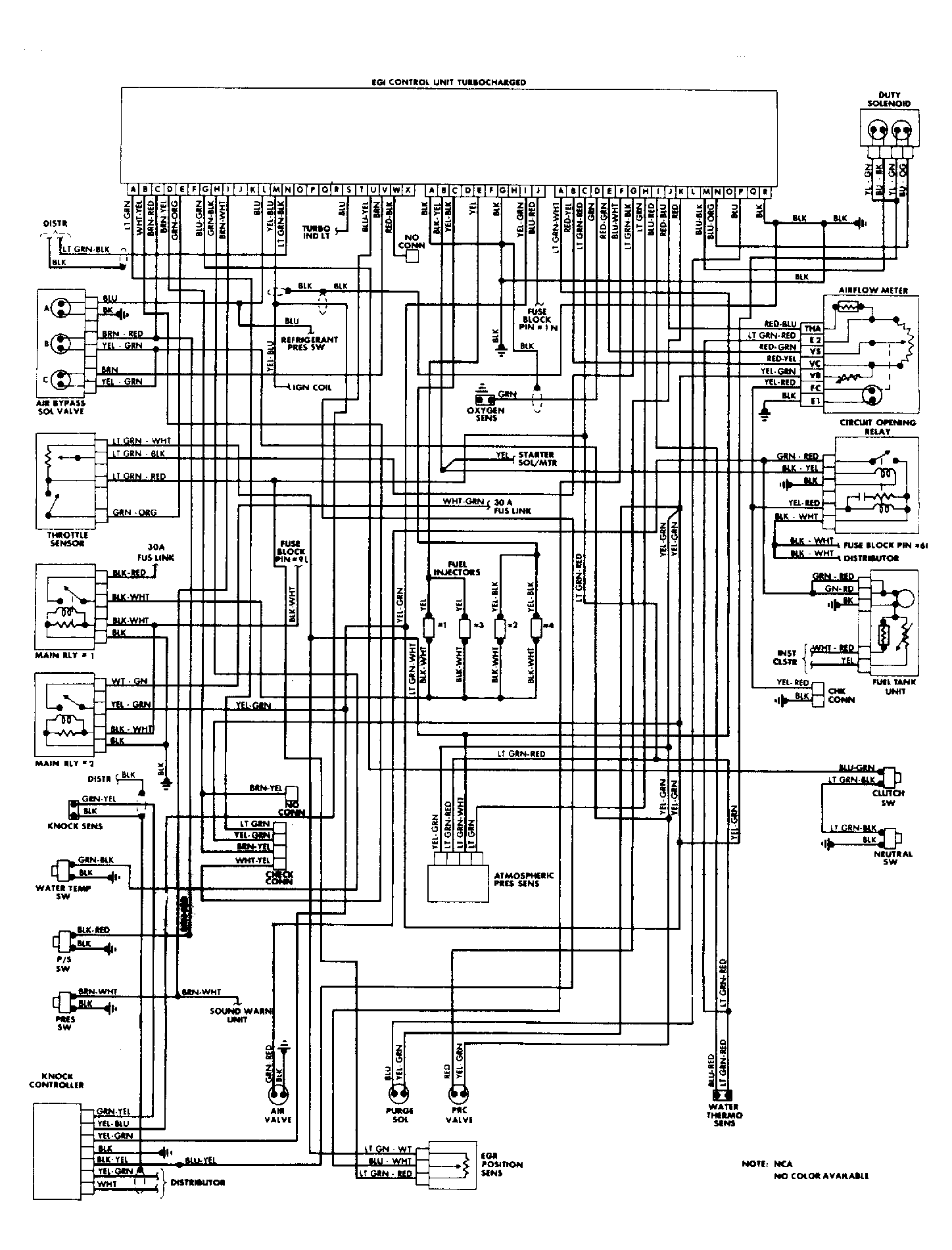

Fig 3: 626 Turbo Computer Control System Wiring Diagram
G61480
