Interior Lighting Module

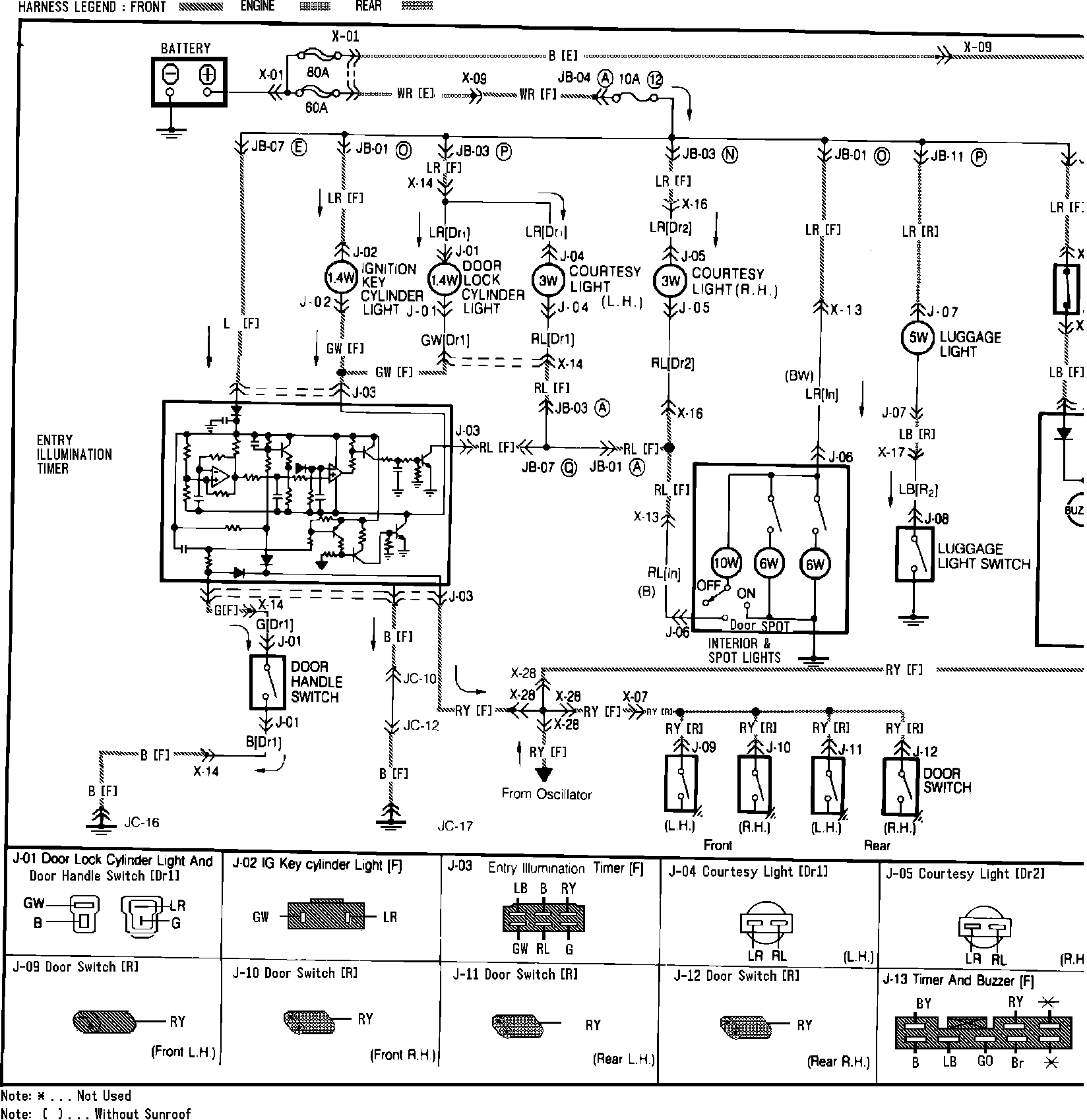

���Fig. 24b Courtesy Lights, Door Lock Cylinder & Ignition Key Cylinder Lights, Interior & Spot Lights, Luggage Compartmnet Light & Seat Belt Warning System Wiring Circuit. Station Wagon:
