Adjustment With SST

Fig. 5 Throttle Switch Inspection:

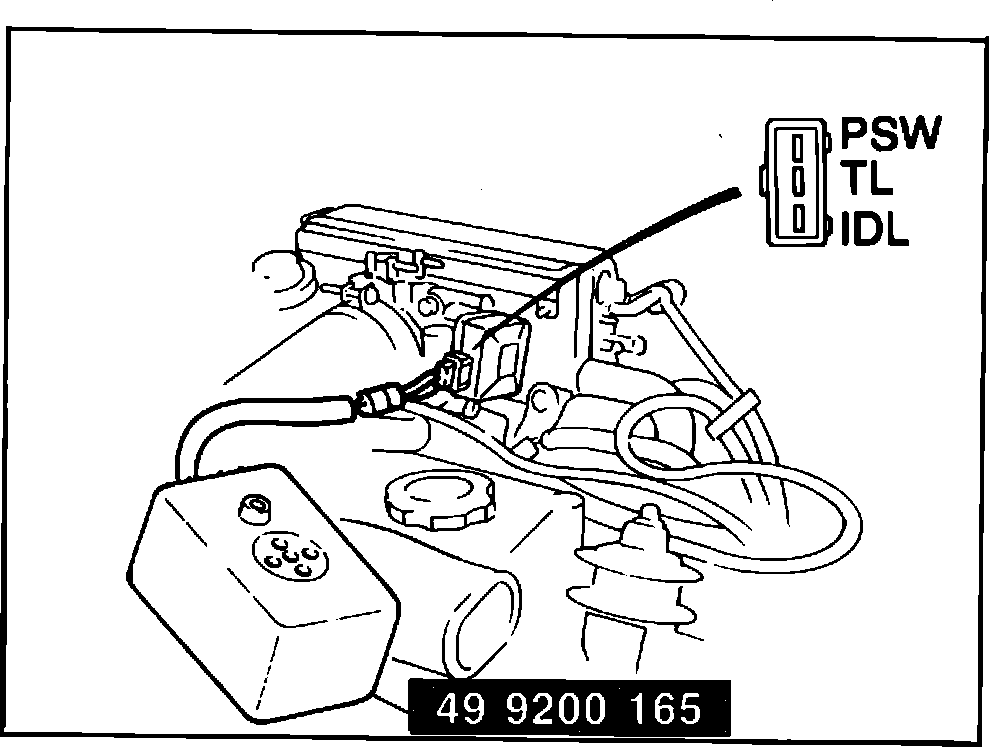

Fig. 20 Connecting SST to throttle sensor.:

1. Disconnect connector from throttle sensor and connect tool 499200165 or equivalent Fig. 20.

Fig. 21 Inserting thickness gauge.:

2. Insert .02 inch thickness gage between throttle stop screw and stop lever Fig. 21.
3. Loosen two throttle sensor attaching screws.

Fig. 23 Rotating throttle sensor.:

4. Rotate throttle position sensor clockwise approximately 30°, then rotate it back counterclockwise until buzzer sounds Fig. 23.

Fig. 22 Thickness gauge chart.:

5. Replace thickness gage with .027 inch gage and, if buzzer sounds, Fig. 22 repeat steps 3 and 4.
6. Tighten two attaching screws. Be careful not to move throttle sensor from set position when tightening screws.
7. Open throttle valve fully a few times, then recheck adjustment.
