Neutral Switch

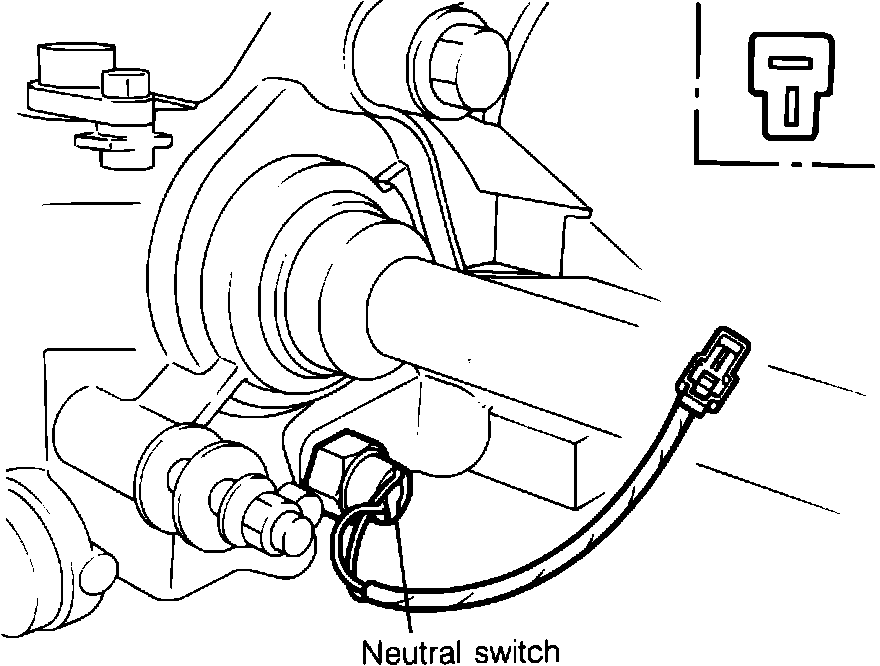

Fig. 36 Neutral Switch Adjustment:




Fig. 22 Connecting A Circuit Tester To Neutral Switch, M/T.:







1. Disconnect neutral switch connector Fig. 36.
2. Connect a circuit tester to neutral switch and check continuity between terminals. There should be no continuity in Neutral and there should be continuity in all other ranges.
