Idle Mixture: Notes

NOTE: Mixture adjustment is not a part of normal tune-up procedure and should not be performed unless carburetor is disassembled or vehicle fails emission testing.

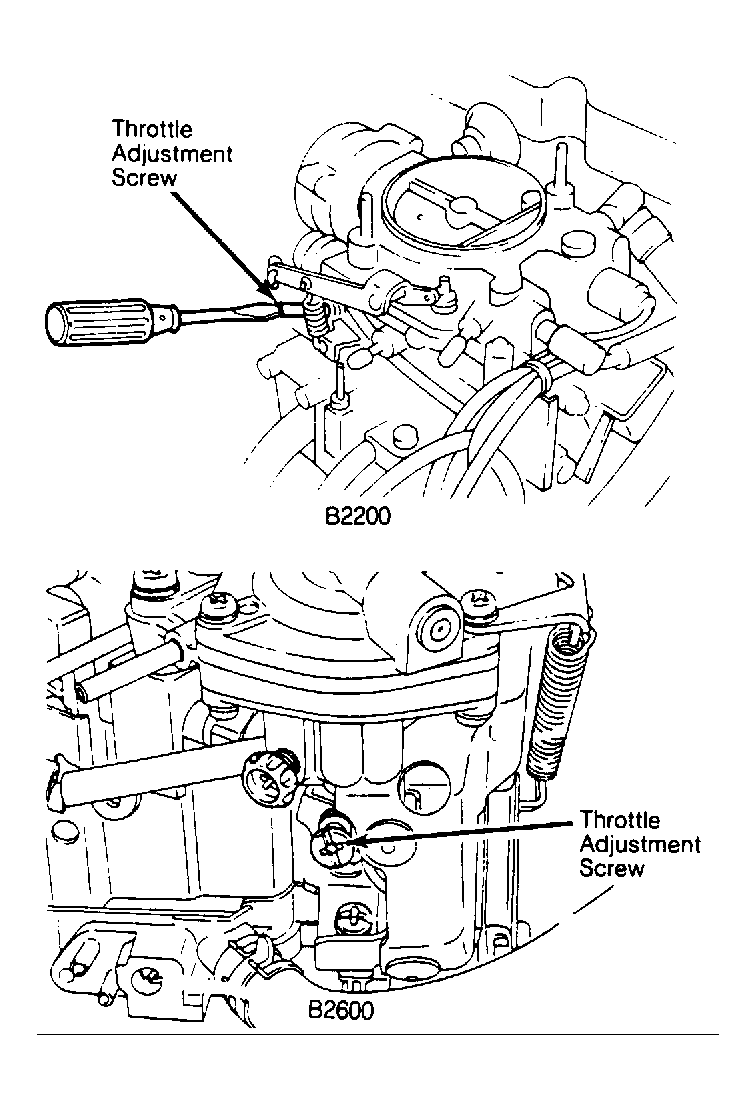

Fig 1: Carburetor Adjustment Screw Locations

Courtesy of MAZDA MOTORS CORP.
