Trouble Code Identification Charts

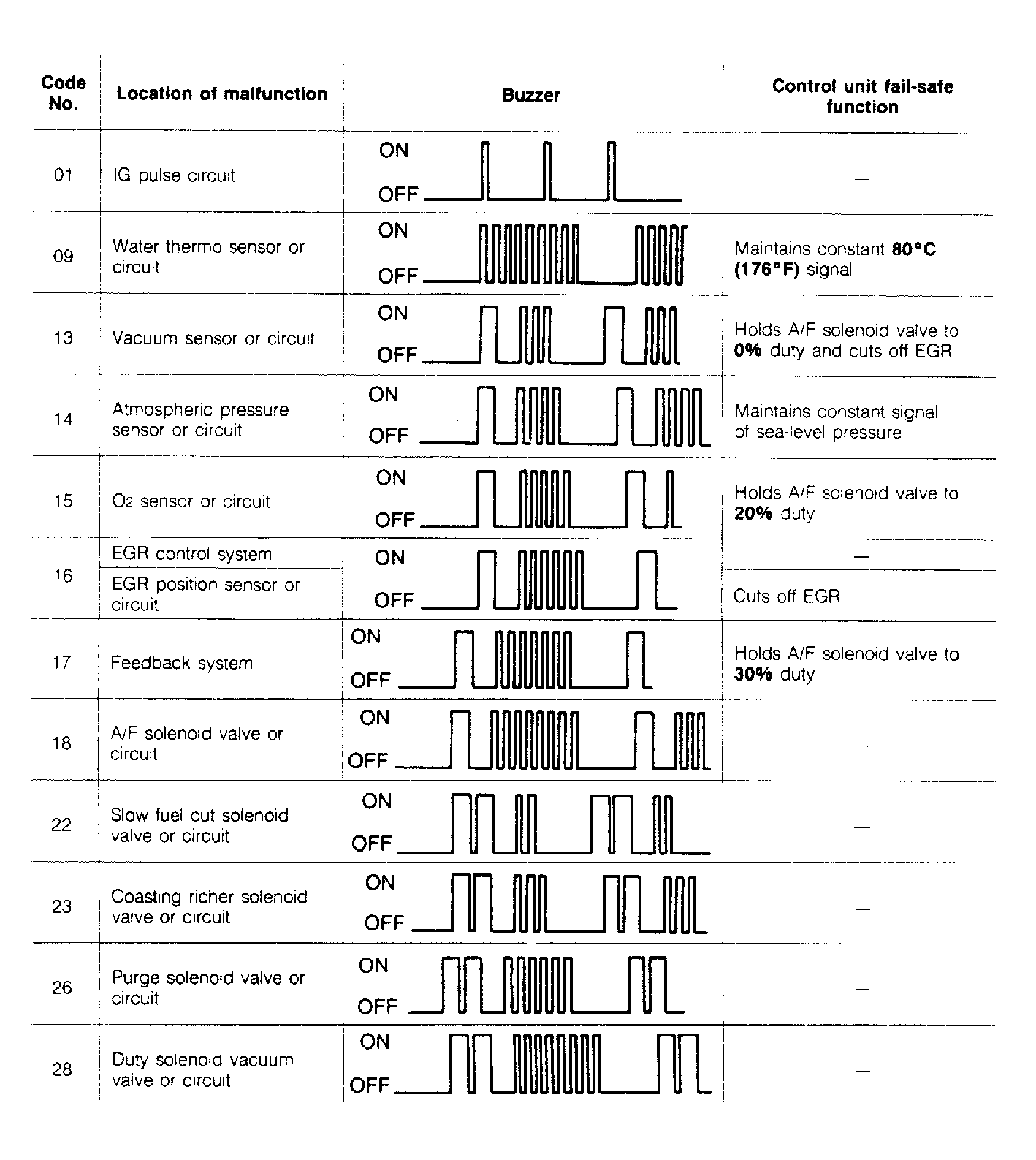

Fig 1: Trouble Code Identification Chart (1 of 2)
G94877Courtesy of MAZDA MOTORS CORP.

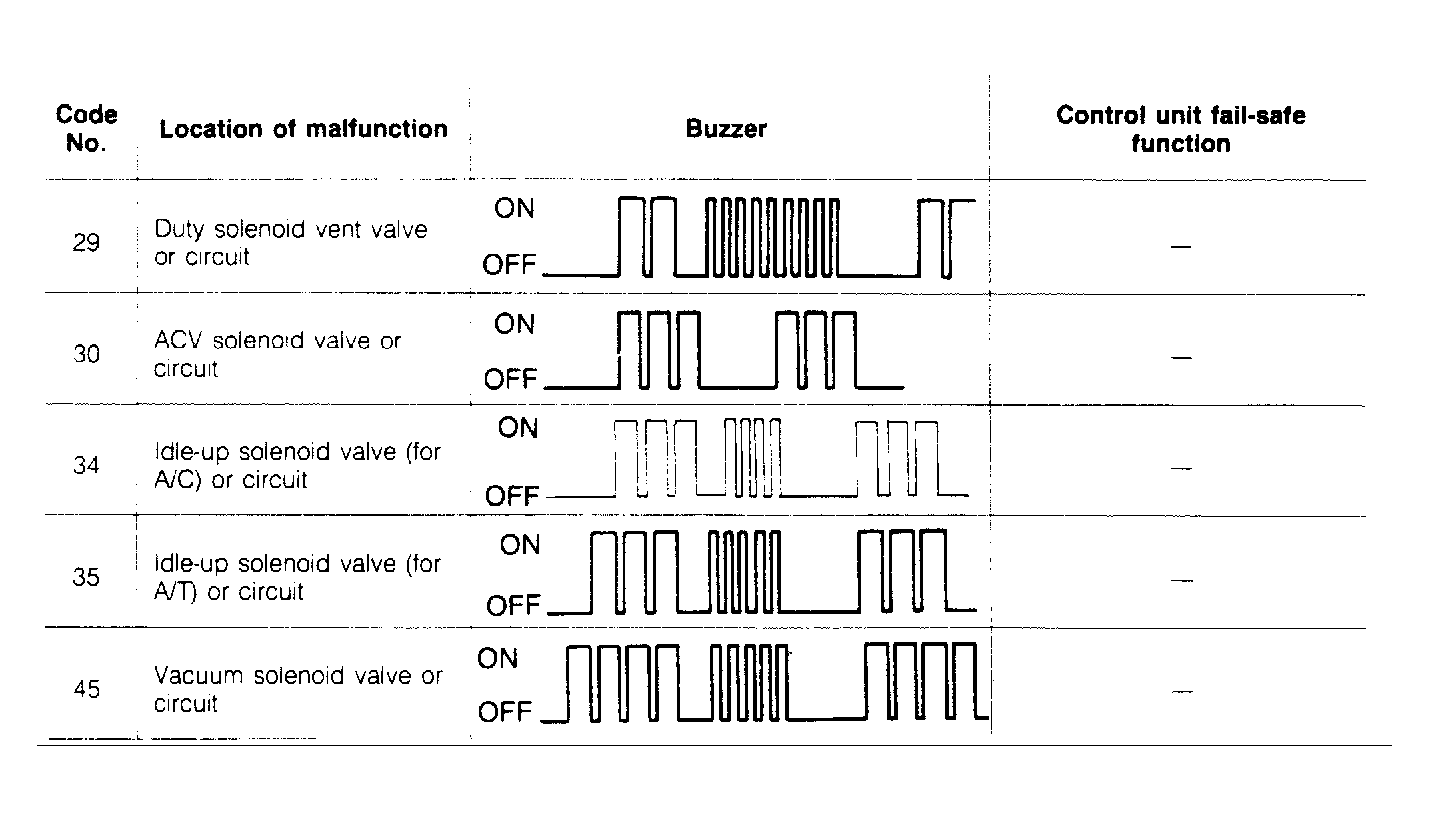

Fig 2: Trouble Code Identification Chart (2 of 2)
G94878Courtesy of MAZDA MOTORS CORP.
