Wiper Switch

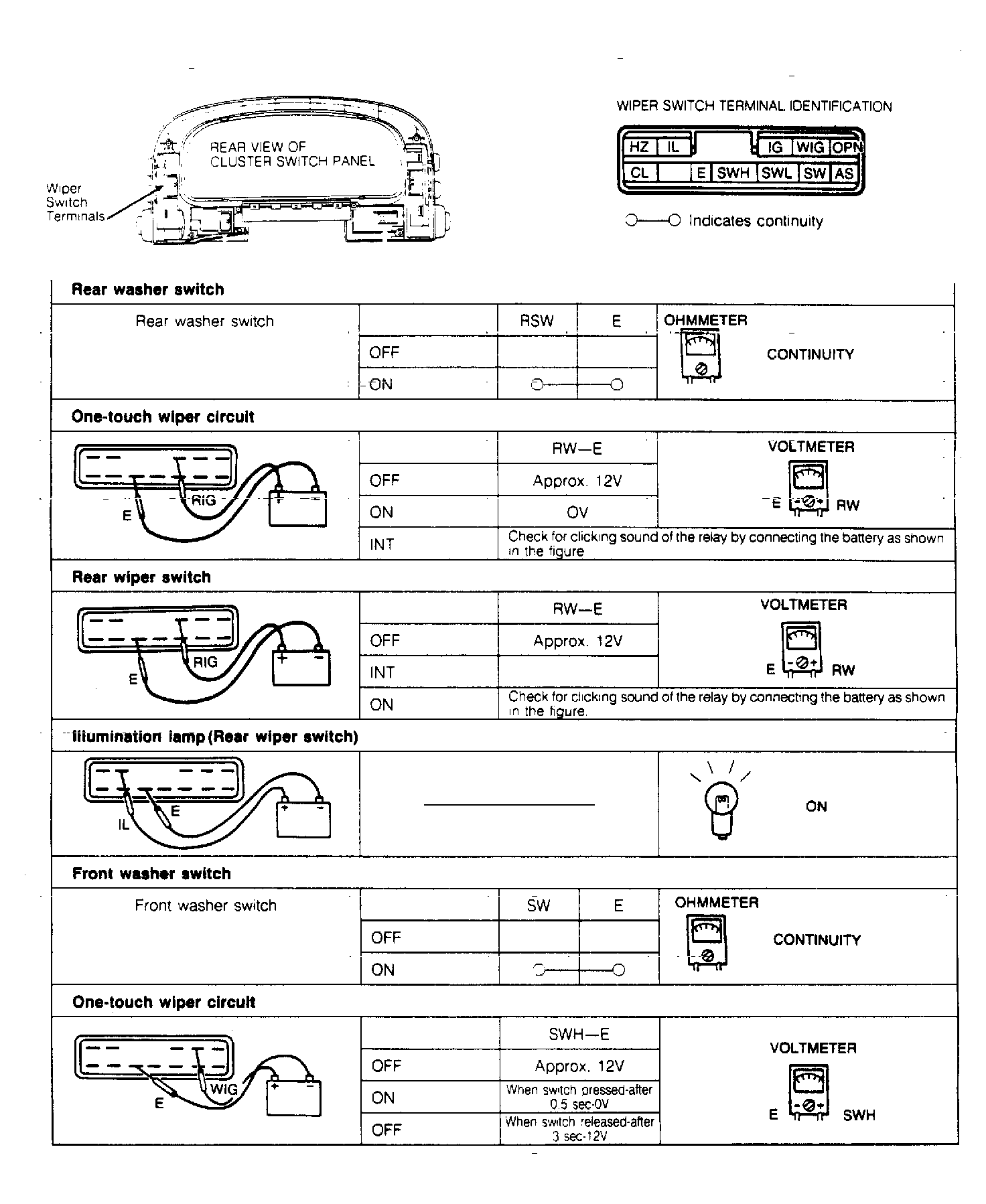

Fig 1: Wiper System Testing Procedures (1 of 2)
G90E01266Courtesy of MAZDA MOTORS CORP.

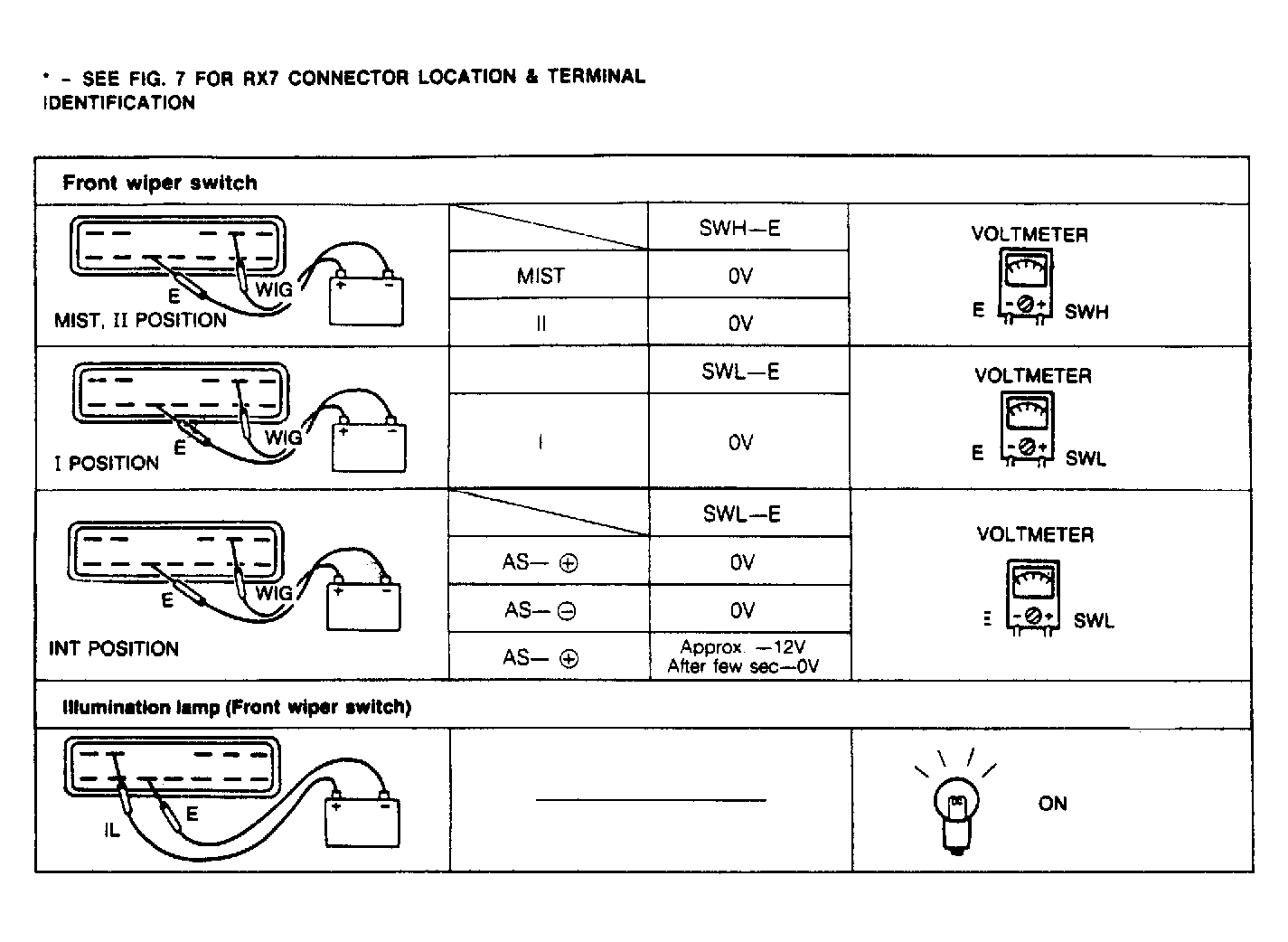

Fig 2: Wiper System Testing Procedures (2 of 2)
G90G01267Courtesy of MAZDA MOTORS CORP.
