Body Control Module: Locations

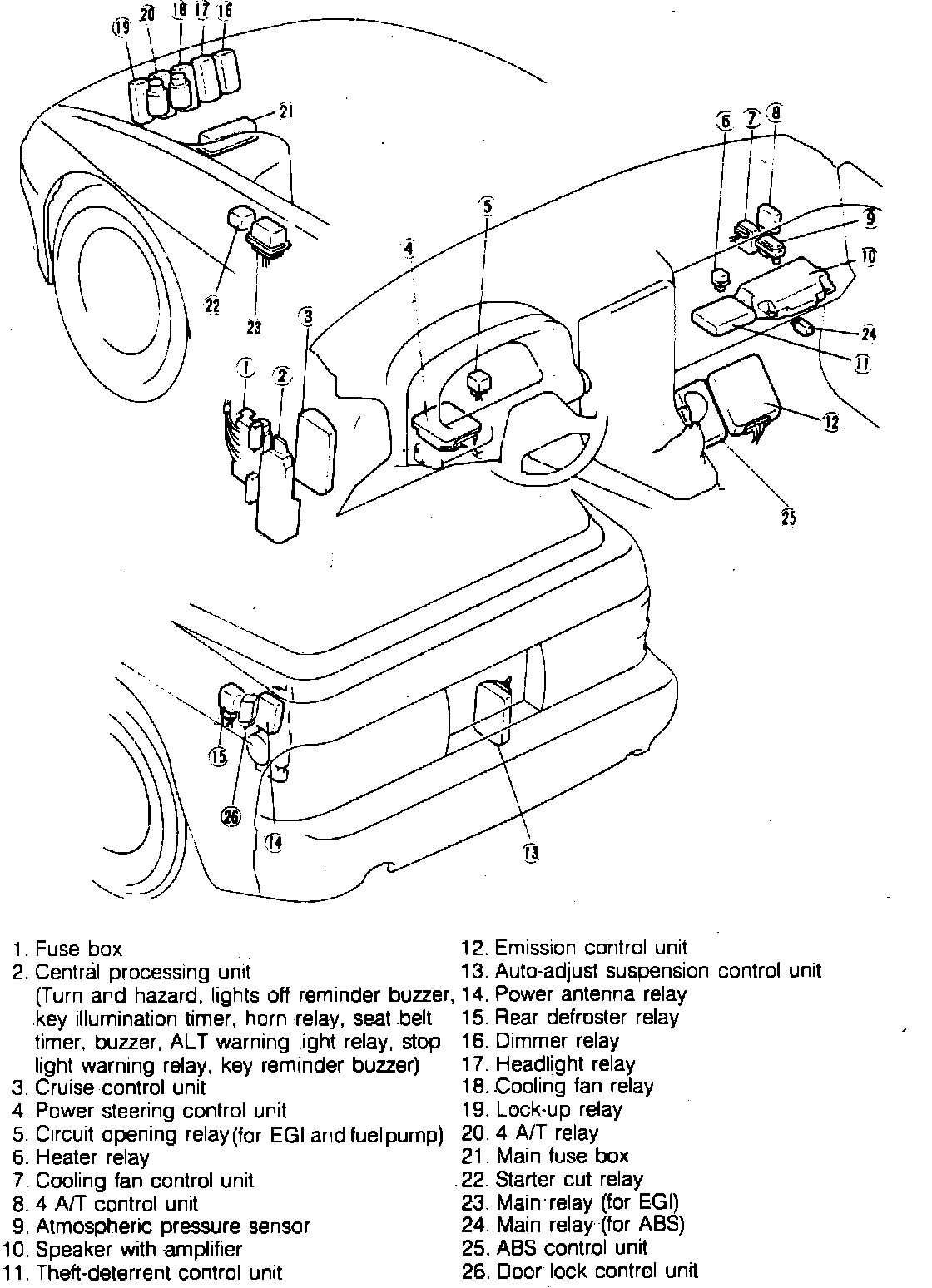

Relays & control units.:

In Passenger Compartment, On LH Kick Panel

Applicable to: RX-7
