Engine Control Module

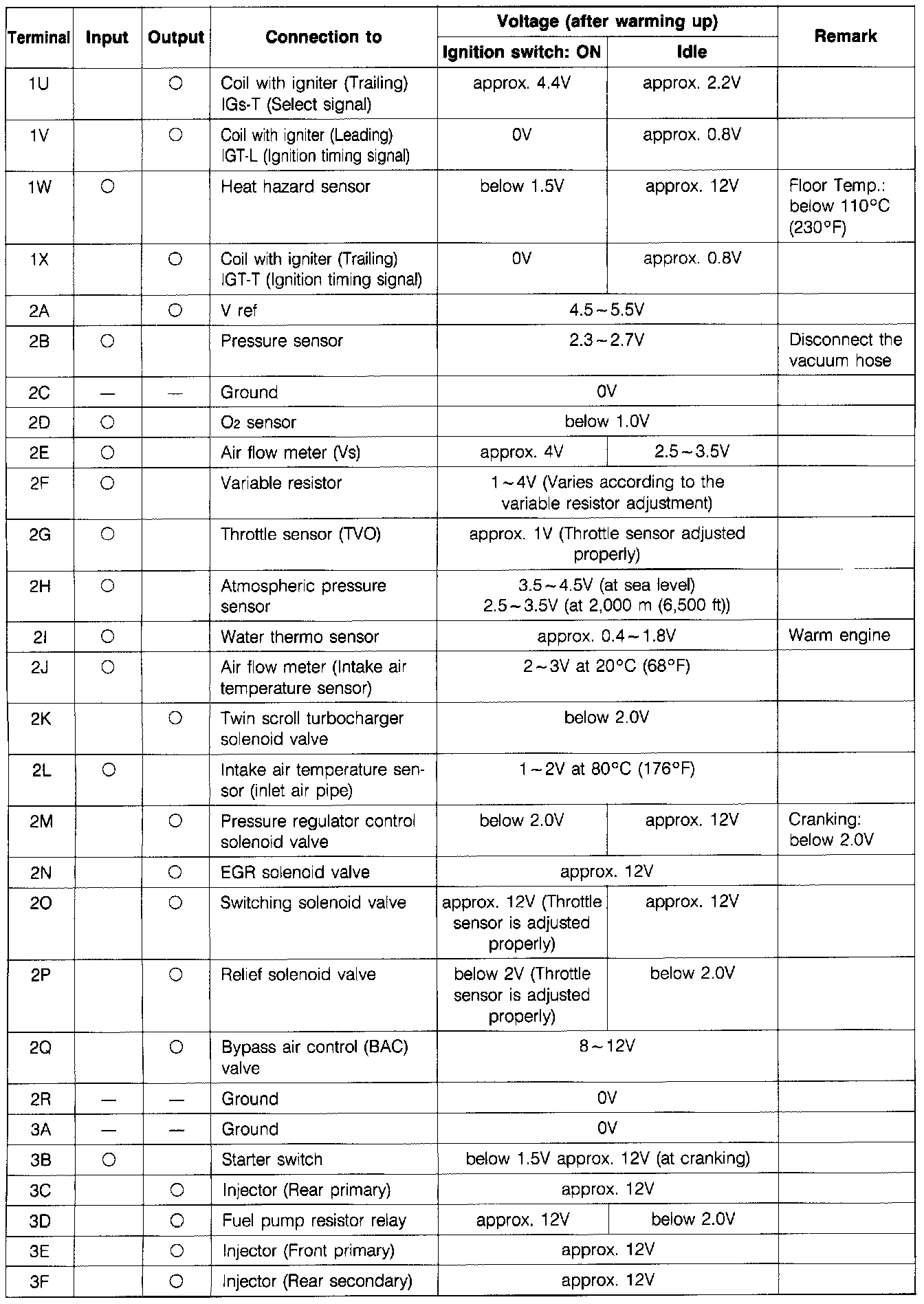

Control Unit Voltage Specification Chart:

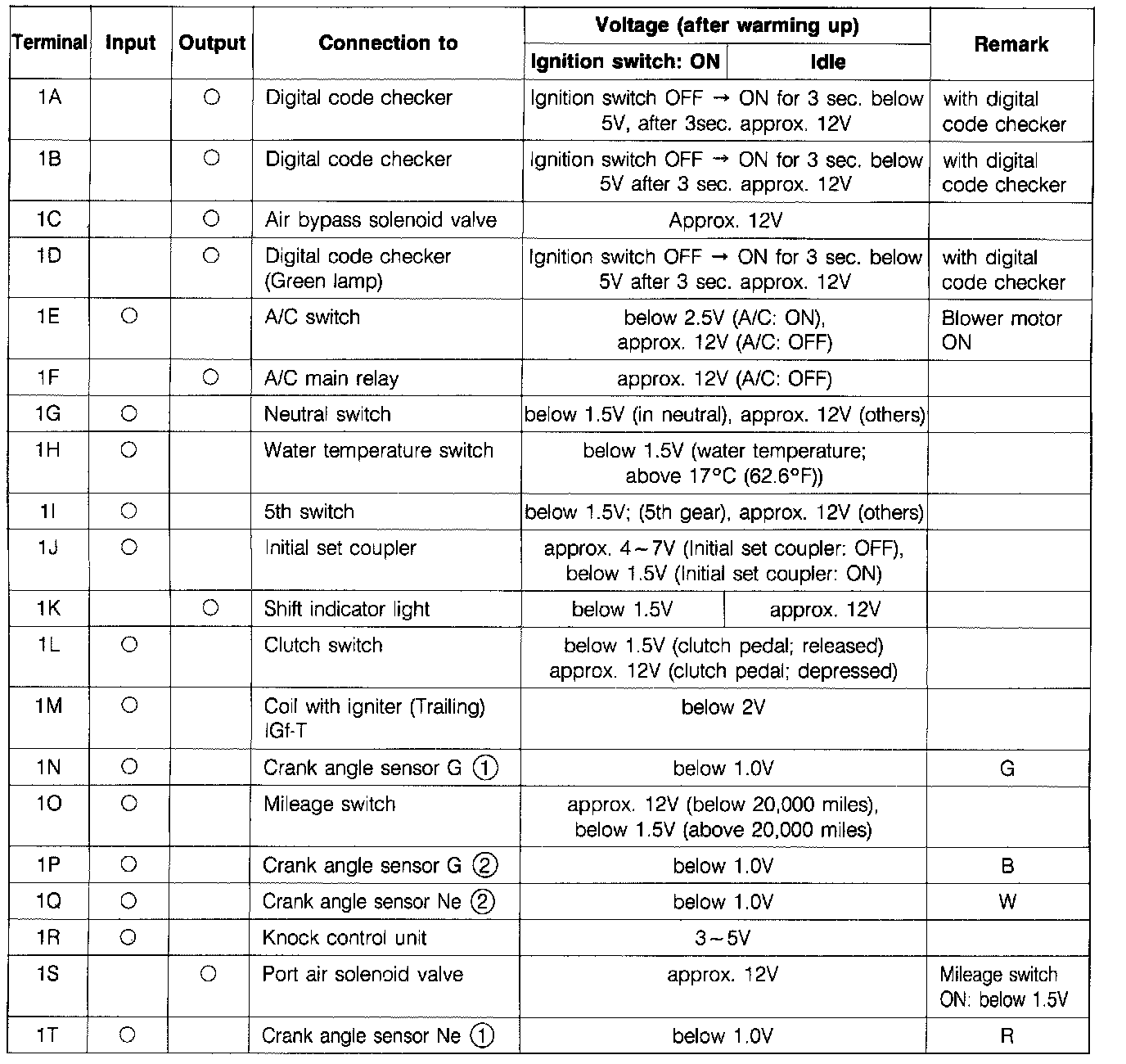

Control Unit Voltage Specification Chart:



Control Unit Voltage Specification Chart:
