Neutral Switch

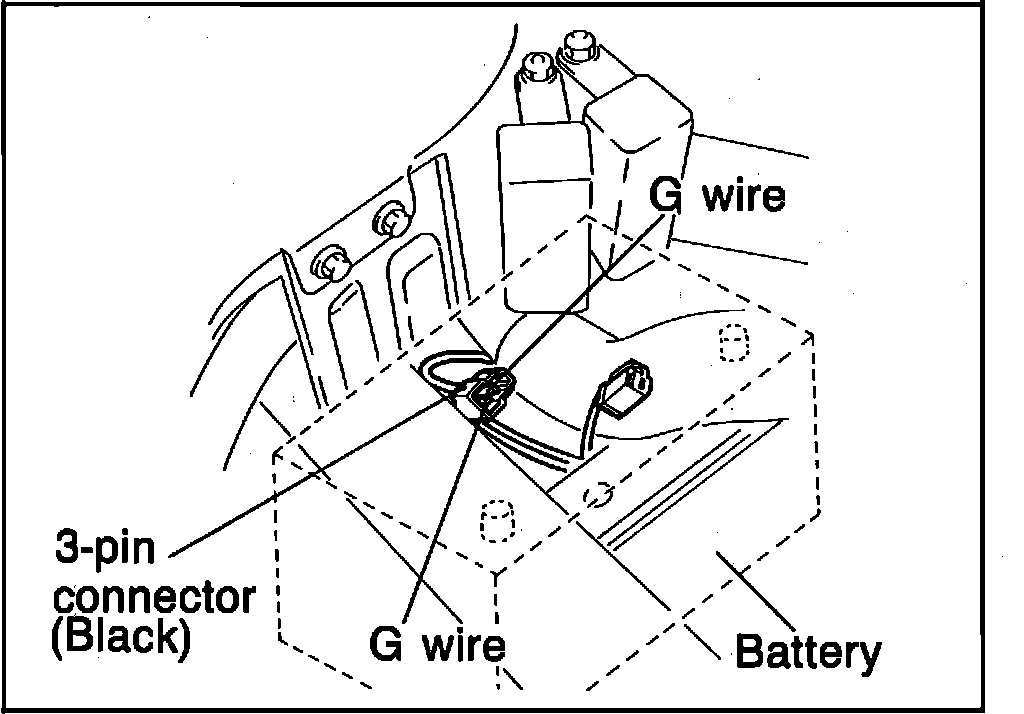

Fig. 20 Neutral Switch Inspection:

1. Disconnect neutral switch connector Fig. 20.
2. Connect a circuit tester to neutral switch and check continuity between terminals. There should be no continuity in Neutral and there should be continuity in all other ranges.
