Vehicle Speed Sensor: Locations

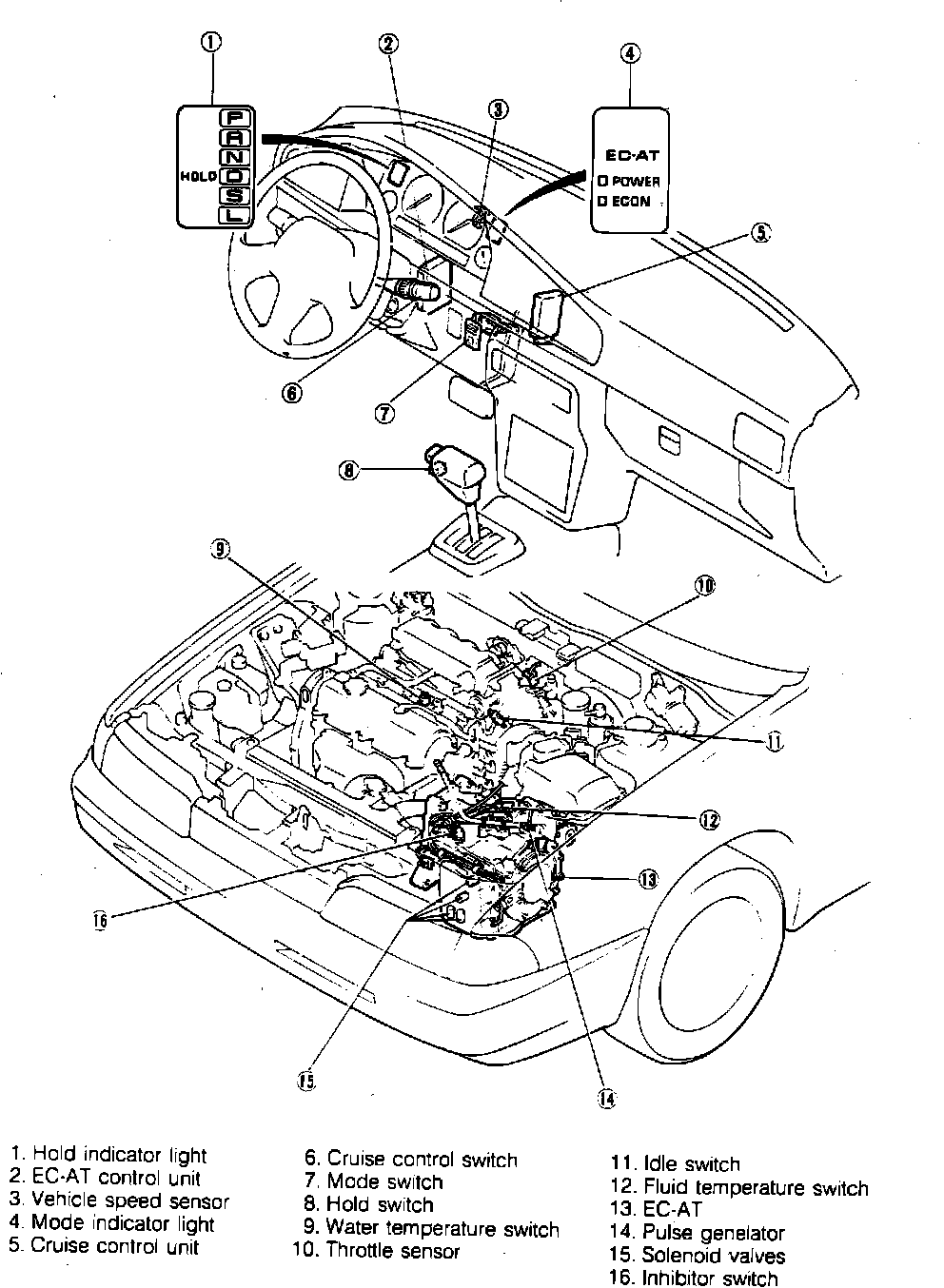

Automatic transmission components.:
Integral With Instrument Cluster
Applicable to: 1988 626 & MX-6
