Distributor: Service and Repair

REMOVAL

1. Remove high tension leads.
2. On non-turbo models, disconnect vacuum hoses and wiring.
3. On turbo models, disconnect coupler.
4. On all models, loosen distributor lock bolts and remove distributor. Do not turn crankshaft after distributor has been removed.

INSTALLATION

1. Apply engine oil to O-ring and driven gear.
2. Install distributor and connect high tension leads and distributor connector.
3. Torque lock bolts to 14 - 18 ft lb.
4. Adjust ignition timing.

DISTRIBUTOR EXPLODED VIEW

Non-Turbo

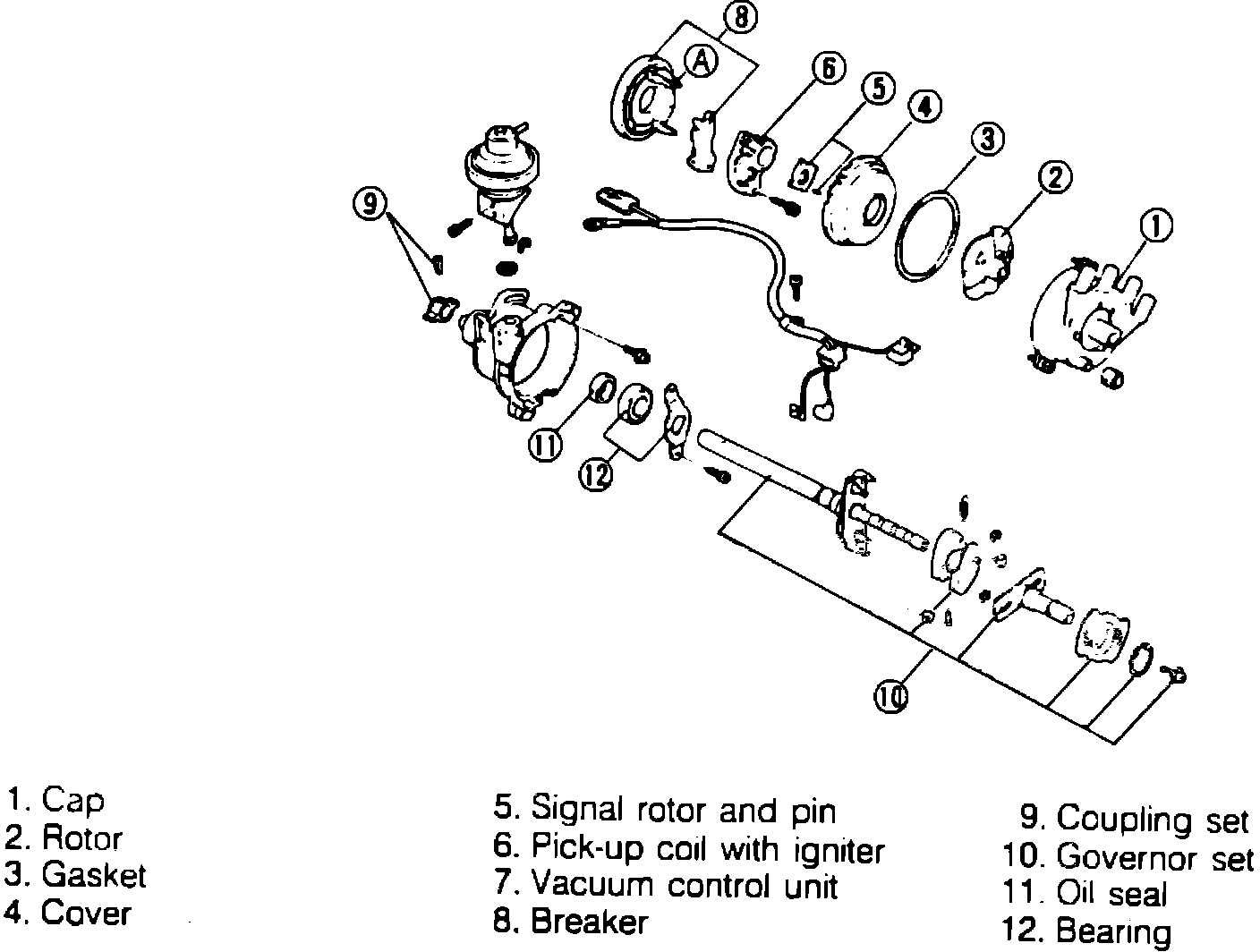

Fig. 7 Disassembled view of breakerless type distributor. Non-turbocharged:

Turbo

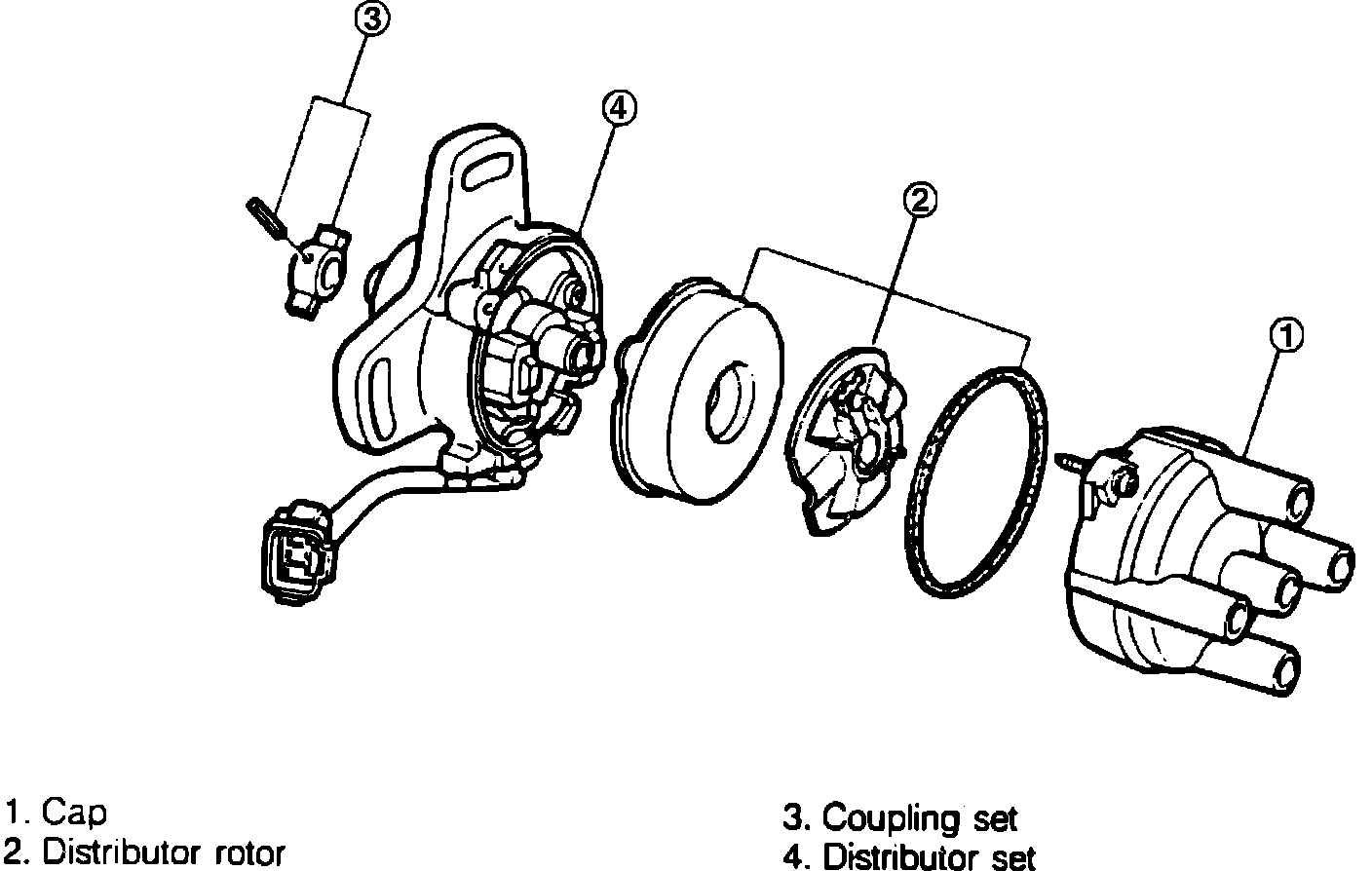

Fig. 8 Disassembled view of breakerless type distributor. Turbocharged:
