Crank Angle Sensor

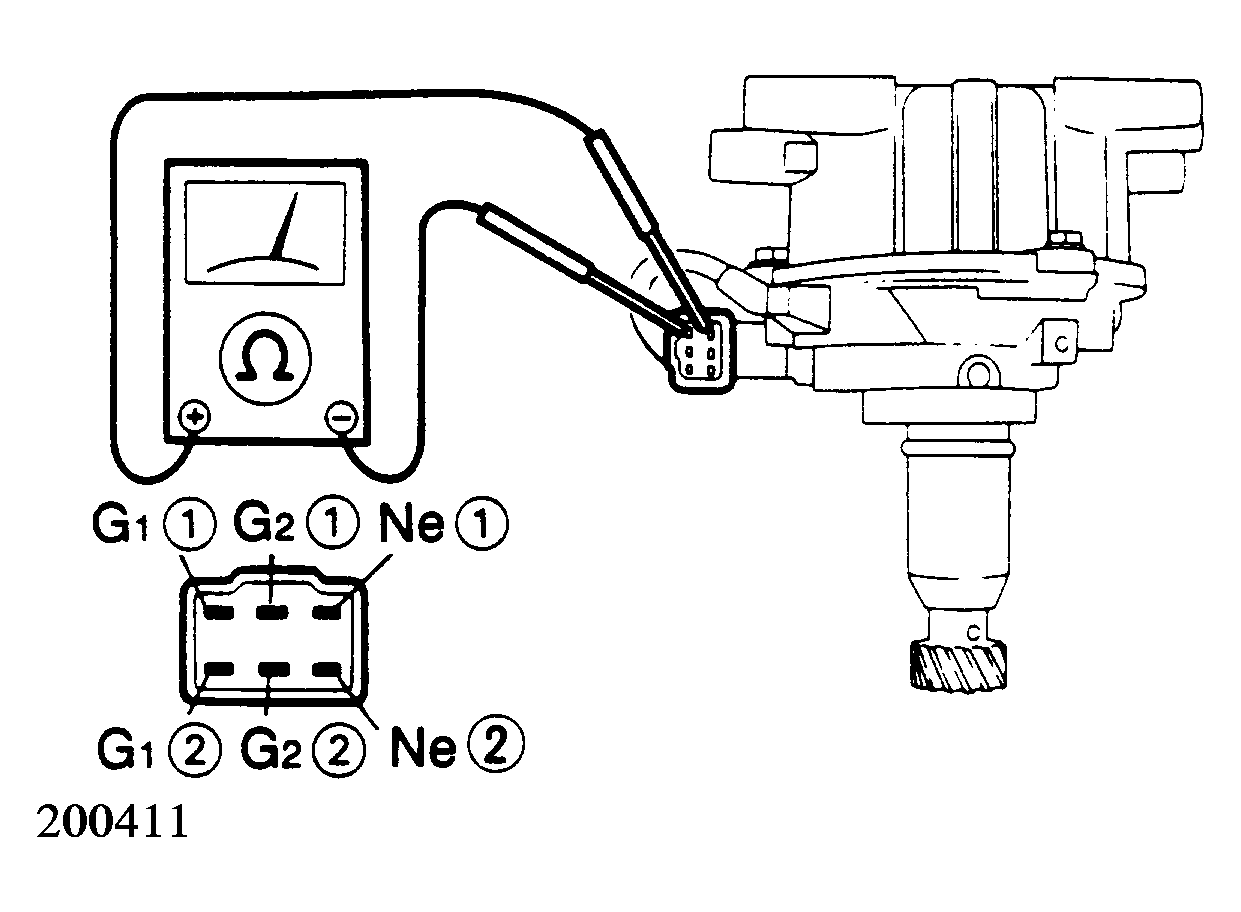

Disconnect crank angle sensor connector from distributor. Measure resistance between terminals indicated in CRANK ANGLE SENSOR RESISTANCE table. See Fig 1 . If resistance is not as specified, replace distributor assembly.
CRANK ANGLE SENSOR RESISTANCE
| Terminal | Resistance - Ohms @ 68°F (20°C) |
|---|---|
| Ne(1) To Ne(2) | 140-180 |
| G1(1) To G1(2) | 140-180 |
| G2(2) To G2(2) | 140-180 |
