Knock Control System Troubleshooting

Knock Control System Troubleshooting:

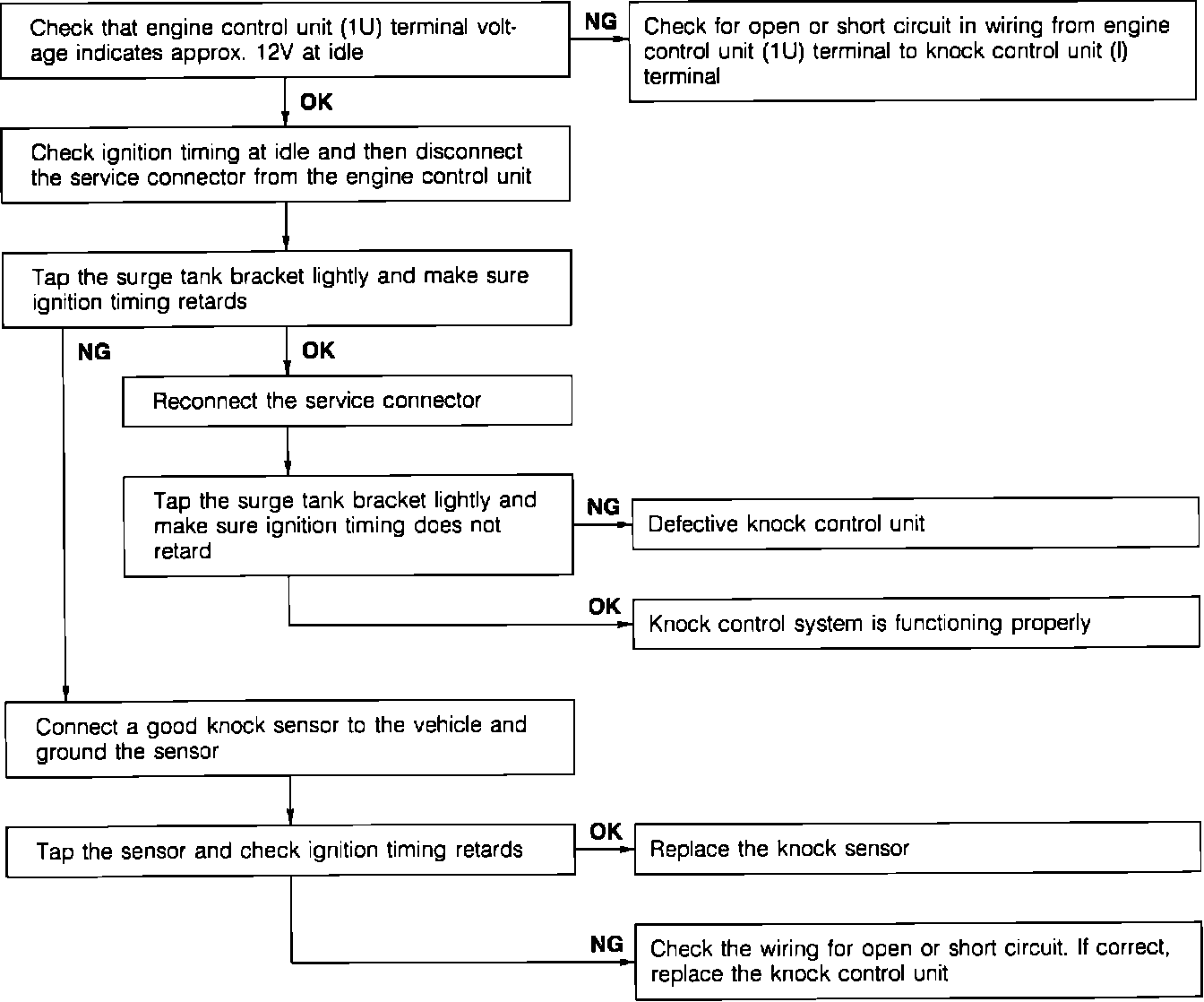

TROUBLESHOOTING CHART



ECU Pin Connections:




ECU PIN CONNECTIONS


NOTE: The ECU is located beneath center of dash.
