Torque Specifications

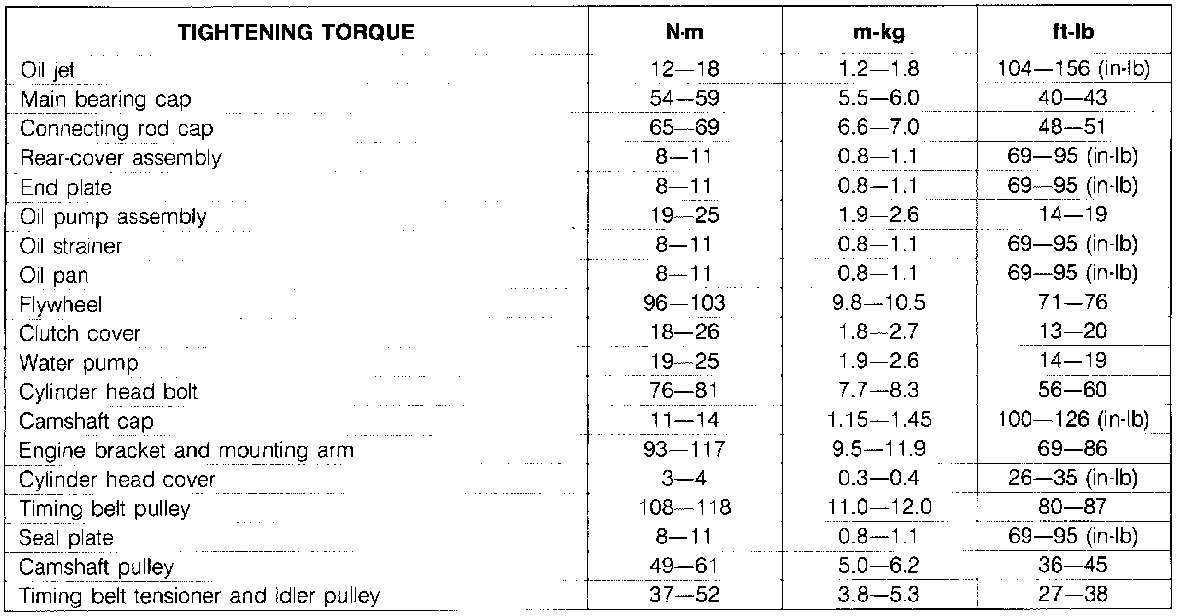

Torque Chart:






Head Bolt Torque Sequence:






Cam Cap Torque Sequence:

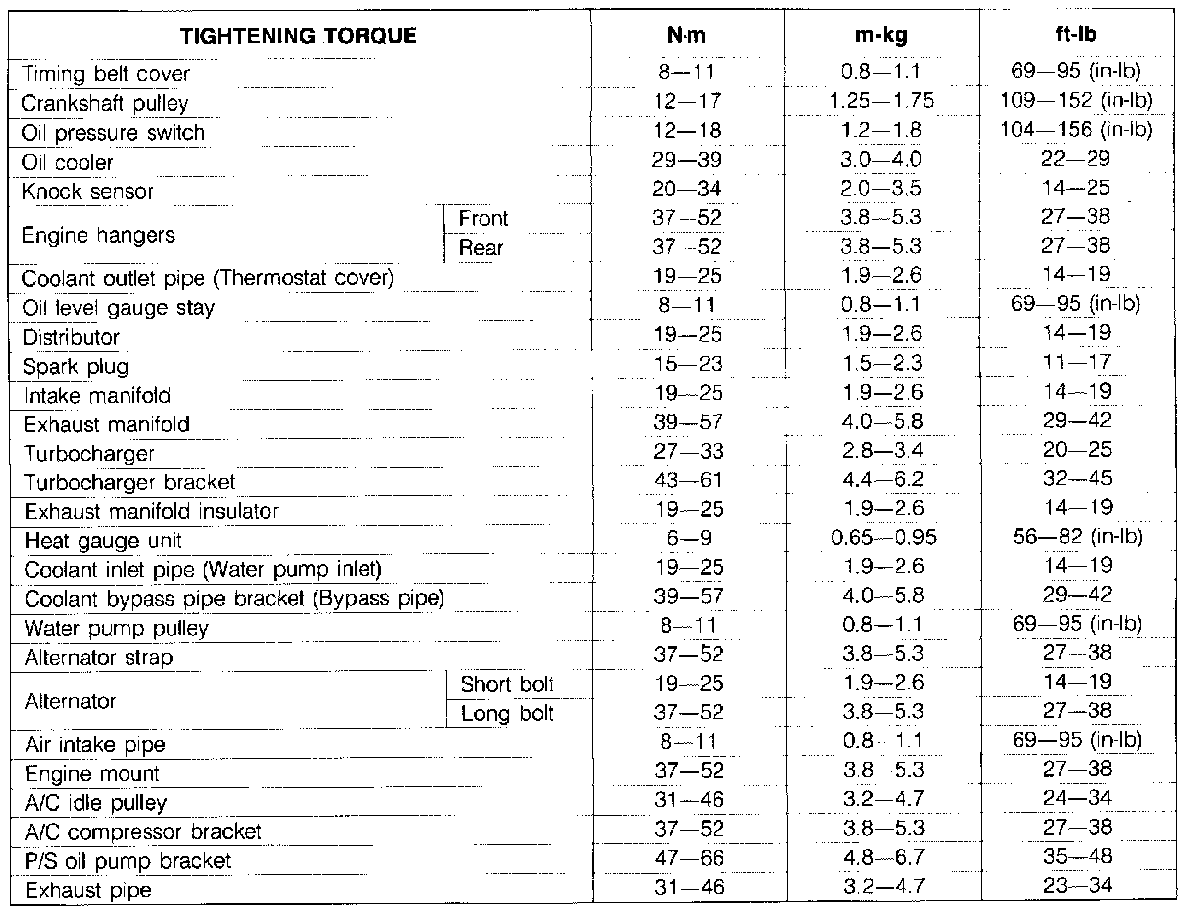

Torque Chart:






Torque Chart:






Torque Chart:






Torque Chart:
