High Tension Wire Routing

For RX7 high tension wire routing, see Fig 1.

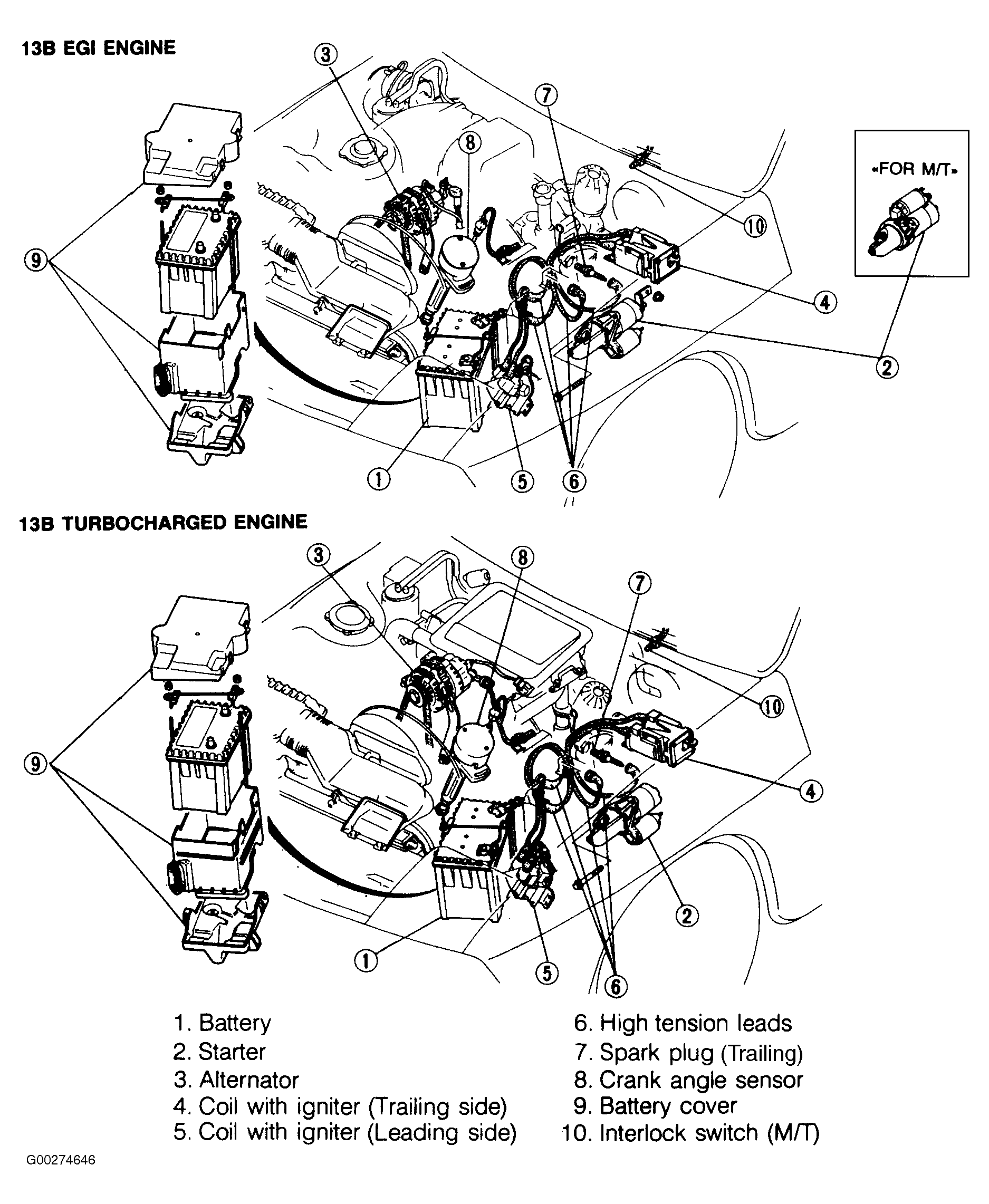

Fig 1: Identifying High Tension Wire Location
G00274646Courtesy of MAZDA MOTORS CORP.
