Service Indicator & Warning Lights: Notes
NOTE:
All warning lights should come on with the ignition. Any warning light which does not come with the ignition must be checked and repaired.

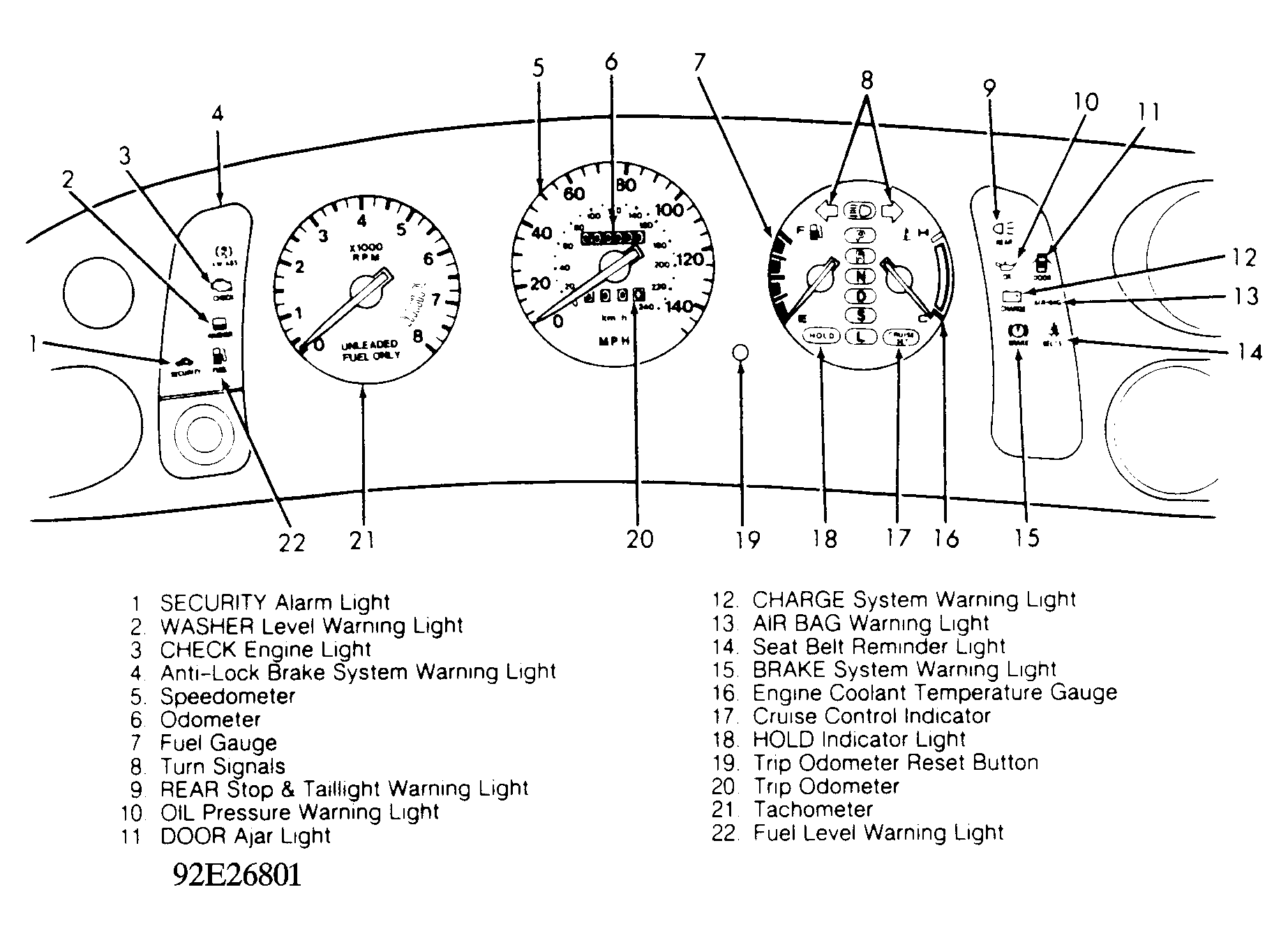

Fig 1: Dash Gauges & Warning Lights (1989-91)
Courtesy of MAZDA MOTOR OF AMERICA. INC.

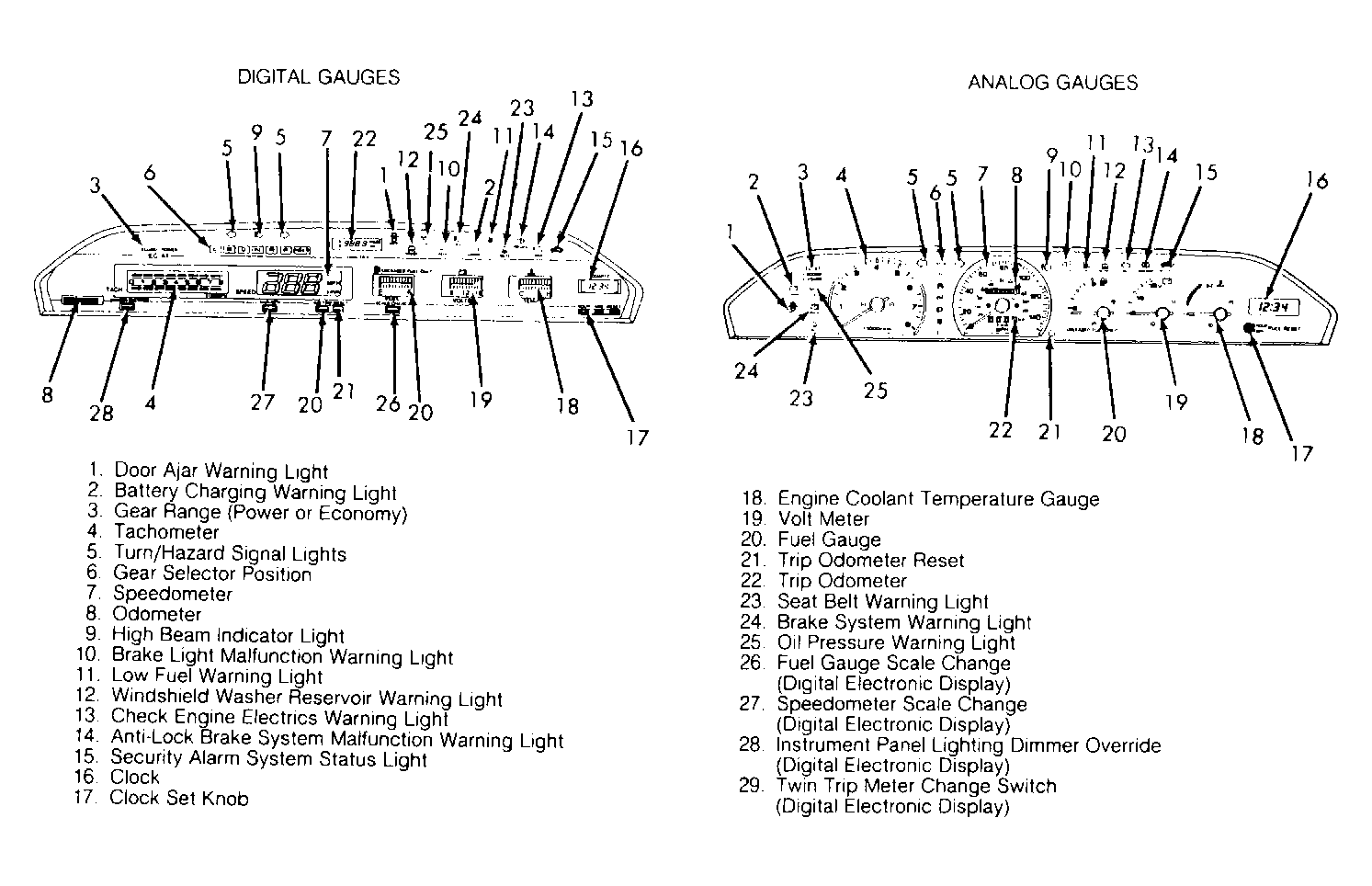

Fig 2: Dash Gauges & Warning Lights (1992)
Courtesy of MAZDA MOTOR OF AMERICA. INC.
