Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Behind center of dash, near ECU.
Cruise Control Unit Behind left side of dash, above fuse block.
Engine Control Unit (ECU) Behind center of dash. See Figure .

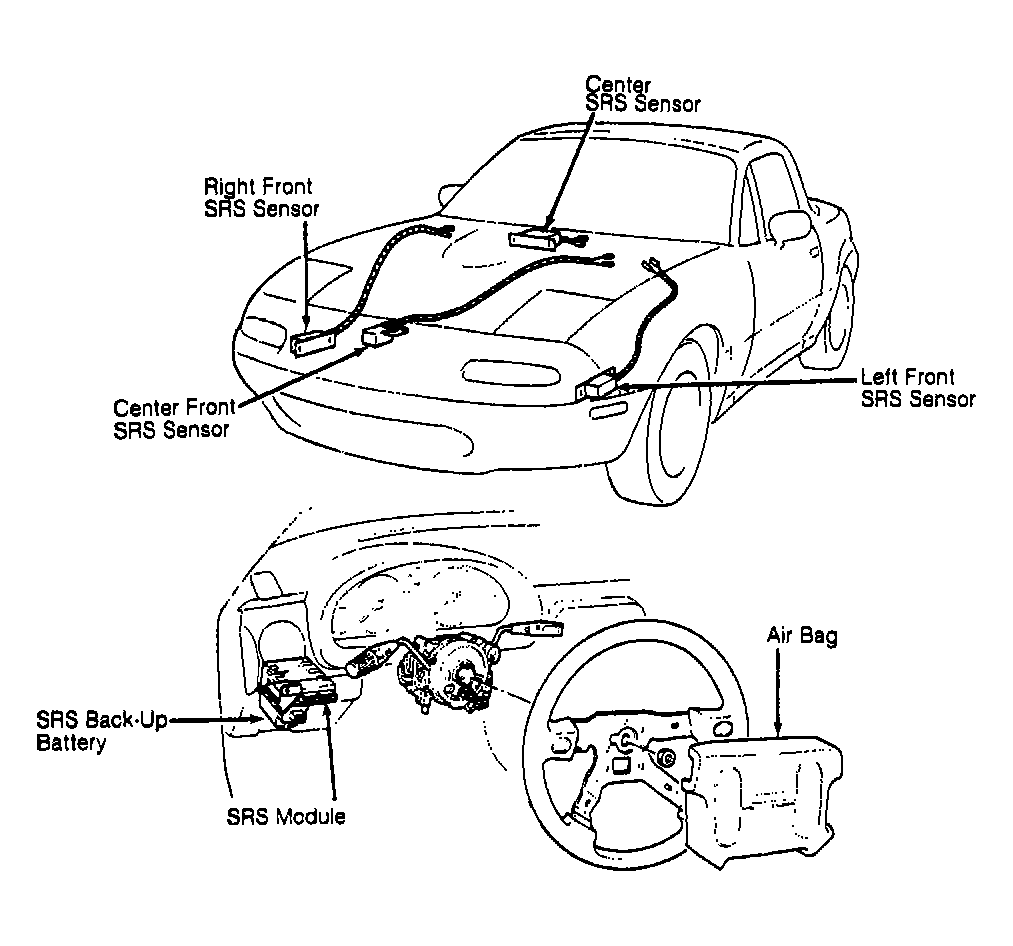

Supplemental Safety Restraint (SRS) Module Behind left side of dash. See Figure .
