Subframe: Service and Repair

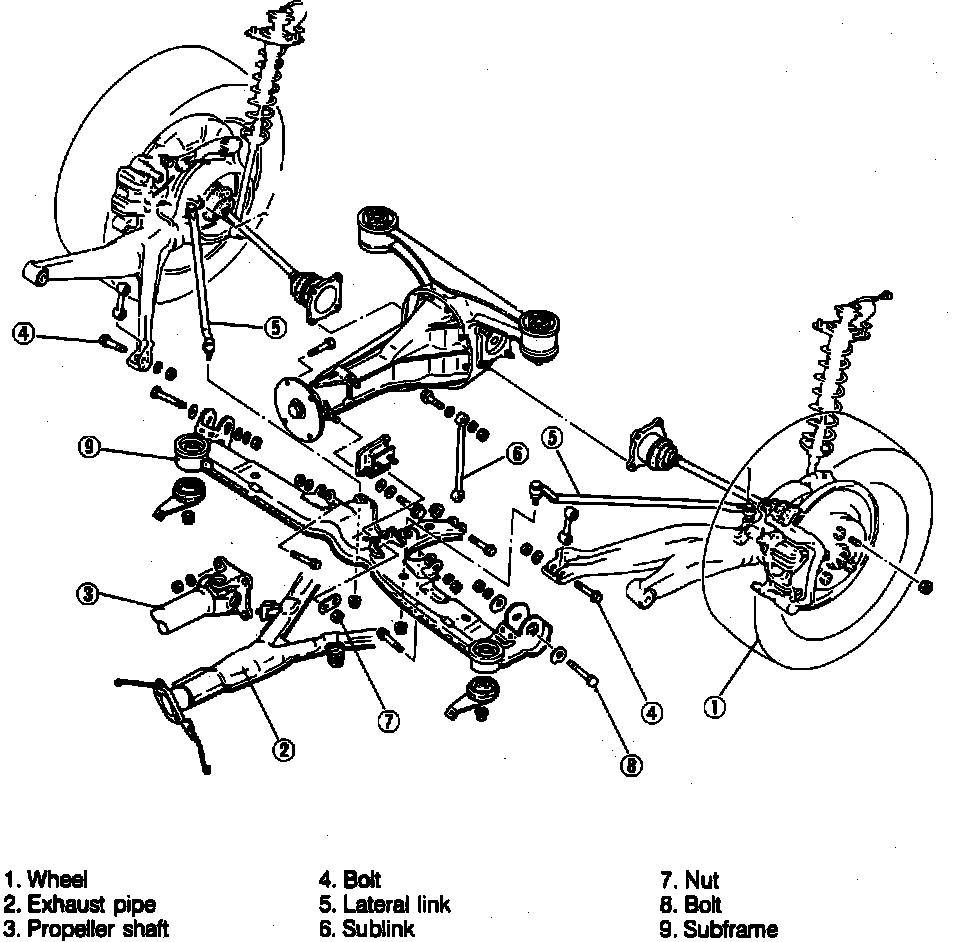

Fig. 10 Subframe Assembly:





Remove subframe assembly in numerical sequence shown in Fig. 10. Reverse numerical sequence for installation.
