Control Module, A/T

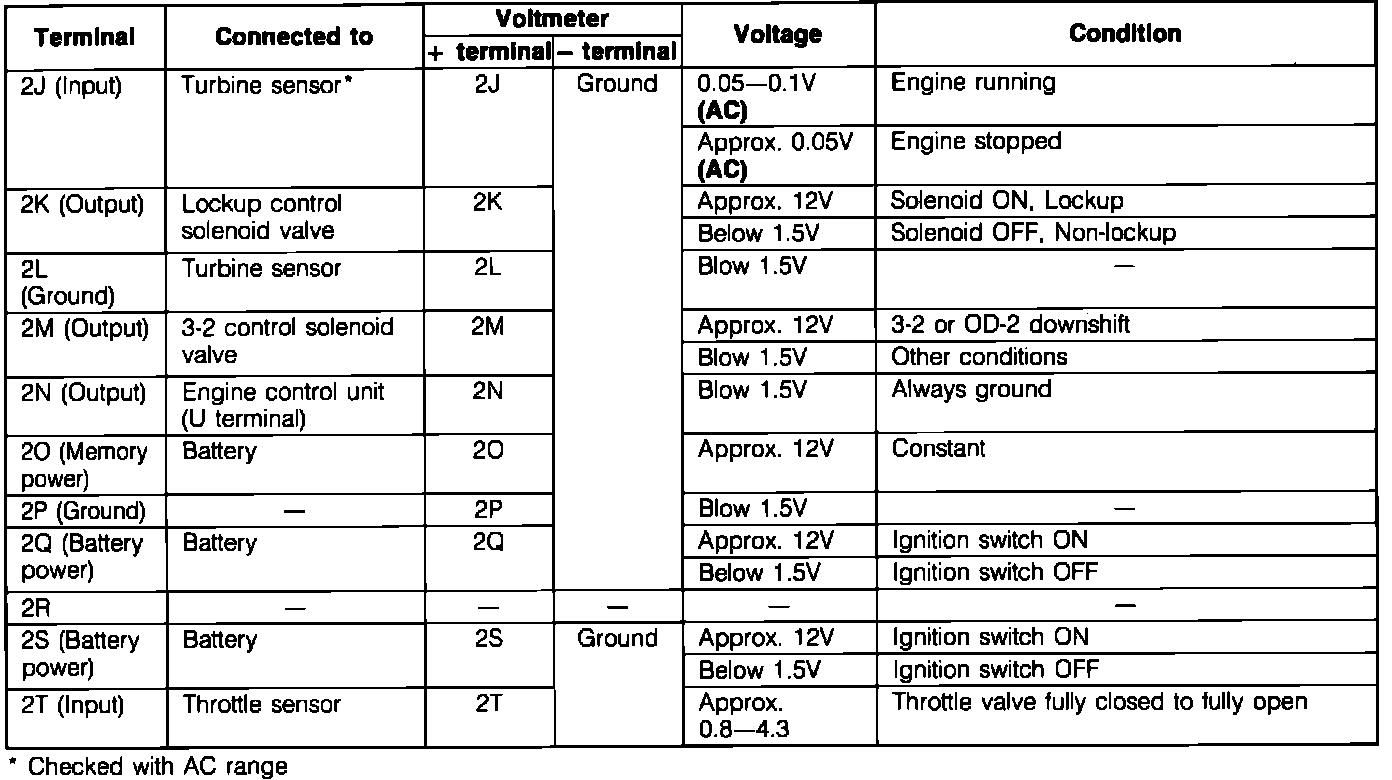

EC-AT Control System. ECU Pin Voltage Chart:

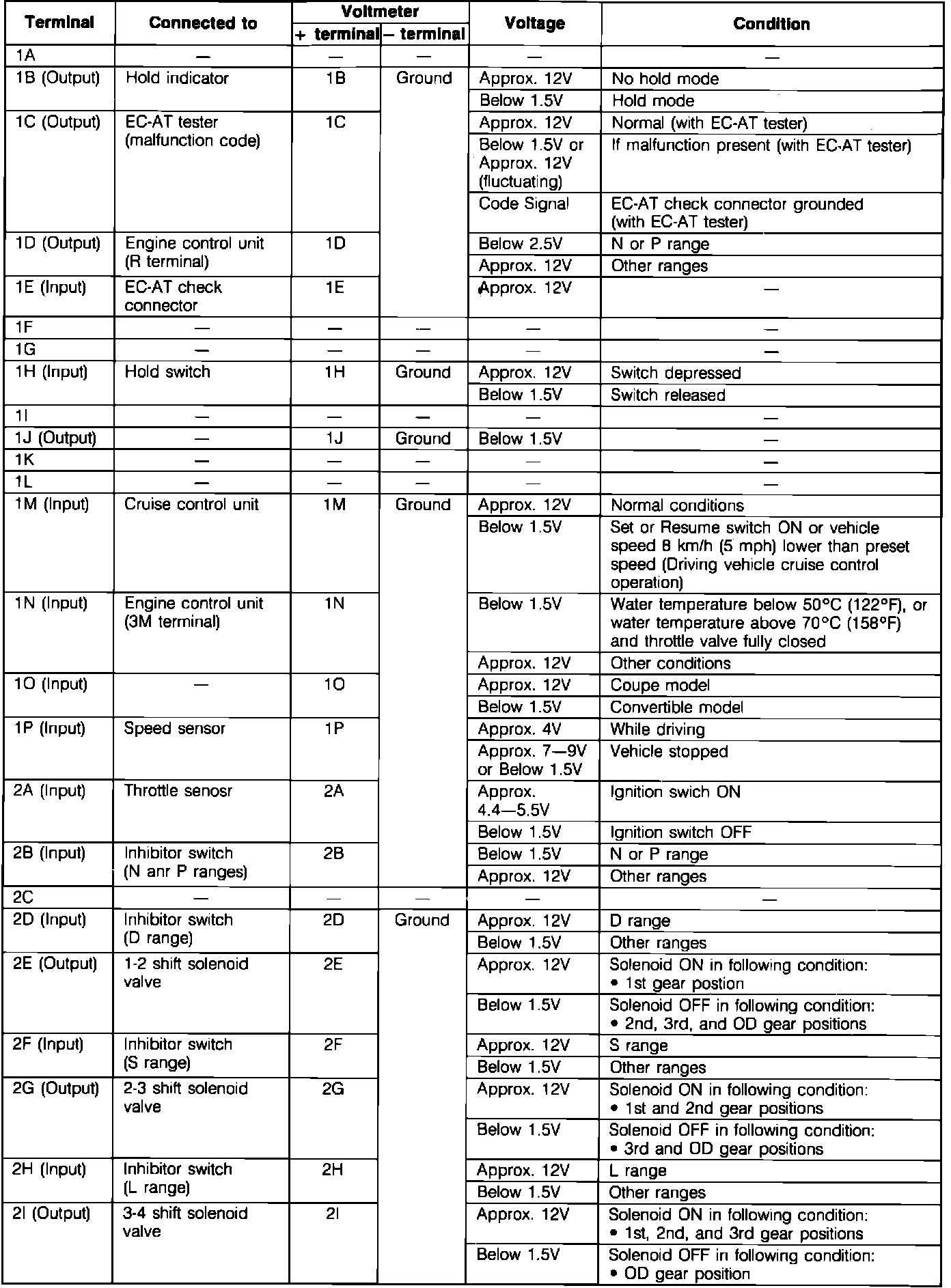

EC-AT Control System. ECU Pin Voltage Chart:



EC-AT Control System. ECU Pin Voltage Chart:
