Connector Views

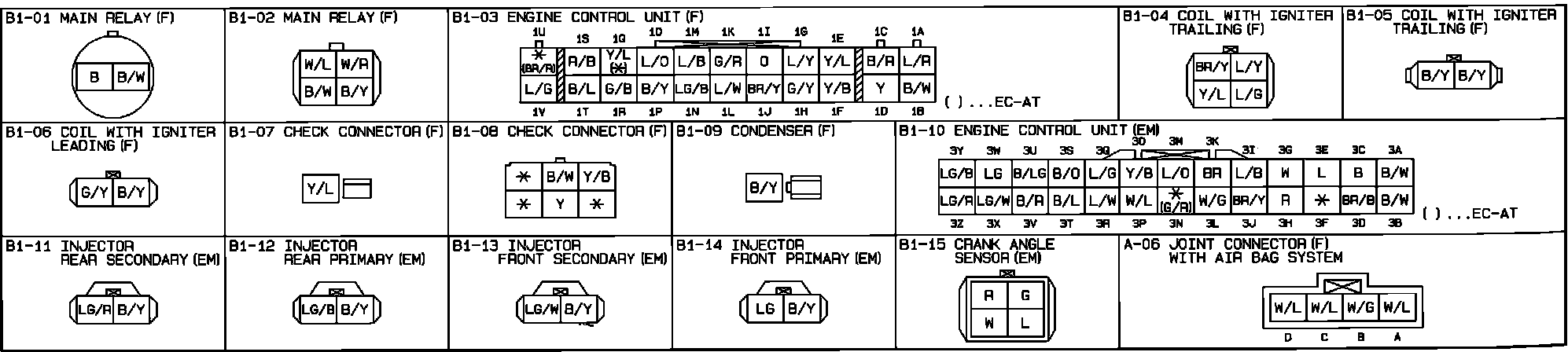

Ignition And Engine Control System. Non-Turbo. Connector Identification:

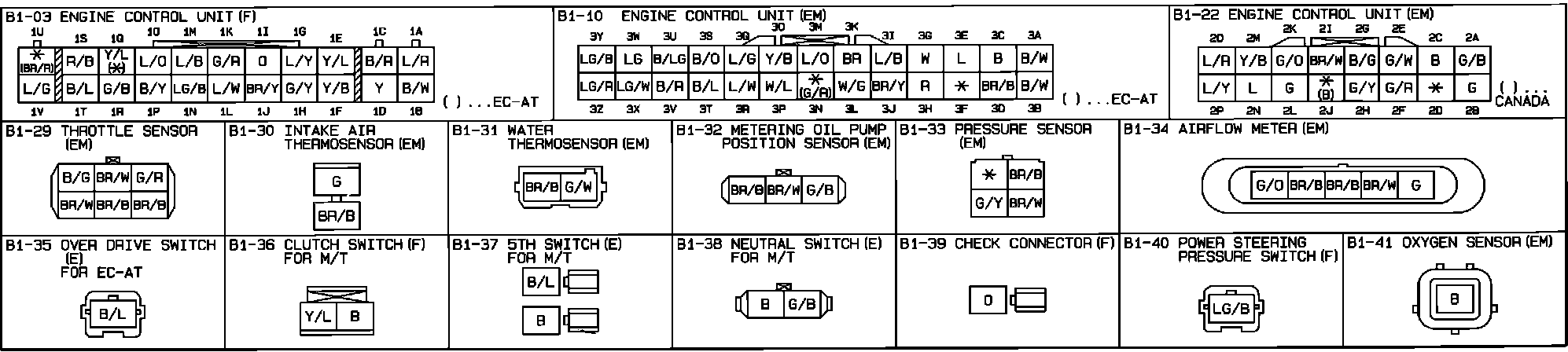

Engine Control System. Non-Turbo. Connector Identification:

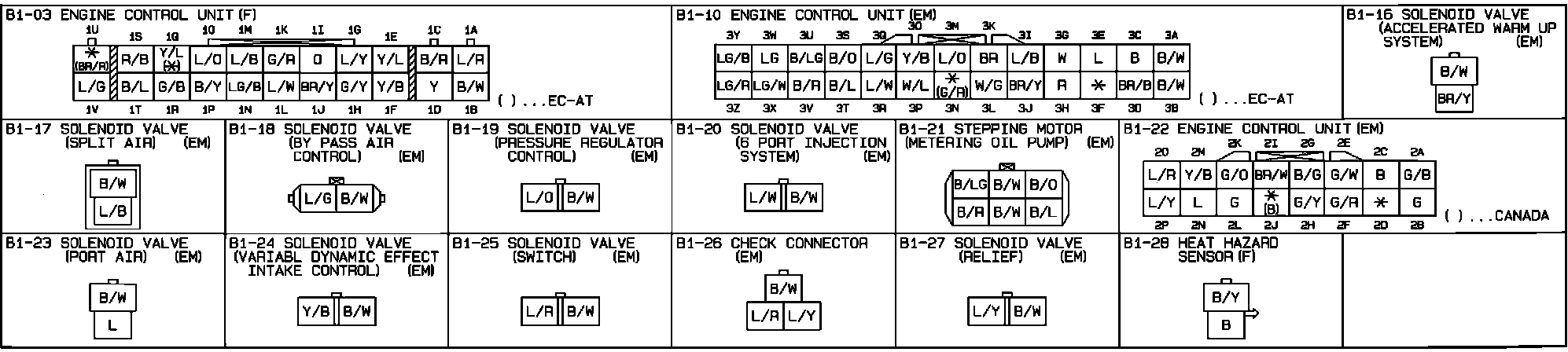

Engine Control System. Non-Turbo. Connector Identification:
