Control Module: Testing and Inspection


1. With ignition switch "ON," check EC-AT control unit terminal voltages, referring to terminal voltage chart. Control unit is behind right side kick panel.
2. If not correct, check and replace or repair defective component(s) and/or wiring.
3. If voltages are not correct and no other cause is detected, replace control unit.

TERMINAL VOLTAGE CHART

Part 1

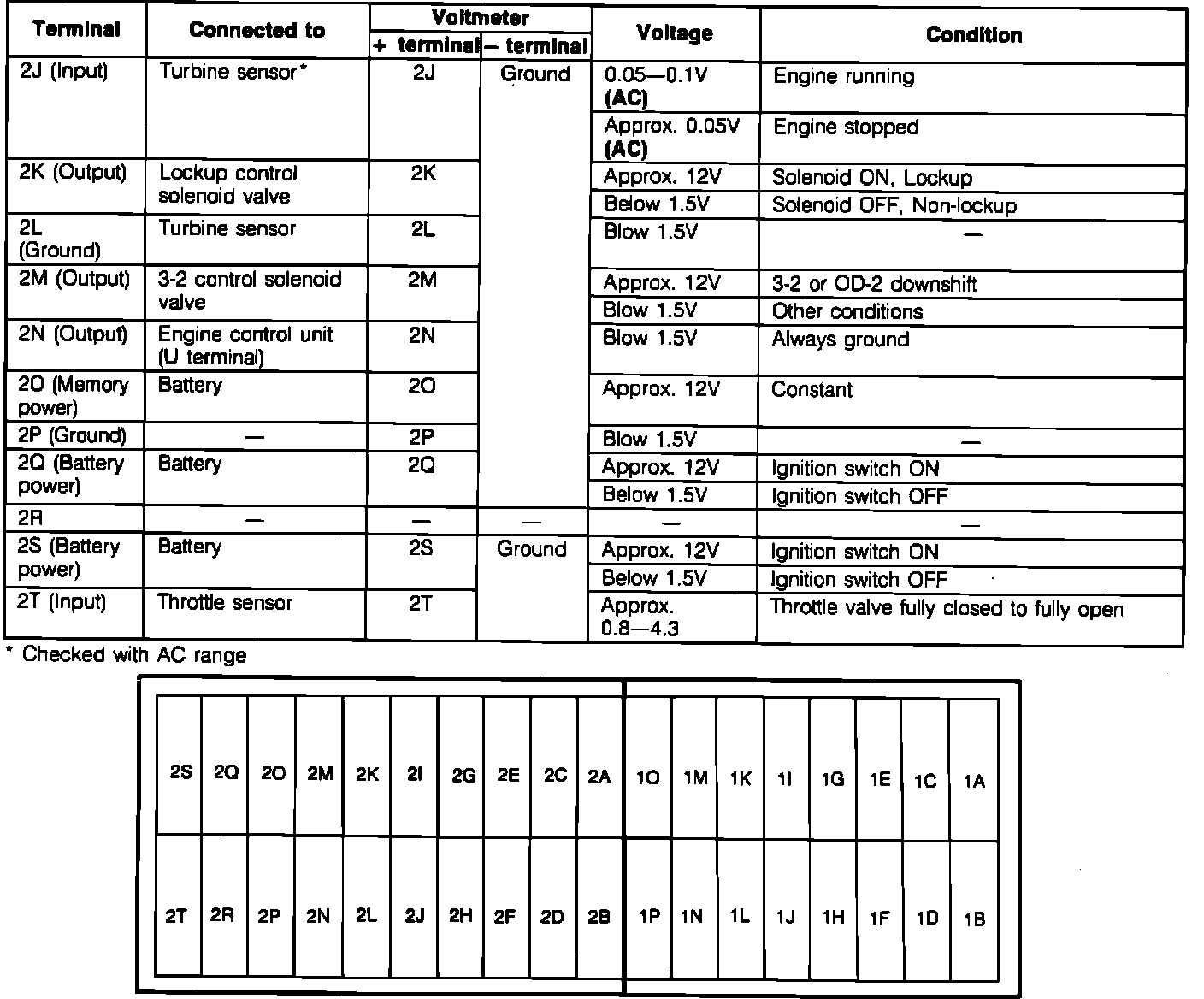

Terminal Voltage Chart (Part 1):






Part 2

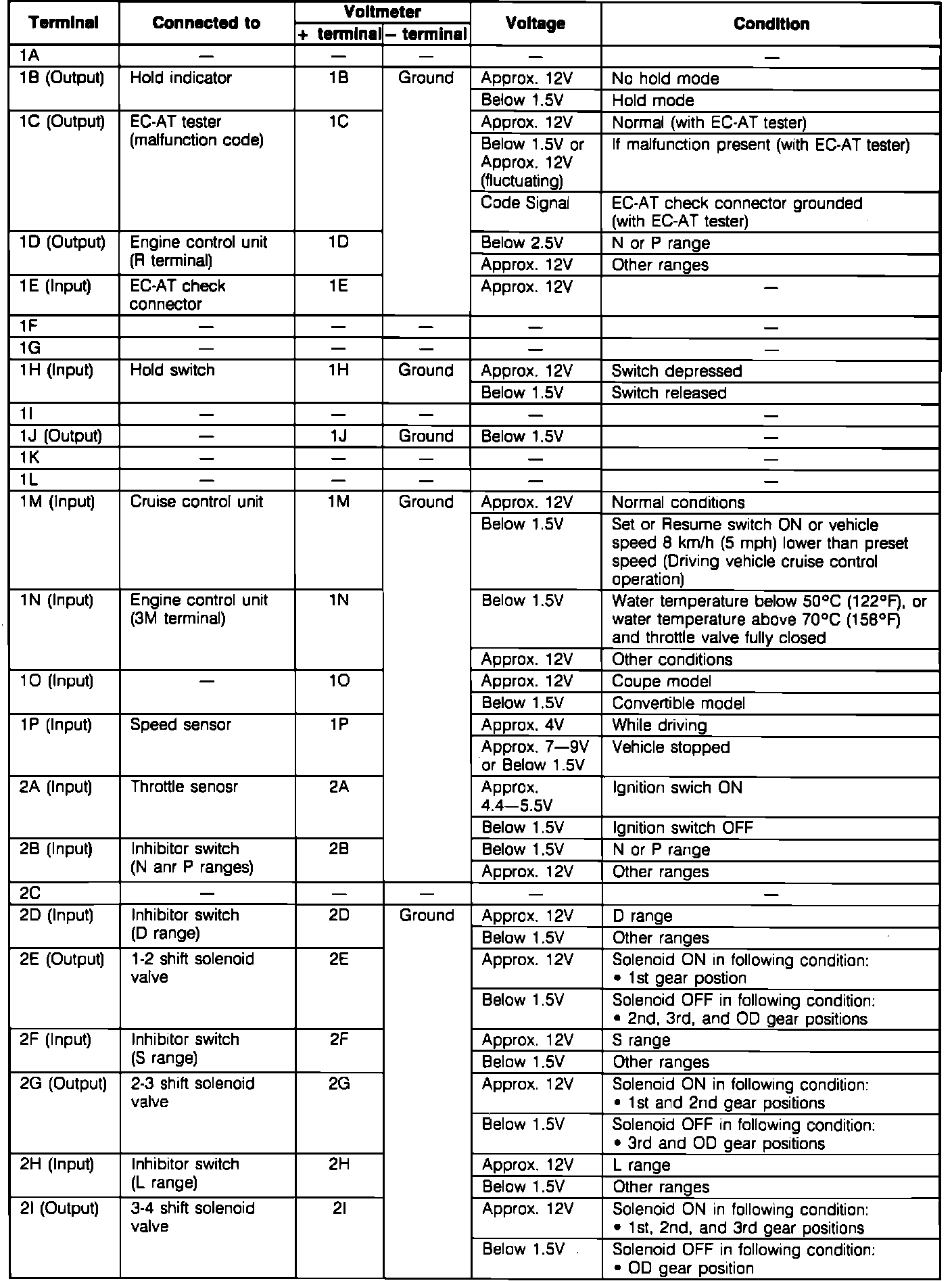

Terminal Voltage Chart (Part 2):
