Door Lock Control
For testing procedure, see
Fig 1
.

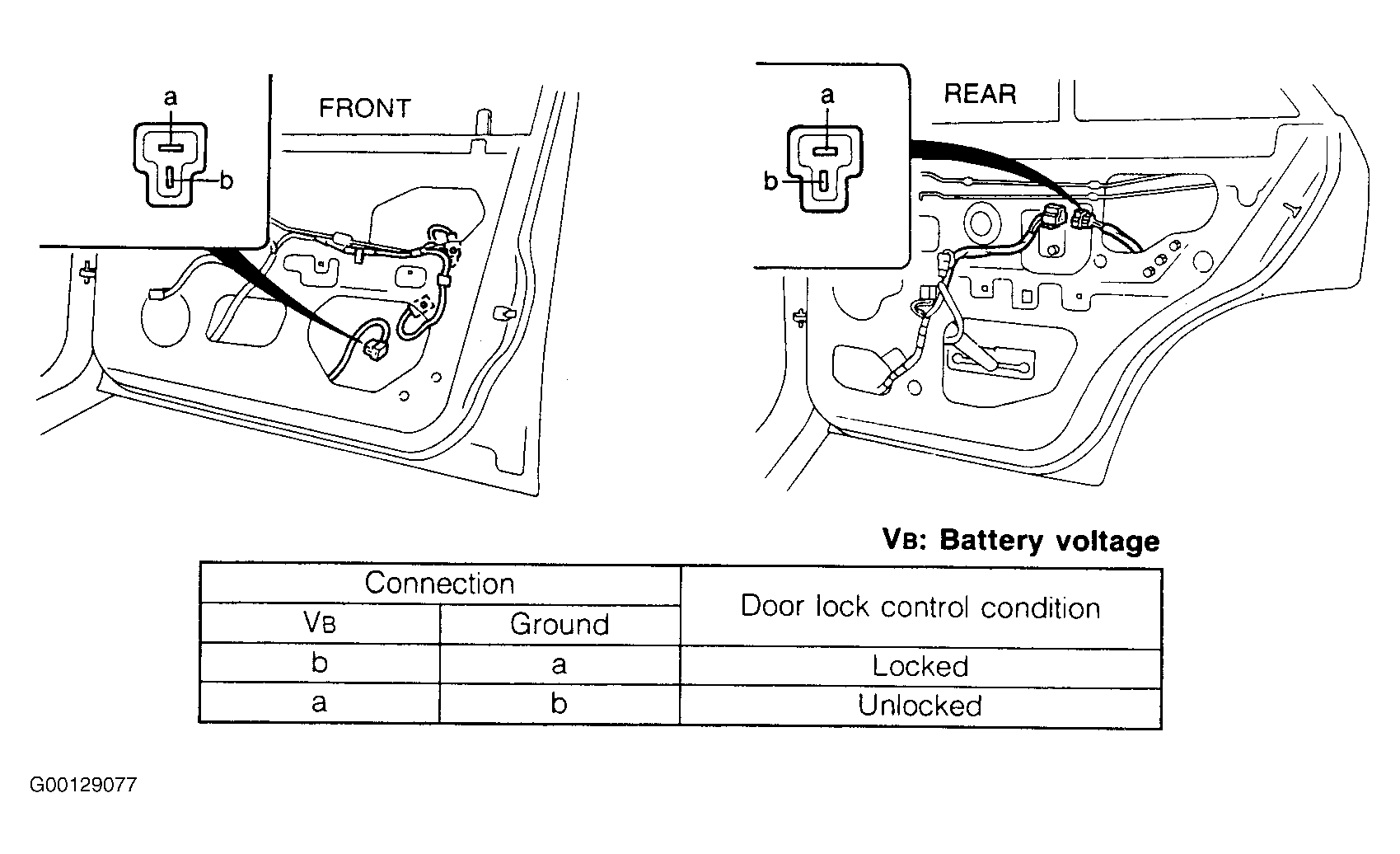

Fig 1: Door Lock ControlTesting Procedure
Courtesy of MAZDA MOTORS CORP.
