Door Lock Switch
For testing procedure, see
Fig 1
.

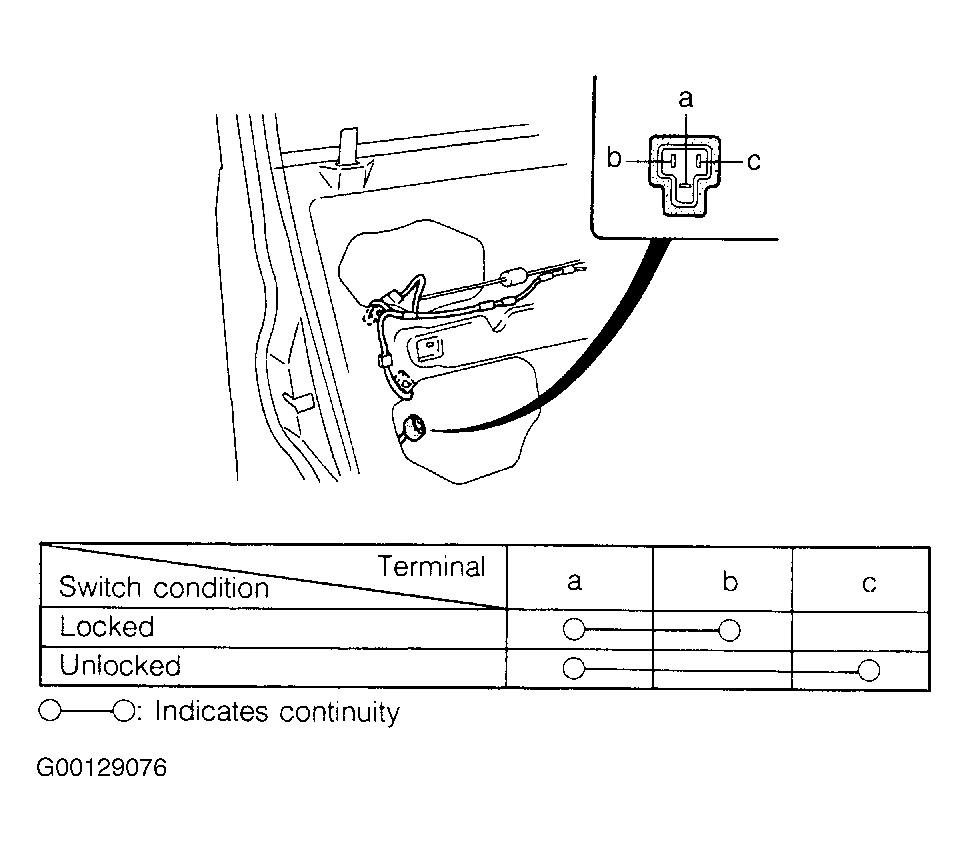

Fig 1: Door Lock SwitchTesting Procedure
Courtesy of MAZDA MOTORS CORP.
