Code 17 & 24: Feedback System

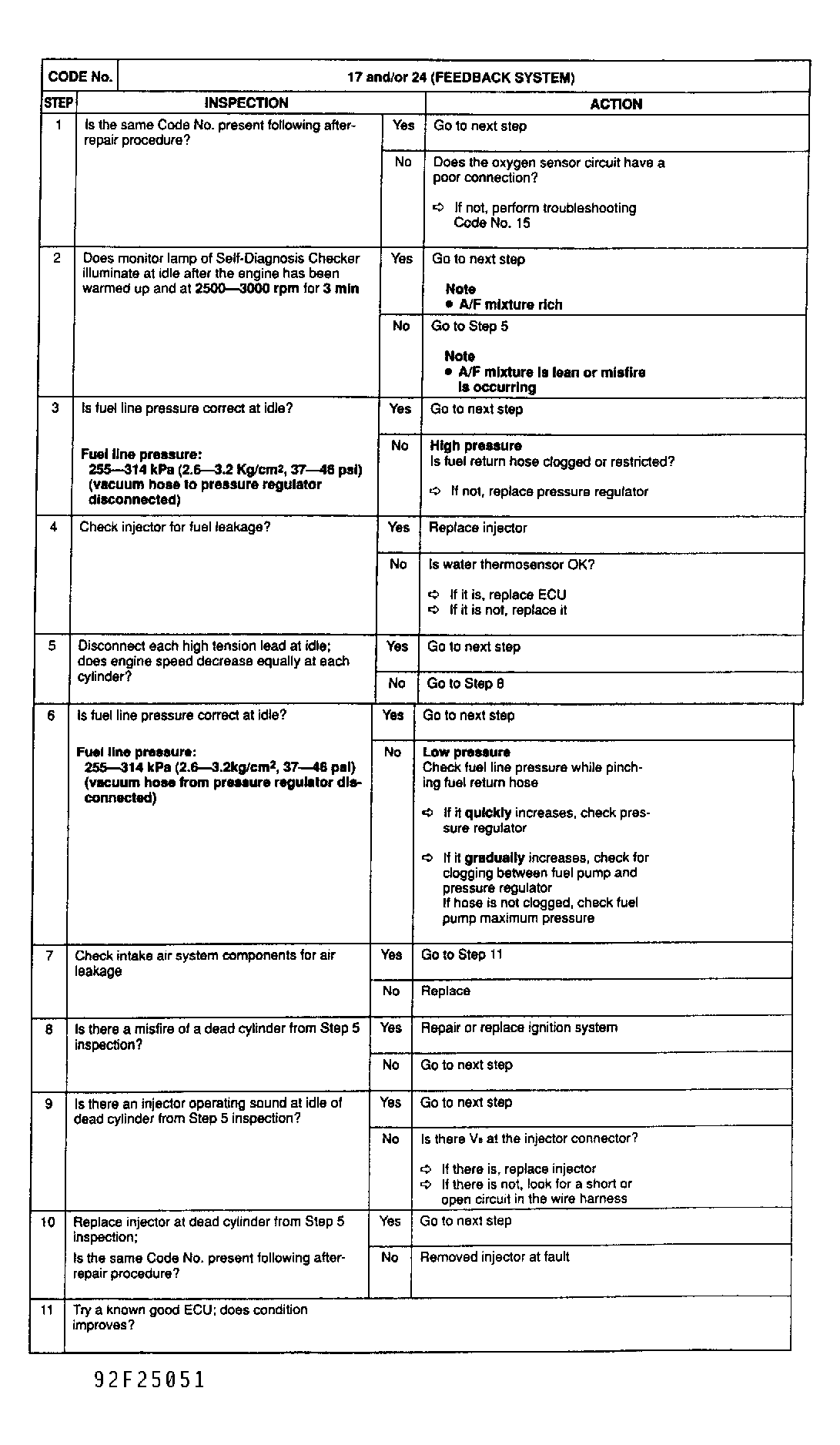

Fig 1: Trouble Code No. 17 & 24 Feedback System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
