Code 69: Coolant THERMOSENSOR

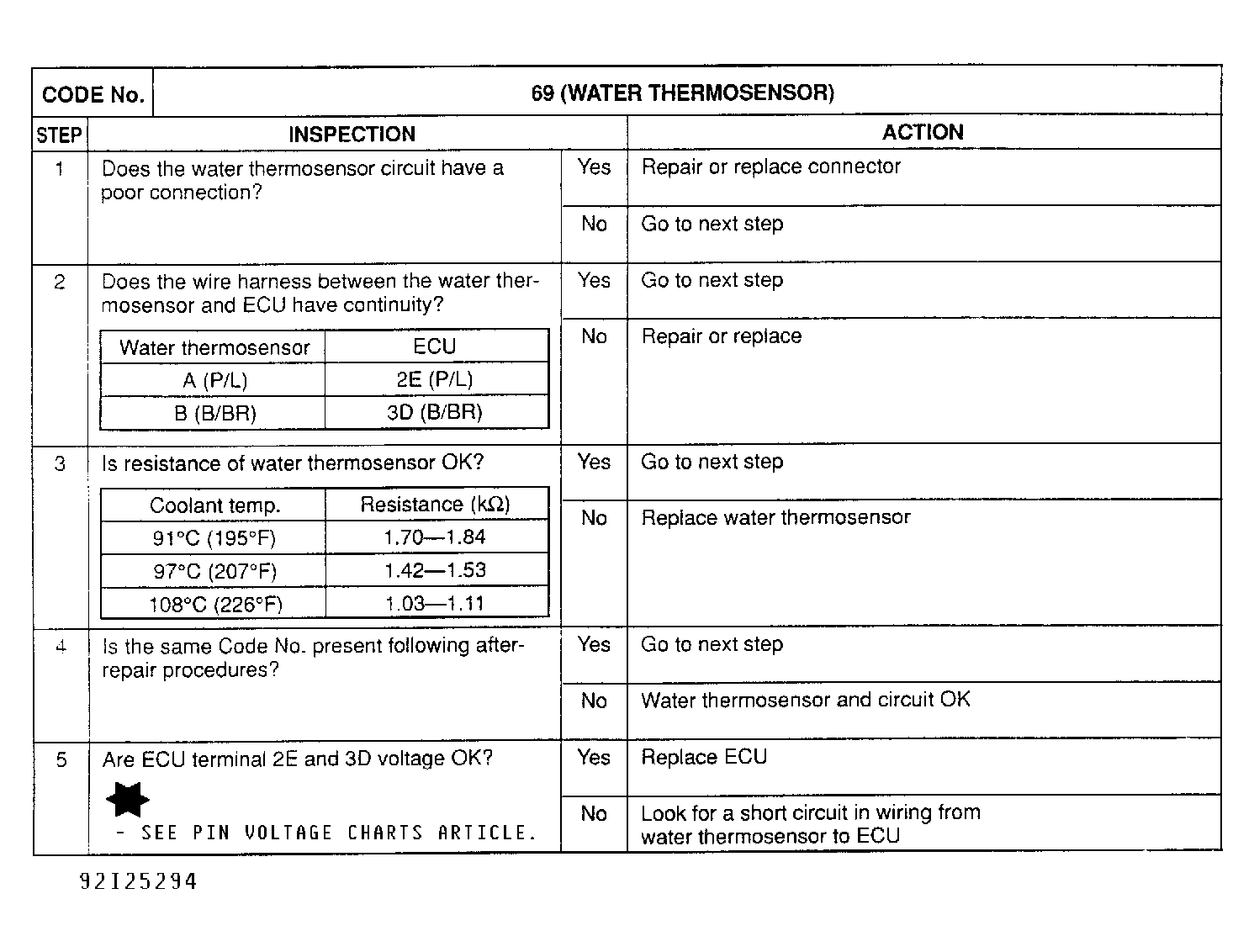

Fig 1: Trouble Code No. 69 Coolant Thermosensor
G92I25294Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Coolant Thermosensor
G92J25295Courtesy of MAZDA MOTORS CORP.
