Code 9: Coolant THERMOSENSOR

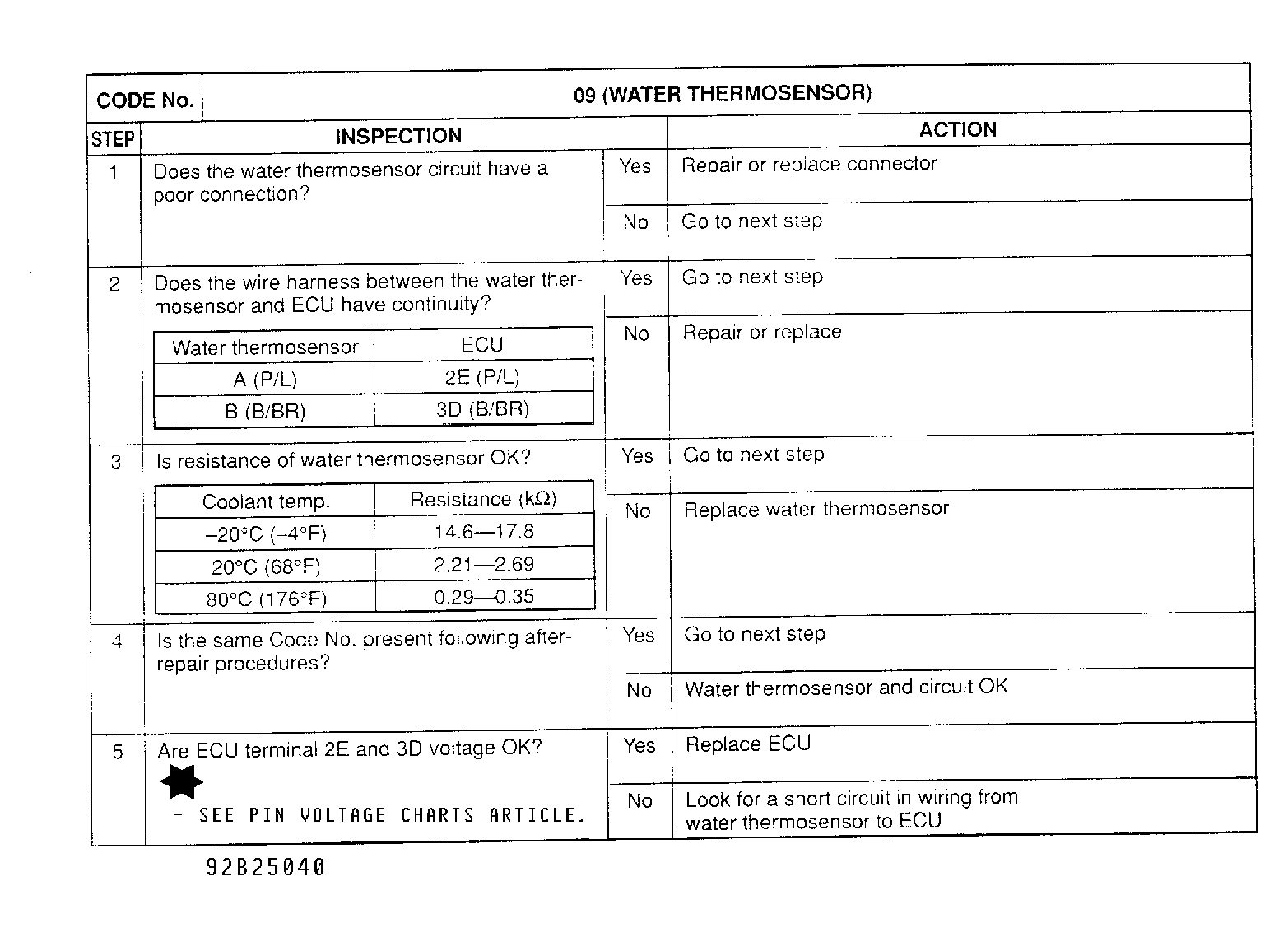

Fig 1: Trouble Code No. 9 Coolant Thermosensor
G92B25040Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Coolant Thermosensor
G92C25041Courtesy of MAZDA MOTORS CORP.
