Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block

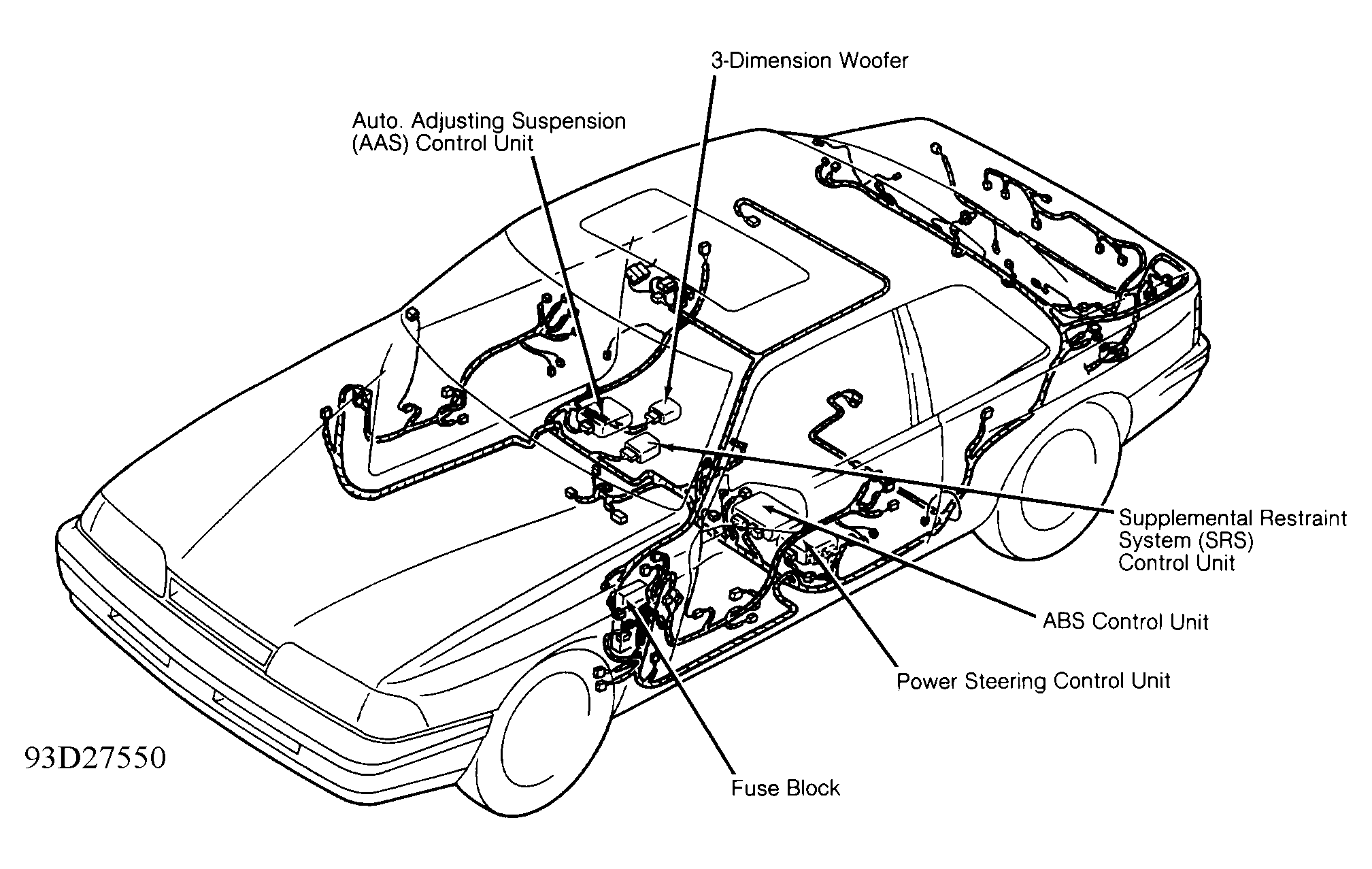

Internal View of Dash Behind left side of dash. See Figure .
Chassis Wiring Harness Behind left side of dash. See Figure .
Heater Circuit Breaker Behind left side of dash, in fuse block.
Main Fuse Block On left front corner of engine compartment, near battery.
Relay Block
Engine Compartment On center of fire wall.
Passenger Compartment Behind left side of dash.
