System Circuit Diagram

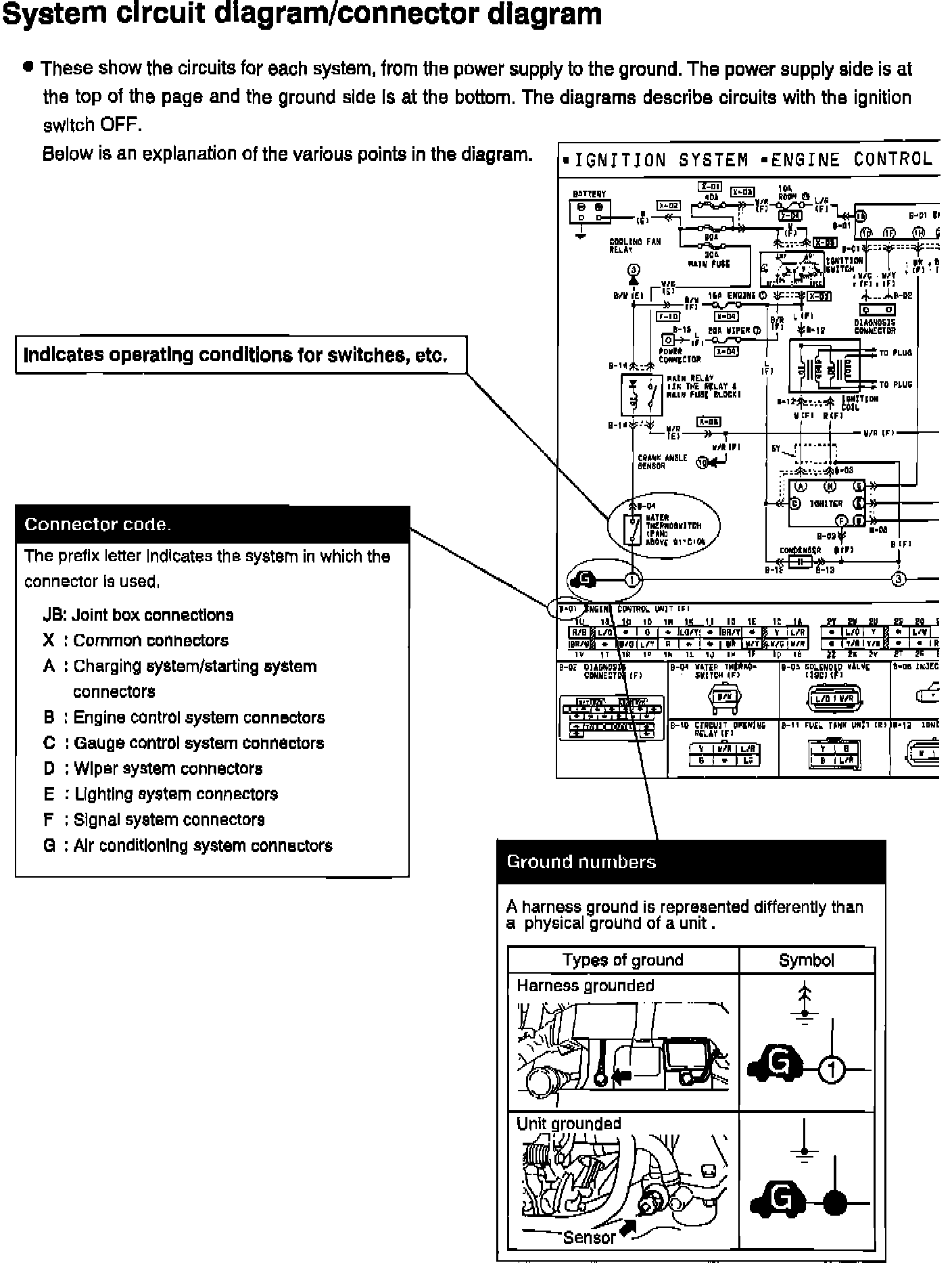

Reading Circuit/Connector Diagrams:

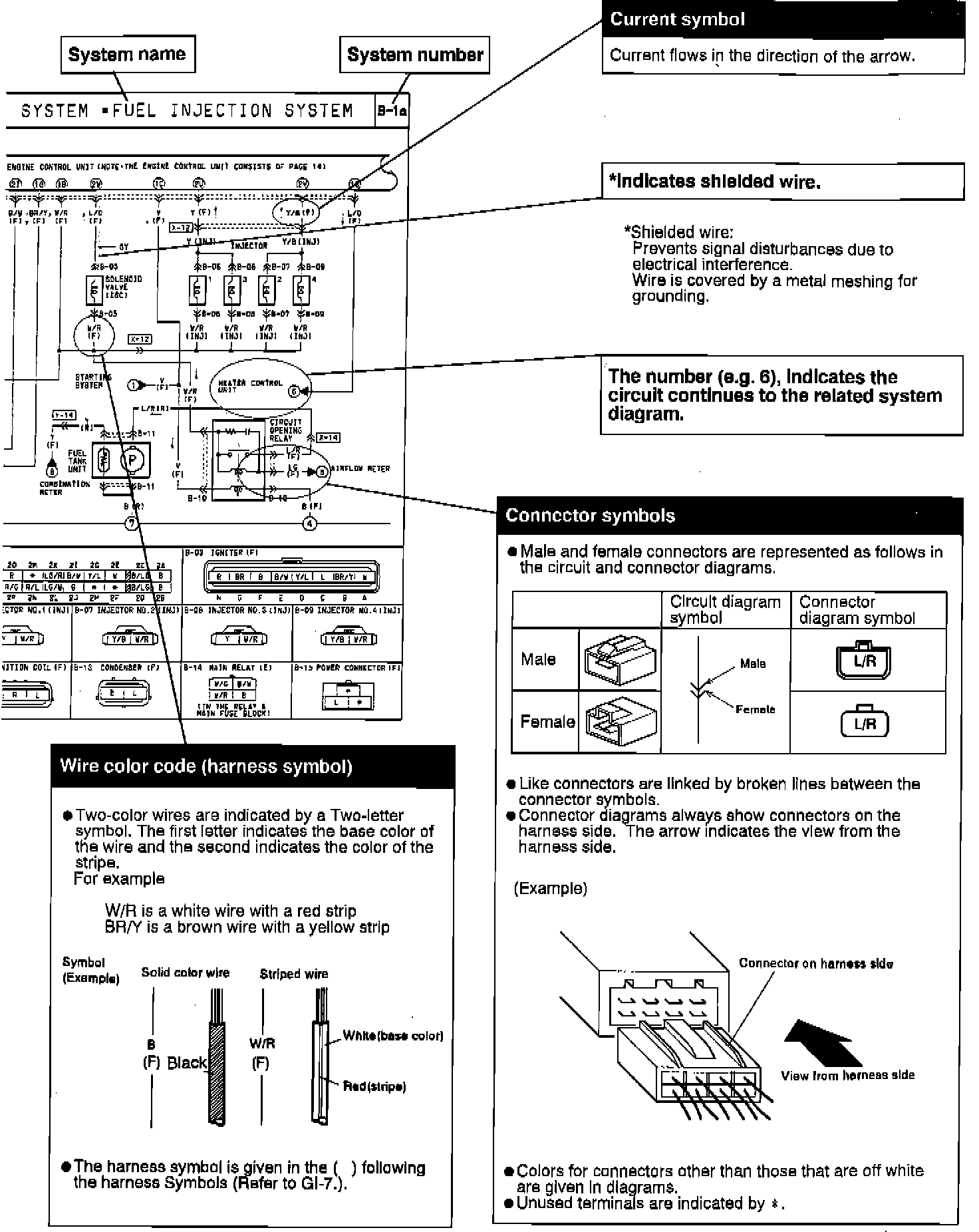

Reading Circuit/Connector Diagrams Cont.:
