Disassembly and Assembly

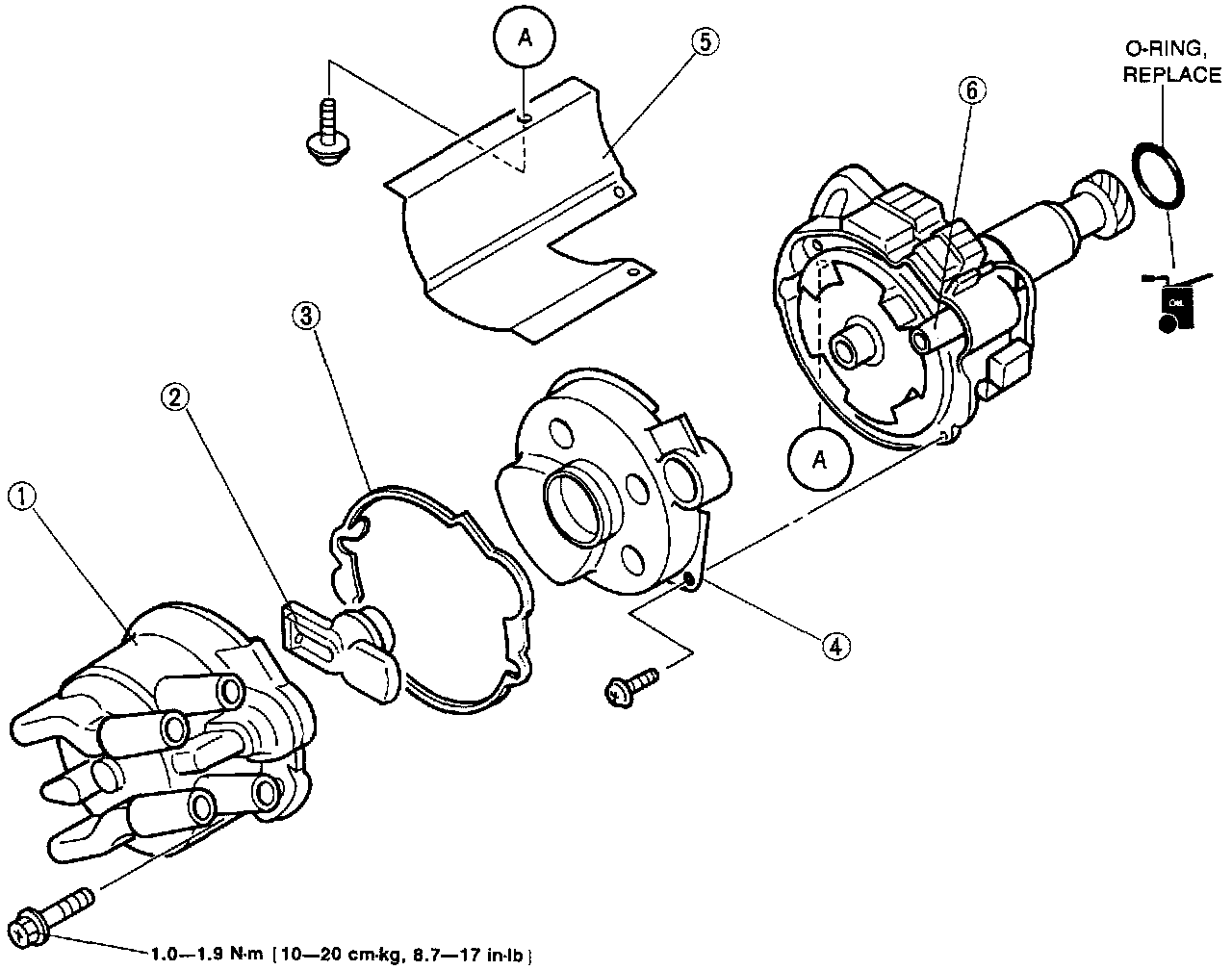

Distributor Assembly/Disassembly:

1. Disassemble in order shown.
2. Reassemble in reverse order.

COMPONENTS

1. Cap
2. Rotor
3. Packing
4. Cover
5. Insulator
6. Ignition coil
