Removal/ Installation

REMOVAL

Distributor R&R:

1. Remove components in order shown.
2. Install in reverse order.

INSTALLATION NOTE

Distributor Matching Marks:

1. Verify that No. 1 cylinder is at TDC and align distributor matching marks.
2. After installation, set ignition timing and tighten lock bolt to 14 - 18 ft lb (19 - 25 Nm).

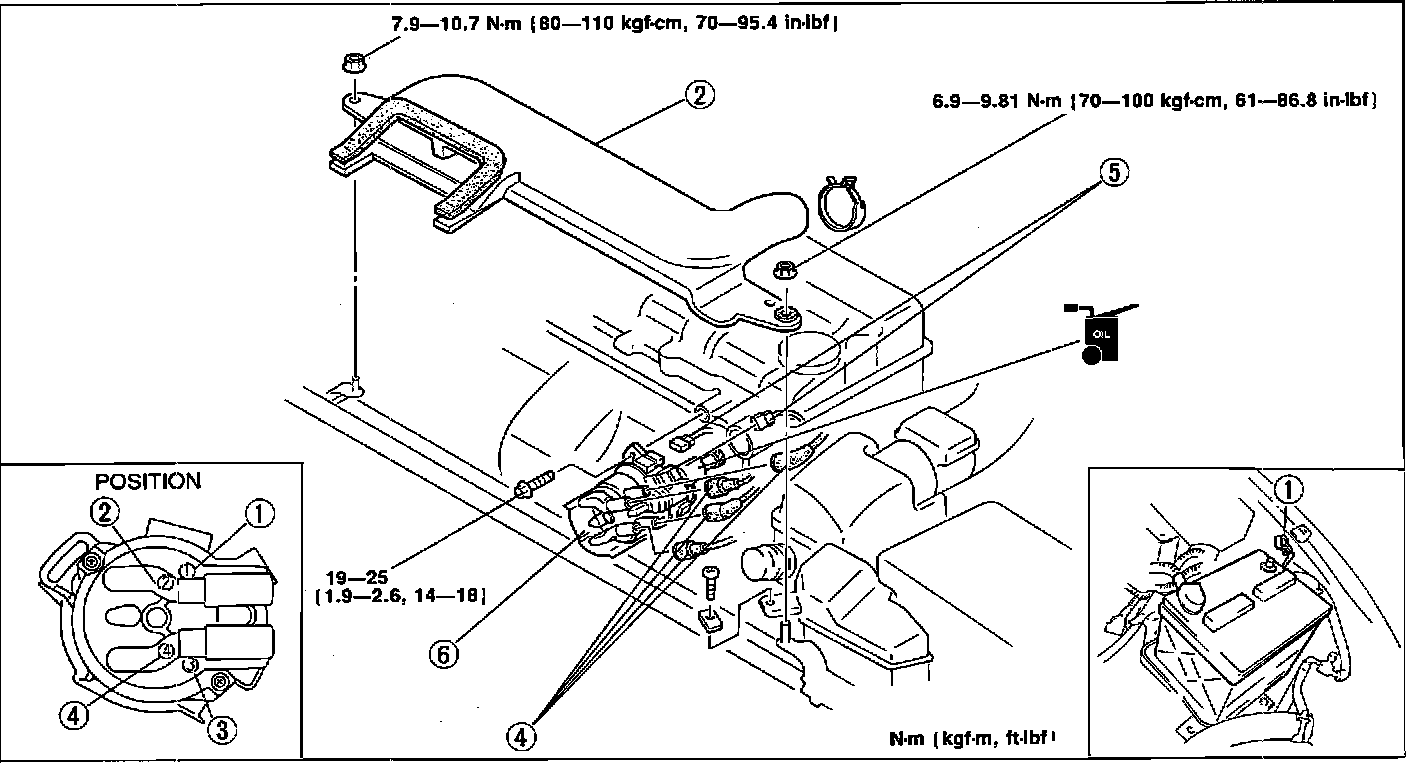

COMPONENTS
1. Battery cable
2. Fresh air duct
3. Air cleaner housing
4. High tension lead
5. Connector
6. Distributor
