Component Locations

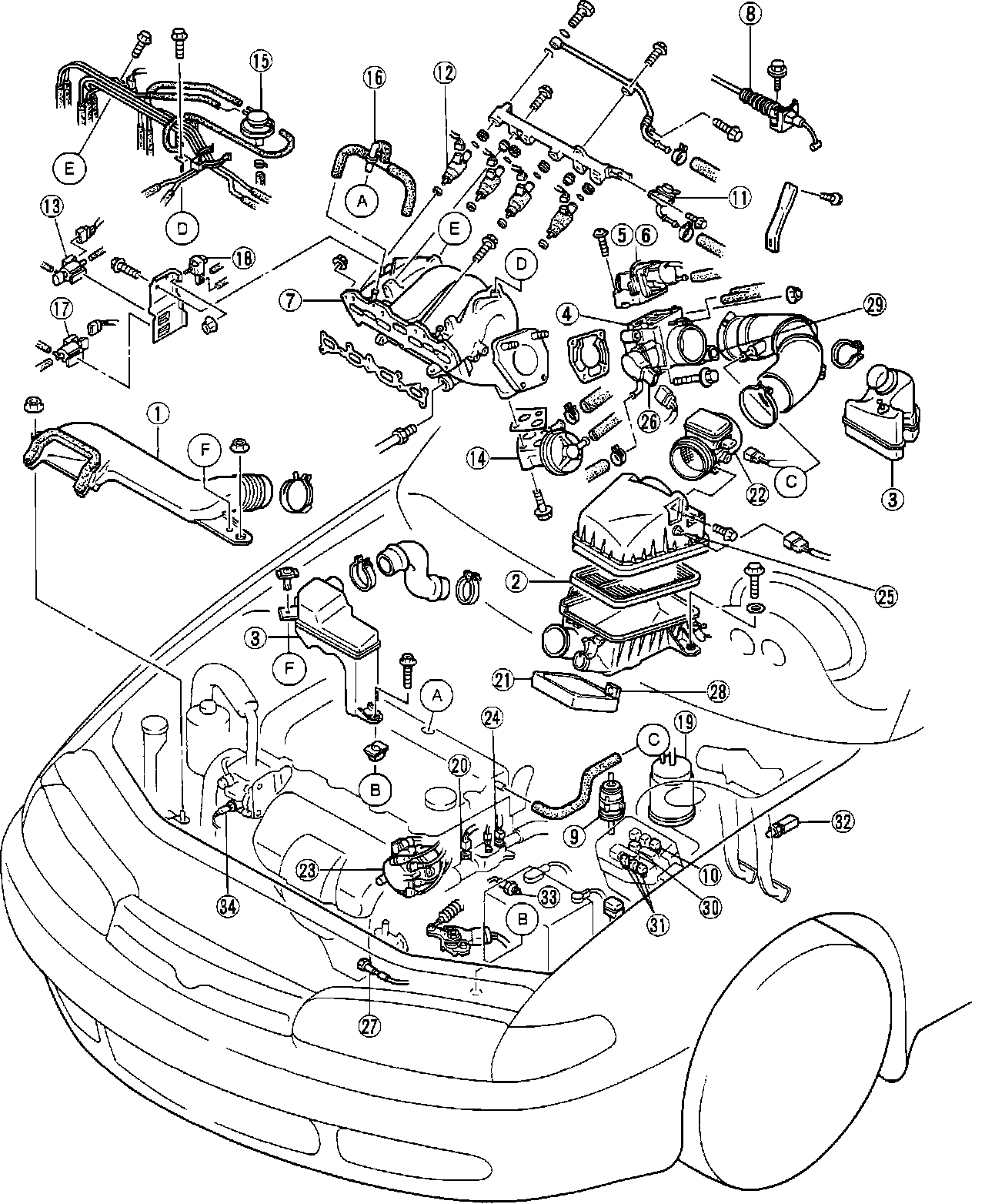

Component Locations:

1. Fresh Air Duct.
2. Air Cleaner Element.
3. Resonance Chamber.
4. Throttle Body.
5. Idle Air Control Valve.
6. Air Valve.
7. Intake Manifold.
8. Accelerator Cable.
9. Fuel Filter (High Pressure Side).
10. Fuel Pump Relay.
11. Pressure Regulator.
12. Injector.
13. Solenoid Valve (Pressure Regulator Control).
14. EGR Control Valve.
15. EGR Modulator Valve.
16. PCV Valve.
17. Solenoid Valve (EGR).
18. Solenoid Valve (Purge Control).
19. Charcoal Canister.
20. Engine Coolant Temperature Sensor (FAN).
21. Powertrain Control Module (PCME).
22. Air Flow Sensor.
23. Crankshaft Position Sensor.
24. Engine Coolant Temperature Sensor (CIS).
25. Intake Air Temperature Sensor.
26. Throttle Position Sensor.
27. Heated Oxygen Sensor.
28. Barometric Absolute Pressure Sensor (A/T).
29. Idle Switch.
30. Main Relay.
31. Coolant Fan Relays.
32. Clutch Switch (M/T).
