Part 1 of 3

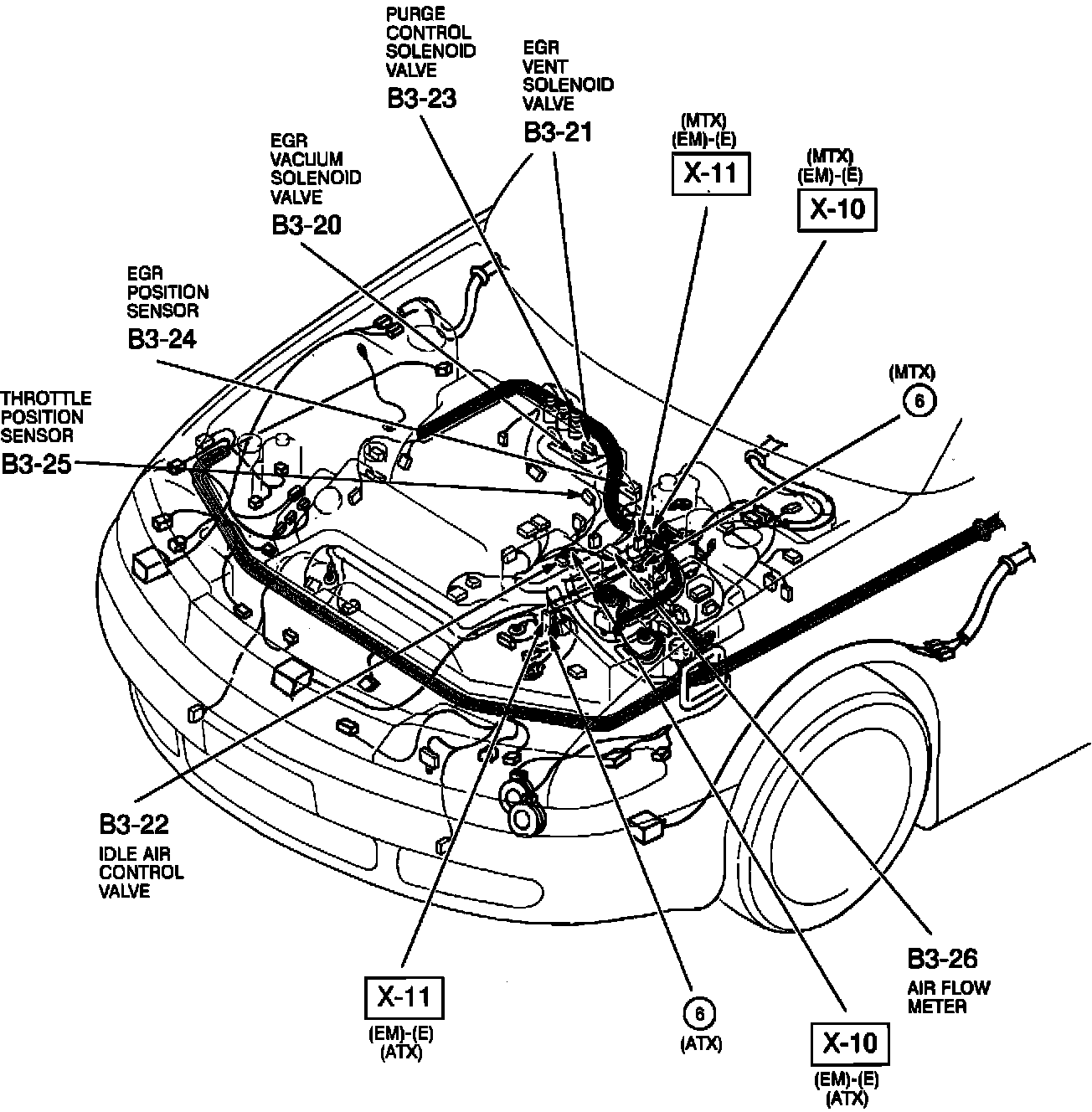

Component Location:

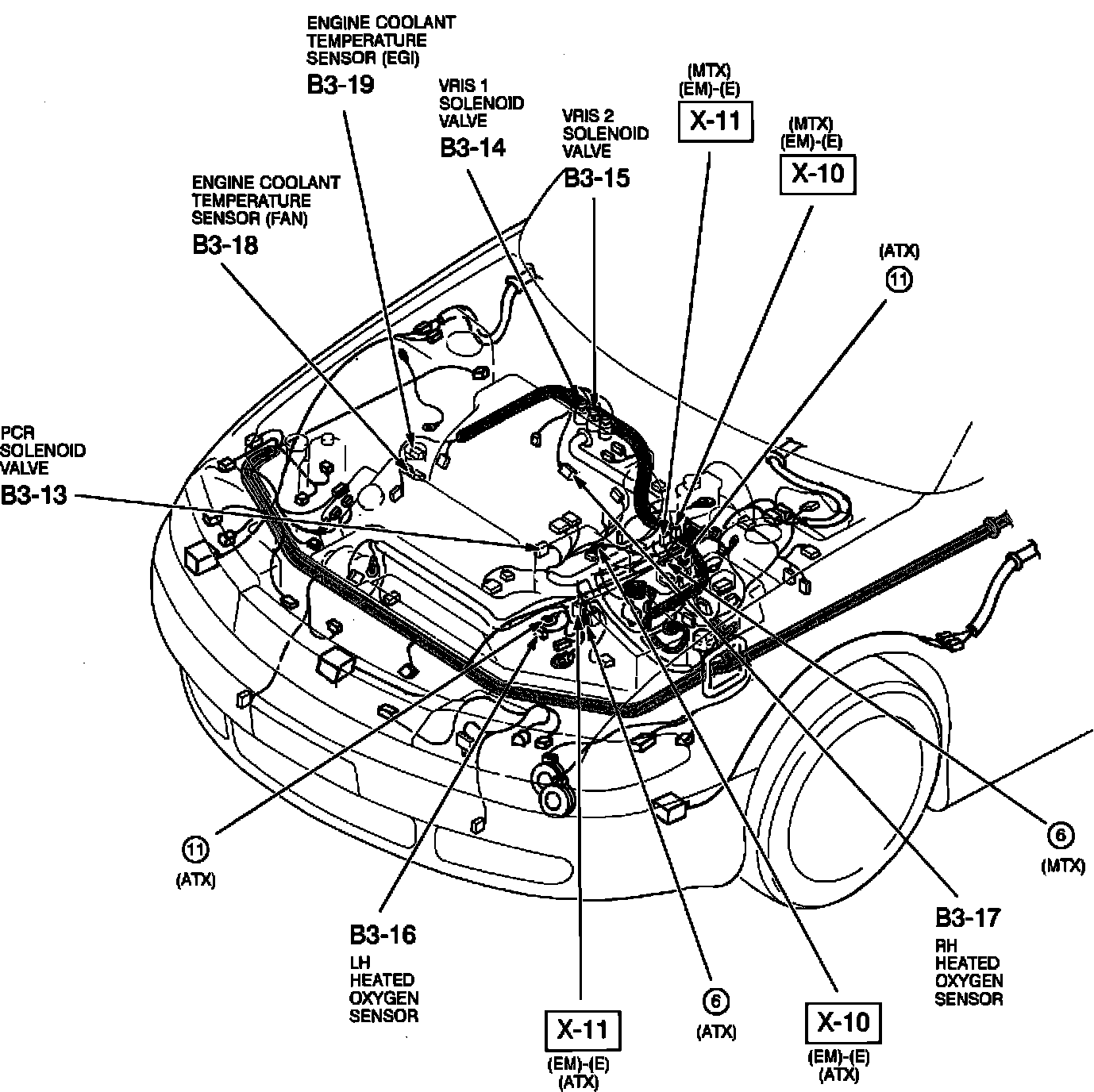

Component Location:



Component Location:



Component Location:



Component Location:



Component Location:
