Disassembly and Assembly

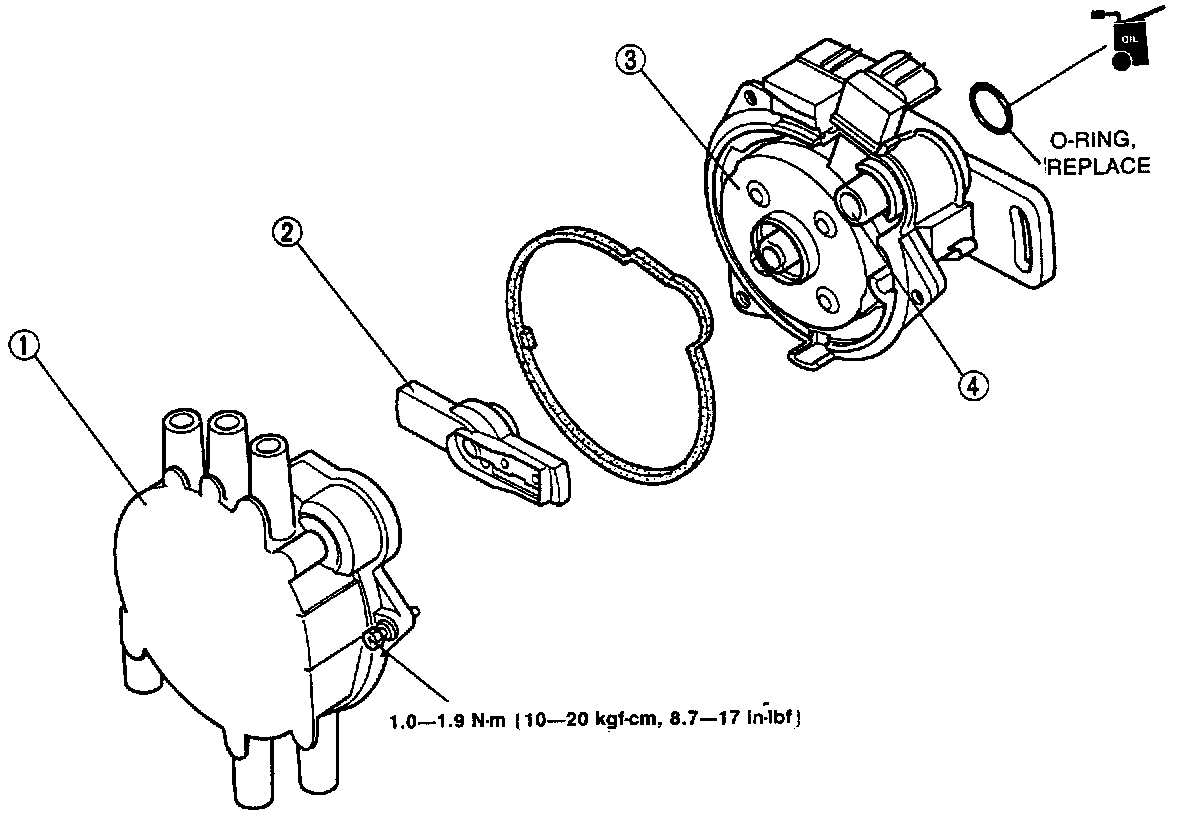

Distributor Assembly/Disassembly:






1. Disassemble in order shown.
2. Reassemble in reverse order.

COMPONENTS

1. Cap
2. Rotor
3. Igniter
4. Ignition coil
