Code 3: (G Signal - Distributor)

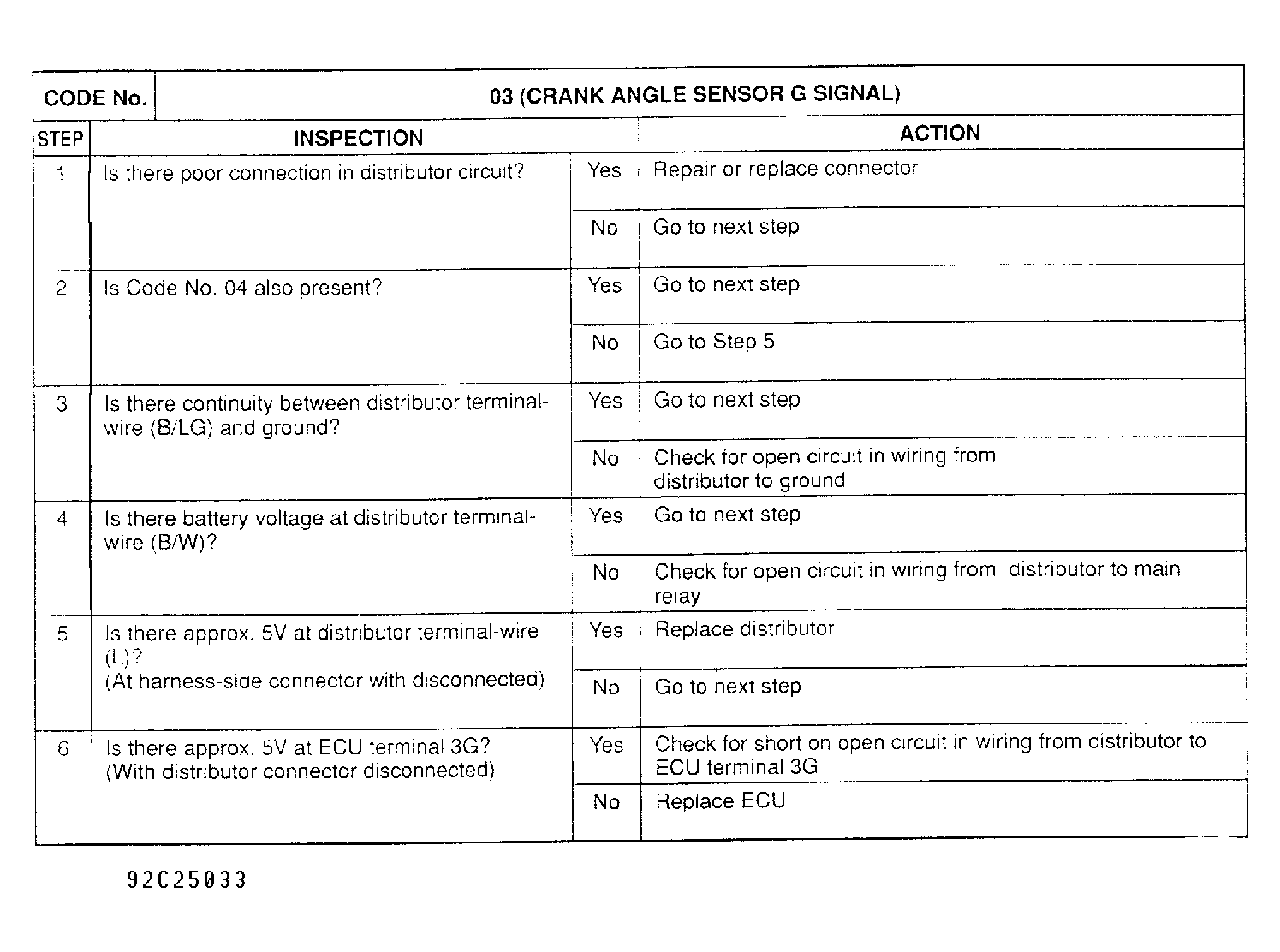

Fig 1: Trouble Code No. 3 - Diagnostic Flowchart
G92C25033Courtesy of MAZDA MOTORS CORP.

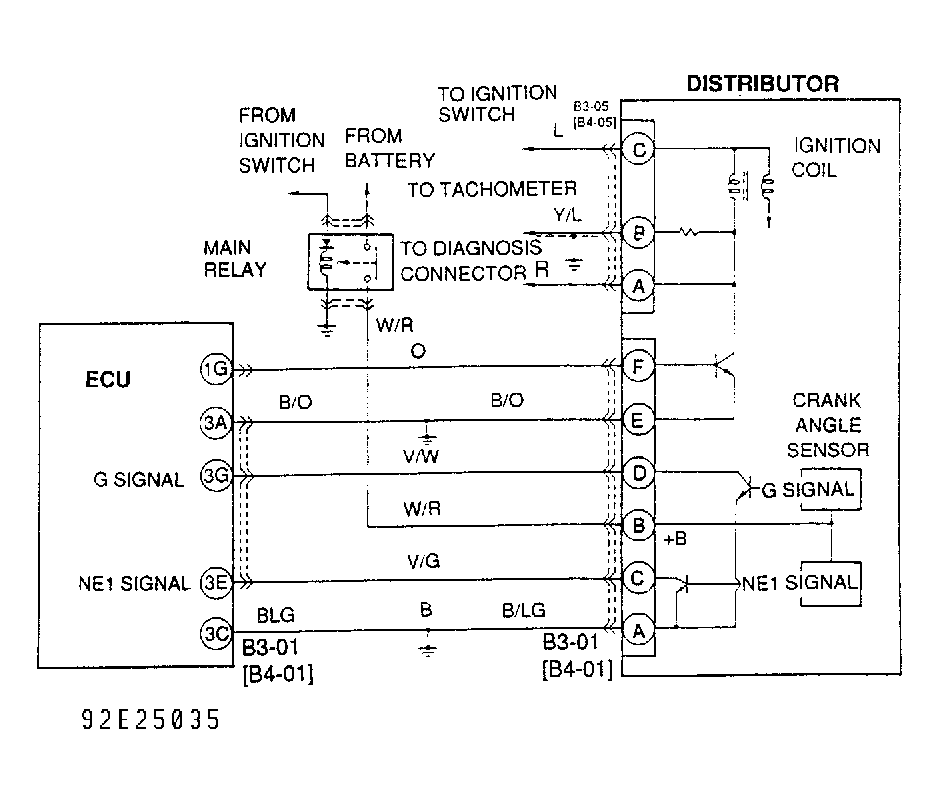

Fig 2: Trouble Code No. 3 - Schematic
G92E25035Courtesy of MAZDA MOTORS CORP.
