Code 69: (Coolant THERMOSENSOR)

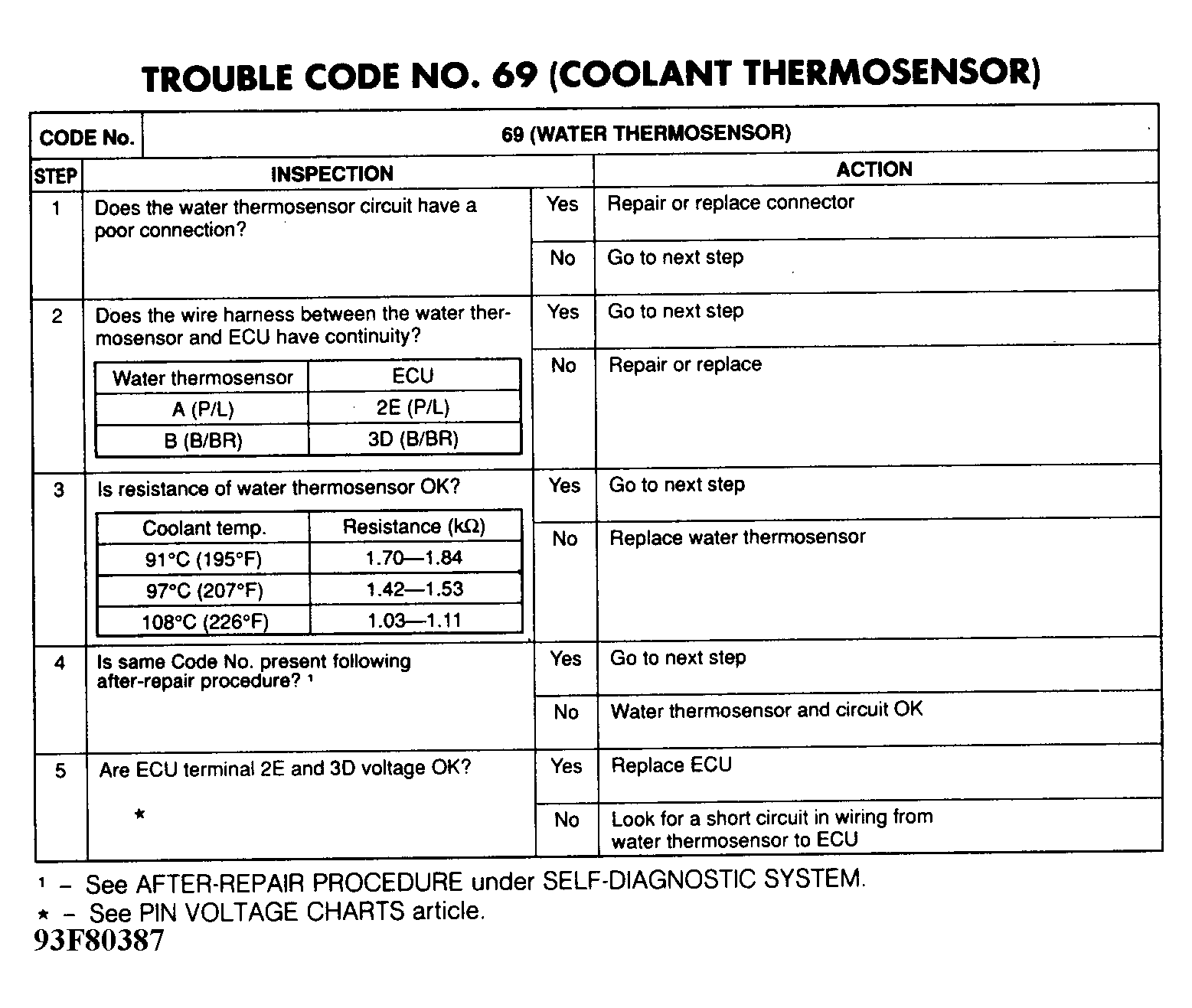

Fig 1: Trouble Code No. 69 - Diagnostic Flowchart
G93F80387Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 69 - Schematic
G92J25295Courtesy of MAZDA MOTORS CORP.
